Opening the Databases Administration Dashboard

You can edit agent settings for one or more SQL Server instances on the Databases > Administration dashboard.

In the navigation panel, under Homes, click Databases > SQL Server.
Click Settings and then click Administration.

Reviewing the Administration Settings

The Databases Administration dashboard allows settings options for collecting, storing, and displaying data, which apply to all the currently selected agents. Click a category of settings on the left (for example: Connection Details) to open a view containing related settings on the right.

The metrics defined under the Databases Administration dashboard apply to all of the agents that were selected before opening the Databases Administration dashboard. As a result, the same unit of measure and aggregation value for display are enforced for all currently selected agents.

The SQL Performance Investigator category allows you enable or disable SQL PI for the agents selected. In addition, you can also start or stop change tracking for the agents.

To view the full list of selected agents, click the Selected Agents button at the upper right corner of the screen. To change the list of agents to which the metrics will apply, exit the Databases Administration dashboard, select the requested agents and re-open the view.

If the settings vary between the selected agents (for example: one agent uses the measurement unit kilobyte, while another uses megabyte), the fields that contain non-identical values are displayed as empty and marked with an Inconsistent Values () icon.

Changes made to settings should be saved before selecting another category of settings.

Click Save changes at the bottom of the view.

Defining Connection Details

Use the Connection Details category to define global connection settings, which apply to all instances and hosts selected in the view. You can configure SQL Performance Investigator connectivity, enable user-defined collections, and set VMware connection details.

Defining the Connection Settings for the Monitored Instances

The Connection Details view contains a table that displays all the agents that were selected before entering the Databases Administration dashboard.

Click Settings, and then click Administration.
Click Connection Details, and then click Set credentials.
The Set dialog box used for editing the credentials of the selected instance appears.
On the Edit Credentials pane, provide port connection details. This field can be left empty, unless the TCP/IP connection port is not the default port: 1443.

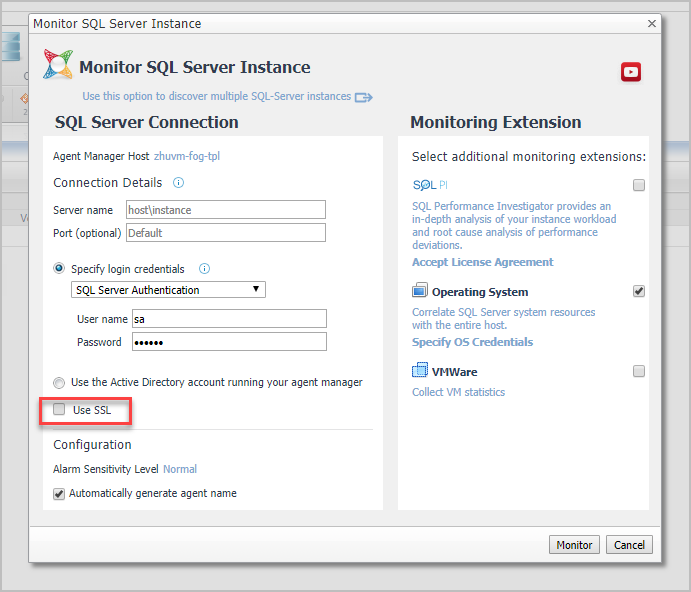

Figure 30. The Monitor SQL Server Instance Panel


Click Set.
Click Set UDC Credentials.
Click Set to return to the dialog box used for editing the instance’s credentials.
Click Edit.
Select the check box Enable collecting VMWare CPU allocation data.
At the end of this process, any connectivity issues are indicated by the Status column of the agents table. This column displays either the status Verified for the instances that connected successfully to the database, or a status that indicates failure of the connectivity verification process, and the reason for the failure (for example, Login failed for user “X”).
If some of the instances whose verification failed display a status of either Insufficient privileges, Click to Grant or Wrong sysdba Credentials, such instances should be granted privileges, by clicking the status and using one of the following methods:
Manually, using a script (by clicking View script, copying the text and using it to grant privileges
By clicking the button Grant privileges.
Click Save Changes.
The Applying Modified Settings progress bar appears.
Upon successful completion of this process, the Status column of the instance table displays the status Changes applied. For instances that failed verification, the status column indicates that changes cannot be saved if the validation did not complete successfully.
