Configuring Multiple Instances for Monitoring using Silent Installation

Navigate to Administration > Cartridges > Components for downloads.
mssql_cli_installer.groovy — a groovy script file that runs the silent installation. This file should be copied to the <FMS_HOME>/bin directory.
silent_installer_input_template.csv — a template file that should serve as the basis for inserting contents into the input CSV file. This file can be copied to any folder of your choice, if the path indicated by the <csv_instances_file_name> parameter (see below) points to the selected path. For details about the contents of this file, see Contents of the Input CSV File .
MSSQLPermissionsCheck.sql — this file contains the SQL that the user should run on the monitored instance to check permissions needed for monitoring
MSSQLPermissionsGrant.sql — this file contains the SQL that the user should run on the monitored instance in order to grant the instance the required permissions for monitoring.
Copy the mssql_cli_installer.groovy file to the <FMS_HOME>/bin directory.
Go to the command line and run the command: <FMS_HOME>/bin/fglcmd -srv <fms_host_name> -port <fms_url_port> -usr <fms_user_name> -pwd <fms_user_password> -cmd script:run -f mssql_cli_installer.groovy fglam_name <fglam_name> instances_file_name <csv_instances_file_name> lockbox_name <lockbox_name> lockbox_password <lockbox_password>
A file with the input file's name and _status suffix (for example: if the input file is named input, this file is named **input_new_-_**).
The _status file includes the name of the monitored Foglight for SQL Server agent, the result of the monitoring validation process — MONITORED, FAILED, or AGENT EXISTS — and the error message, in case the agent creation failed.
A file with input file's name and _new suffix (for example: if the input file is named input, this file is named input_status).

Contents of the Input CSV File

The input CSV file contains the following fields, which are used as columns in the resulting file:


The SQL Server host name.

The name of the SQL Server instance.

The SQL Server instance port. If no value is inserted in this field, the port number should match the instance name.

DB authentication type. The possible values are:

If this field is left empty, the Windows_Default_Account option is used.

The user name required for connecting to the database. If the Windows_Default_Account value was selected, this field can be left empty.

The password required for connecting to the database. If the Windows_Default_Account value was selected, this field can be left empty.

The type of database authentication of a user that can grant privileges to the regular database user. The possible values are:

If this field is left empty, the grant privileges script will not run.

The user name of a user that can grant privileges to the regular database user required only if the regular user does not have sufficient privileges.

The password of the database power user name mentioned above; required only if the regular user does not have sufficient privileges.

Specifies whether to create an Infrastructure Cartridge agent for the given host name; the possible values are either True or False.

OS authentication type; can have one of the following values:

If this field is left empty, the Windows_Default_Account value is used by default.

The user name required for connecting to the OS if the Windows_Default_Account option was selected. The user name should be compatible with the selected authentication type.

If the Windows_Default_Account value was selected, this field can be left empty.

The password of the OS user specified above; if the Windows_Default_Account option was selected, this field can be left empty.

When using this property, the 'OS User Name', 'OS Password', 'Private Key File Path' and 'Passphrase' properties will be ignored.

Specifies whether to monitor VMware metrics; the possible values are either True or False.

The VMware host name.

The VMware port. If no value is inserted in this field, the port number will use the default port number 443.

The user name required for connecting to the VMware.

The password of the VMware user specified above.

Indicates whether to enable PI; the possible values are True or False. Leaving this field empty indicates a False value.

A PI repository must be already installed and assigned to at least one agent on the monitoring FglAM.

Indicates whether the given monitored instance is in a mounted stand-by mode (data-guard); the possible values are True or False. Leaving this field empty indicates a False value.

The database group names you want to add the monitored instance to; Multiple group name should separate with ";". For example: groupA;groupB;groupC

When the group already exists, then the monitored instance will be attached to the existing group. When the group does not exist, then new group will be created under the default group "Database Groups".

Configuring the On Demand Data Port on the Agent Manager Concentrator

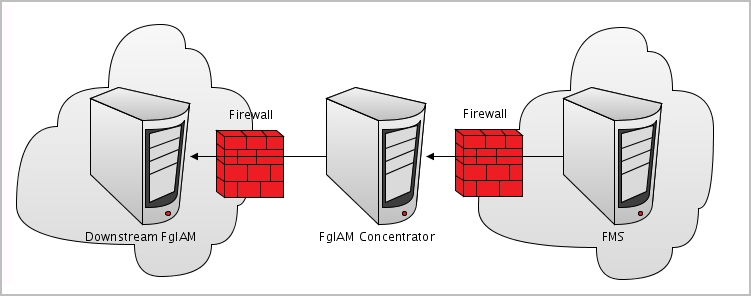

If a firewall is installed between the Management Server and the Agent Manager, a bidirectional On-Demand Data Port connection is not possible because On-Demand data requests require direct connection.

This issue can be resolved by creating an On-Demand Data Port on the concentrator — an Agent Manager instance that works similarly to an HTTP proxy. This On-Demand Data Port can be configured to accept On-Demand data requests from the Management Server and direct them to the Agent Manager instances (called downstream instances). For additional details about the concentrator, see Configuring an Agent Manager Instance as a Concentrator in the Agent Manager Installation Guide.

A concentrator agent, created specifically for Foglight for SQL Server, allows controlling the On-Demand Data Port so that the server is initialized (starts collecting data) when the agent starts, and stops when data retrieval by the agent ends. The agent, which the user creates manually, requires configuring the following parameters:

Each time the Foglight Management Server sends RMI request, the list of downstream hosts submitted by the concentrator agent is being searched, as follows:

Go to Dashboards > Administration > Agents > Agent Status.
Click Create Agent.
Select the agent type DB_SQL_Server_Concentrator.
Click Create.
Click Edit Properties.
Click Modify properties for this agent only.
Click Edit to edit the list of downstream Agent Managers.
Click Add Row.
IMPORTANT: When editing the properties of the Foglight Agent Manager concentrator (Dashboards > Administration > Agents > Agent Status), the name of the Foglight Agent Manager should be entered in the Downstream FglAMs section exactly as it appears in the topology, under Home > Agents > All agents > <Agent name> > RMI data > FglAM host property. The <Agent name> parameter refers to the Foglight for SQL Server agents that reside on the selected Foglight Agent Manager.
Repeat Step 7 to Step 8 as many times as required.
Click Save Changes.
Click Save at the lower right corner of the screen.
Click Back to Agent Status.
Click Activate.
Click OK to complete the process.

In an environment that includes a Foglight Agent Manager concentrator, when upgrading the environment where the concentrator does not contain any regular agents, the concentrator is not upgraded. Therefore, after the upgrade process takes place the Foglight Agent Manager concentrator has to be deployed manually.



Using Foglight for SQL Server

Foglight for SQL Server monitors the SQL Server database activity by connecting to and querying the SQL Server database. The agents provided monitor the SQL Server database system. The dashboards included with the cartridge provide a visual representation of the status of the major components of the SQL Server agents. They allow you to determine any potential bottleneck in database performance.
