Identifying top consumers of managed server resources

A managed server is a physical system managed by the PowerVM Hypervisor software layer. PowerVM Hypervisor divides physical system resources into isolated logical partitions. A managed server typically has multiple logical PowerVM partitions. You can monitor the performance of managed servers when you select the Managed Server tile on the Infrastructure Environment dashboard.

The Summary - All Managed Servers view identifies the top five servers with available processor, memory, and disk resources for each of theses categories. This view appears in the Selected Service PowerVM view when you select All Managed Server in the Managed Server view on the left. It recognizes the five managed servers with the lowest utilization of processor, memory, disk, and network resources that are allocated to them. Use it to quickly locate a managed server with available resources that can be allocated to new or existing logical partitions, when needed.

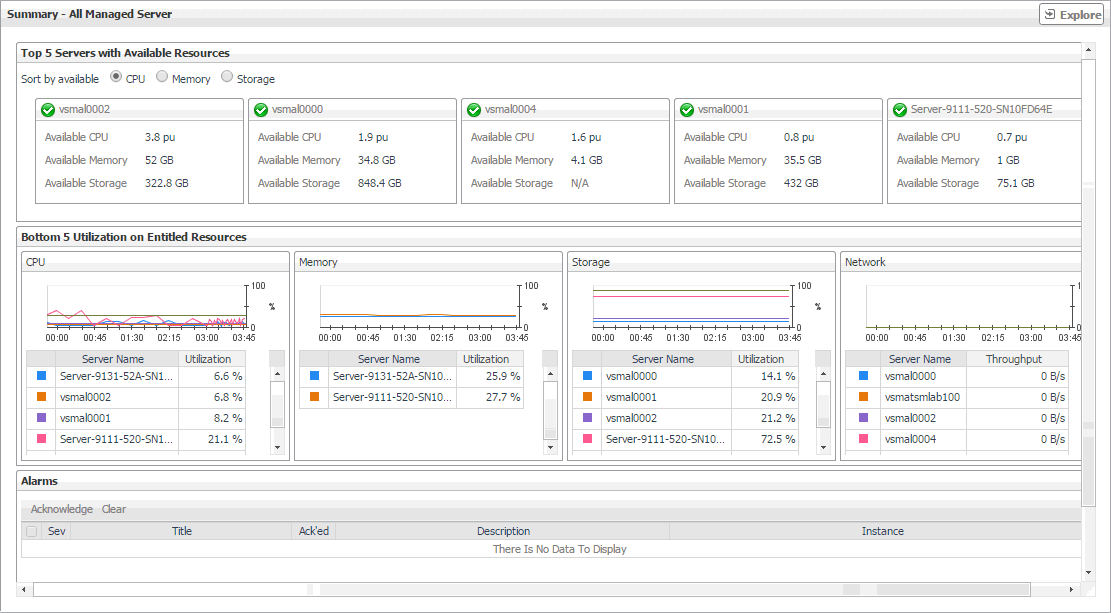

Figure 19. Summary - All Managed Server view

The managed servers with the highest amounts of available processor, memory, and disk resources.

Select CPU, Memory, or Storage, to sort the list.

The number of processing units that are allocated to all managed servers, and are available for use.

The amount of memory in GB that is allocated to all managed servers, and is currently available for use.

The amount of disk storage in GB that is allocated to all managed servers, and is currently available for use.

The managed servers with the lowest use of allocated processor, memory, and disk resources.

The percentage of the allocated managed server processor resources that are in use over the selected time range.

The managed server name.

The percentage of the allocated managed server processor resources that are currently in use.

The percentage of the allocated managed server memory resources that are in use over the selected time range.

The managed server name.

The percentage of the allocated managed server memory resources that are currently in use.

The percentage of the allocated managed server disk resources that are in use over the selected time range.

The managed server name.

The percentage of the allocated managed server disk resources that are currently in use.

The rate at which the managed server transfers data to or from the network during the selected time range.

The managed server name.

The current rate at which the managed server transfers data to or from the network.

For more information, see Observing alarms.

Viewing individual managed server details

The managed server Summary view displays the resource utilization for the selected managed server. This view shows the levels of processor, memory, disk, and network usage. It also identifies the elements of your PowerVM infrastructure associated with the selected managed server, such as the HMC, VIOS, logical partitions, and others.

This view appears in the Selected Service PowerVM view when you select the Managed Server tile, and then click a managed server in the Managed Server view on the left. Use it to review the trends in usage of the Managed server's system resources, and to review any generated alarms, if they exist. For example, high peaks in the processor utilization chart could result in performance degradation and should be investigated.

CPU



Entitlement





Shared

The number of processing units that are allocated to the managed server, and are currently in use in shared mode by the associated PowerVM partitions.





Dedicated

The number of processing units that are allocated to the managed server, and are currently in use in dedicated mode by the associated PowerVM partitions.





Available

The number of processing units that are allocated to the managed server, and are available for use.



Utilization

The percentage of the managed server processor resources that are in use over the selected time range.

Memory



Entitlement





Shared

The amount of memory that is allocated to the managed server, and is currently in use in shared mode by the associated PowerVM partitions.





Dedicated

The amount of memory that is allocated to the managed server, and is currently in use in dedicated mode by the associated PowerVM partitions.





Hypervisor Used

The amount of memory that is allocated to the managed server, and is currently in use by the PowerVM Hypervisor software layer.





Available

The amount of memory that is allocated to the managed server, and is available for use.



Utilization

The percentage of the managed server memory resources that are in use over the selected time range.

Storage



Entitlement





Entitled

The amount of disk space that is allocated to the managed server, and is currently in use by the associated PowerVM partitions.





Available

The amount of disk space that is allocated to the managed server, and is available for use.



Utilization

The percentage of the managed server disk space that is in use over the selected time range.

Network



Throughput





Send Rate

The rate at which the managed server transfers data to the network during the selected time range.





Receive Rate

The rate at which the managed server transfers data from the network during the selected time range.



Error Rate







Send Error Rate

The rate at which the managed server encounters errors while transferring data to the network during the selected time range.





Receive Error Rate

The rate at which the managed server encounters errors while transferring data from the network during the selected time range.

Related Info



HMC

The name of the HMC instance to which the managed server belongs, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



VIOS

The names of the virtual I/O servers associated with this managed server, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Partitions

The number of PowerVM partitions that use the managed server’s resources, followed by the numbers of partitions in each severity state: Normal , Warning , Critical , and Fatal .



Global Proc Pool

The name of the global processor pool associated with this managed server, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Shared Memory Pool

The name of the global memory pool associated with this managed server, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Slot

The slot number of the managed server in your monitored system.

Alarms

For more information, see Observing alarms.

Identifying top consumers of PowerVM partition resources

A PowerVM® partition encapsulates operating system and application components. It runs inside a physical server and is dedicated a share of its physical resources. PowerVM partitions are managed by the PowerVM Hypervisor software. You can monitor the performance of PowerVM partitions when you select the Partition tile on the Infrastructure Environment dashboard.

The Summary - All Partition view identifies five partitions with the highest processor, memory, and disk entitlement, the highest processor, memory, and disk utilization, and the highest network throughput. This view appears in the Selected Service PowerVM view when you select All Partition in the Partition view on the left. Use it to quickly locate a PowerVM partition system with available resources that can be put to specific use in your integrated environment.

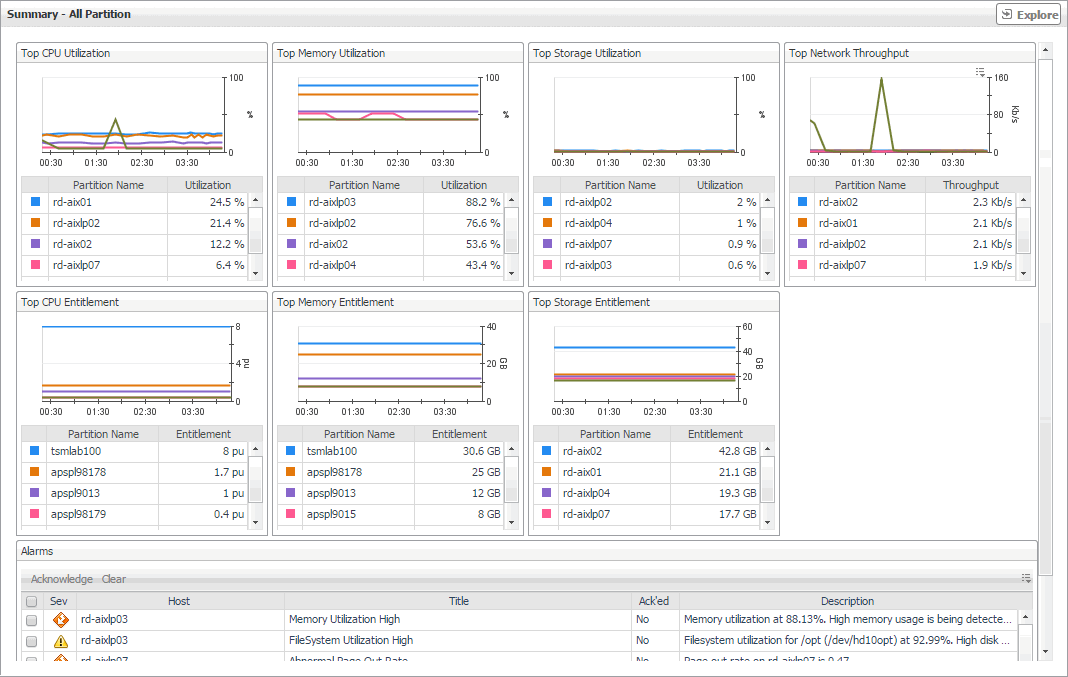

Figure 21. Summary - All Partition view

Top CPU Utilization

The PowerVM partitions consuming the most of the processor resources allocated to them.



%

The percentage of all processing units that are allocated to the PowerVM partition and are in use over the selected time range.



Partition Name

The PowerVM partition name.



Utilization

The percentage of all processing units that are allocated to the PowerVM partition and are currently in use.

Top Memory Utilization

The PowerVM partitions consuming the most of the memory resources allocated to them.



%

The percentage of memory resources that is allocated to the PowerVM partition and is in use over the selected time range.



Partition Name

The PowerVM partition name.



Utilization

The percentage of the memory resources that is allocated to the PowerVM partition and is currently in use.

Top Storage Utilization

The PowerVM partitions consuming the most of the disk space allocated to them.



%

The percentage of disk space that is allocated to the PowerVM partition and is in use over the selected time range.



Partition Name

The PowerVM partition name.



Utilization

The percentage of the memory resources that is allocated to the PowerVM partition and is currently in use.

Top Network Throughput

The PowerVM partitions with the highest network throughput.



b/s

The rate at which the PowerVM partition transfers data to or from the network during the selected time range.



Partition Name

The PowerVM partition name.



Throughput

The current rate at which the PowerVM partition transfers data to or from the network.

Top CPU Entitlement

The PowerVM partitions with the highest numbers of allocated processing units.



pu

The number of processing units allocated to the PowerVM partition over the selected time range.



Partition Name

The PowerVM partition name.



Entitlement

The number of processing units allocated to the PowerVM partition.

Top Memory Entitlement

The PowerVM partitions with the highest amounts of allocated memory resources.



GB/MB

The amount of memory allocated to the PowerVM partition over the selected time range.



Partition Name

The PowerVM partition name.



Entitlement

The amount of memory allocated to the PowerVM partition.

Top Storage Entitlement

The PowerVM partitions with the highest amounts of allocated disk space.



GB/MB

The amount of disk space allocated to the PowerVM partition over the selected time range.



Partition Name

The PowerVM partition name.



Entitlement

The amount of disk space allocated to the PowerVM partition.

Alarms

For more information, see Observing alarms.

Viewing individual PowerVM partition details

The PowerVM® Partition Summary view displays the resource utilization for the selected partition. This view shows the levels of processor, memory, disk, and network usage. It also identifies the elements of your PowerVM infrastructure associated with the selected PowerVM partition, such as the HMC, managed server, VIOS, and others. This view appears in the Selected Service PowerVM view when you select the Partition tile, and a PowerVM partition in the Selected Service PowerVM view, on the left.

Use this view to review the trends in usage of the partition's system resources, and to review any generated alarms, if they exist. For example, high peaks in the processor usage chart could cause performance degradation and should be investigated.

CPU



Alarm state

The alarm state of the processor resources allocated to the PowerVM partition.



Alarms

The counts of alarms generated against the processor resources allocated to the PowerVM partition, given for each severity state: Warning, Critical, and Fatal.



History

A color-coded bar, representing the alarm state of the processor resources allocated to the PowerVM partition over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.



CPU Utilization

The percentage of all processing units that are allocated to the PowerVM partition and are currently in use.



Baseline

An envelope indicating the expected processor utilization range based on historical data.



Run Queue Length

The number of processes that are either running or waiting in the queue. A high number of processes in the run queue means the processor is busy. A consistently high number can indicate that the PowerVM partition needs additional processor resources.



CPU Usage by Process

Click this link to display the Processes dashboard and find out more about the processor and memory usage by each process running on this PowerVM partition. For more information about this dashboard, see the Foglight™ for Infrastructure User and Reference Guide.

Memory



Alarm state

The alarm state of the memory resources allocated to the PowerVM partition.



Alarms

The counts of alarms generated against the memory resources allocated to the PowerVM partition, given for each severity state: Warning, Critical, and Fatal.



History

A color-coded bar, representing the alarm state of the memory resources allocated to the PowerVM partition over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.



Memory Utilization

The percentage of all memory resources that are allocated to the PowerVM partition and are currently in use.



Baseline

An envelope indicating the expected memory utilization range based on historical data.



Memory Usage by Process

Click this link to display the Processes dashboard and find out more about the processor and memory usage by each process running on this PowerVM partition. For more information about this dashboard, see the Foglight for Infrastructure User and Reference Guide.

Storage



Alarm state

The alarm state of the disk resources allocated to the PowerVM partition.



Alarms

The counts of alarms generated against the disk resources allocated to the PowerVM partition, given for each severity state: Warning, Critical, and Fatal.



History

A color-coded bar, representing the alarm state of the disk resources allocated to the PowerVM partition over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.



Disk Utilization

The percentage of all disk resources that are allocated to the PowerVM partition and are currently in use.



Baseline

An envelope indicating the expected disk utilization range based on historical data.



Disk Transfer Rate

The current rate at which the PowerVM partition transfers data to or from the disk.

Network



Alarm state

The alarm state of the network interfaces allocated to the PowerVM partition.



Alarms

The counts of alarms generated against the network interfaces allocated to the PowerVM partition, given for each severity state: Warning, Critical, and Fatal.



History

A color-coded bar, representing the alarm state of the network interfaces allocated to the PowerVM partition over the selected time range. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal State.



Network Utilization

The percentage of the network resources that are allocated to the PowerVM partition and are currently in use.



Baseline

An envelope indicating the expected network utilization range based on historical data.

Related Info



HMC

The name of the HMC to which the PowerVM partition belongs, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Managed Server

The name of the managed server associated with this PowerVM partition, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



VIOS

The name of the virtual I/O server associated with this PowerVM partition, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Proc Pool

The name of the processor pool associated with this PowerVM partition, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Shared Memory Pool

The name of the global memory pool associated with this PowerVM partition, preceded by its alarm state: Normal , Warning , Critical , or Fatal .



Slot

The slot number dedicated to the PowerVM partition in your monitored system.

Other Alarms

For more information, see Observing alarms.
