Foglight APM for Real User Experience 5.9.10 - Installation and Setup Guide

Table of Contents

Installation overview

Introducing the monitoring architecture

Software components

Foglight Management Server Archiver Sniffer Browser Instrumentation Relayer Archiver databases

Ports used by Foglight APM

Appliance types Typical monitoring solutions

Monitoring physical networks Monitoring virtual networks Mixing physical and virtual appliances Adding Foglight APM to an existing Foglight installation

Installing physical appliances

Before you begin

Physical appliance components Other network components required Anatomy of an appliance

Planning an installation of physical appliances

Public network switch Private network switch for the capture subnet Network taps

Monitoring individual web servers Monitoring web server farms

Network information required for physical appliances

Installing appliances on a network rack Connecting appliances to the network Connecting Sniffers

Connecting Sniffers to network taps Connecting Sniffers to Archivers

Connecting one Sniffer to one Archiver Connecting Sniffers to Archivers

Starting physical appliances and configuring remote access Launching the Console Program remotely with DRAC

Installing virtual appliances

Monitoring multiple ESXi hosts

Monitoring multiple hosts through a centralized Sniffer Monitoring multiple hosts using local Sniffers Mixing virtual and physical appliances Scaling out a multiple host configuration Installing virtual appliances to monitor multiple hosts

Monitoring a single ESXi host

All-on-one-host variation Scalability Installing virtual appliances to monitor a single host

Before you begin

Software environment Foglight APM OVF templates Required port groups RAID configuration Network information for virtual appliances

Creating port groups on virtual switches

Configuring port groups on a distributed switch

Creating a Monitoring Network port group required by Sniffers Creating the Capture Network port group required by Sniffers and Archivers Creating a virtual adapter for the Capture Network port group

Configuring port groups on a standard switch

Deploying Foglight virtual templates Deploying the Foglight virtual Sniffer template Connecting virtual appliances on different servers Powering on virtual appliances

Setting up appliances

Logging in to the Console Program Enabling SSH and changing the default password Setting the date and time Specifying network settings Exiting the Console Program Launching Foglight Configuring software components

Working with appliance-hosted Management Servers

Configuring Management Server settings Configuring the Management Server to work with SSL keys

Creating a new SSL key for Foglight HTTPS access Using an existing SSL key for Foglight HTTPS access Configuring Foglight for secure remote LDAP access

Restricted file access Transferring support files from a physical appliance

Transferring files to Windows systems Transferring files to Linux systems

Troubleshooting appliance-hosted Management Servers Differences from working with server-hosted Management Servers

Setting up server-hosted Management Servers

Server requirements

Downloading and installing 256-bit encryption files Disabling the NetBIOS over TCP/IP setting

Installing Foglight APM cartridges Communicating with Sniffer and Archiver appliances Configuring Federated Children Enabling High Availability mode

Maintaining appliances

Launching the Console Program

Accessing physical appliances using SSH on Microsoft Windows systems Accessing physical appliances using SSH on UNIX systems

List of tasks available from the main menu Managing user accounts

Adding new user accounts Modifying user accounts and enabling SSH Removing user accounts

Modifying the time zone, time, or date Modifying the list of NTP servers for physical appliances Modifying network settings Shutting down appliances Rebooting appliances Updating software

Upgrading from a PKG file Displaying the upgrade log

Testing network settings Stopping and starting processes Reviewing the appliance system details and health status Reviewing the status of NIC devices Verifying monitored traffic by port Purging and resetting Archiver databases Creating support bundles Creating TCP dump files Accessing the home directory Creating Dell report archives on physical appliances

Backing up and restoring physical appliances

Setting up appliances as NetVault clients

Enabling an appliance's NetVault client Registering an appliance in NetVault

Running and restoring backups

Stopping Foglight and running a backup Restoring backups

Preparing a new appliance Restoring a backup

Appendix: Troubleshooting

Diagnosing Sniffer issues

Overview of the Sniffer test Running the Sniffer test Investigating and resolving issues in monitored traffic

Understanding packet drops with SPAN ports and aggregation network taps Expanding full partitions on virtual appliances

Expanding the size of virtual disks Expanding the size of partitions

Specifying network settings

For this step, you need the network information you collected when planning your installation, including IP addresses, host name, subnets, and DNS servers. For more information, see the tables in Network information required for physical appliances or Network information for virtual appliances.

When specifying IP addresses, you can use either IPv4 or IPv6 addresses. When specifying a subnet mask, you can use whichever notation you prefer, that is, either CIDR notation (as shown in the following image) or IP notation (for example, 255.255.255.0). The Console Program automatically converts IP notation to CIDR notation.


	NOTE: You may see an error for a DNS lookup on your hostname. You can safely ignore this error if the hostname has not been added to your DNS.

To specify network settings:

1

From the main menu, select Network Settings.

2

Type in the values you determined when planning your installation.

•

Network information required for physical appliances

•

Network information for virtual appliances

The following image shows example values for a virtual appliance.

3

4

When prompted for confirmation, select Yes.

The Console Program tests your network settings. If the tests are successful, the Console Program can start services for Foglight.

5

Exiting the Console Program

Exit the Console Program by selecting Back until you return to the main menu, and then selecting Exit. Repeat the setup procedures on all the appliances in your installation.

If an appliance hosting a Management Server needs to participate in a federated environment, see Configuring Federated Children.

Launching Foglight

After you set up all the appliances in your installation using the preceding procedures, you should launch Foglight and ensure that the APM Appliances menu item appears in the list of Dashboards.


	NOTE: If you want to use the Foglight APM Host Name to launch the browser interface, ensure that the host name is mapped to the IP address of the appliance in your Domain Name Server (DNS), and then specify the fully qualified domain name (FQDN) in the navigation bar, such as http://foglight.mycompany.com:8080.

To log in to Foglight and locate the APM Appliances menu:

1

Select Exit to log out of the Console Program.

2

Launch Foglight from the browser of your choice. In the navigation bar, type the Foglight APM Control Port IP Address or Host Name followed by :8080.

For example: http://<Foglight APM Control Port IP Address>:8080

3

Log in to Foglight using the user credentials provided by your Foglight Administrator. In a new Foglight installation, the default user name is foglight and the password is foglight.

4

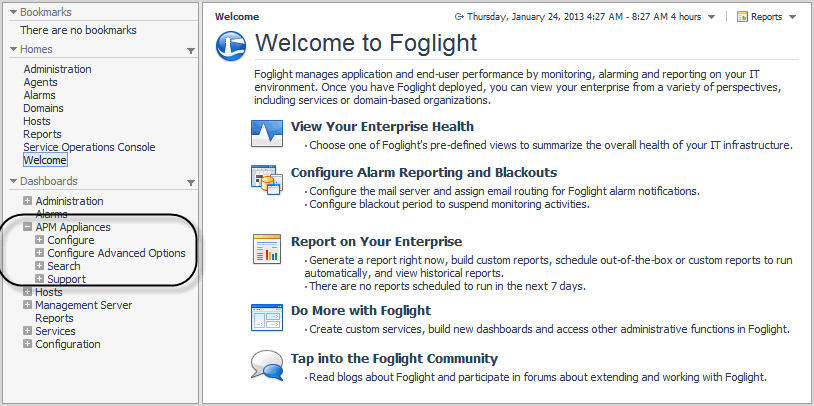

In the navigation panel, under Dashboards, verify that the APM menu item has been created.

The installation and setup of the appliances is complete. The next step is to register and configure Sniffers and Archivers.

Configuring software components

From Foglight, someone with APM Administrator user privileges needs to register Sniffers and Archivers, and configure the software components to enable data capture of live web traffic. The instructions are in the online help. This procedure shows you how to find the instructions.


	NOTE: For an All-in-One Appliance only, a Sniffer and Archiver come preregistered as the LocalSniffer and LocalArchiver.

To open the online help:

1

Open the Foglight action panel (right-hand drawer) by clicking the arrowhead.

2

In the action panel, click the Help tab.

3

Expand Using Foglight APM > Foglight APM Administration and Configuration Guide.

4

Click Getting Started.

The help window opens. Follow the steps to complete the configuration.

Related Documents

The document was helpful.

Select Rating

I easily found the information I needed.

Select Rating
