Quest VROOM 1.3 - User Guide

Using Quest VROOM Dashboard

Quest® VROOM accelerates the performance of your entire virtual infrastructure, transforms the application experience for users, and helps you control license and hardware costs. Go way beyond simple Hyper-V and VMware monitoring by maximizing resource utilization and improving virtual application performance across hybrid environments.

•
Reduce hardware and licensing costs by proactively predicting and budgeting for capital expenditures.
•
Protect growing virtual environments automatically—systems, applications, and data.
•
Recover from data loss or corruption in minutes with zero impact on your users, as if the outage never happened.

The Quest VROOM Dashboard User and Administration Guide is intended for users:

•
Rapid Recovery: Who belong to the Administrators group of Rapid Recovery Core Server and have been assigned either of the System Administrator, Advanced Operator, Capacity Management Administrator, VMware Administrator, or VMware QuickView User role.
•
Veeam Backup Enterprise Manager: Who have been assigned either of the Portal Administrators, Portal Users, or Restore Operators role.
*
NOTE: To enable the data collection from Veeam Backup Server, ensure the following:
1. The enterprise-plus license of Veeam Backup Enterprise Manager has been installed.
2. The user account used to monitor Veeam must be assigned with the Portal Administrators role of Veeam Backup Enterprise Manager.

This section introduces you to the Quest VROOM environment, and provides you with essential information.

For more information, see the following topics:

•
Installation requirements
•
Dashboard location and UI elements

Installation requirements

Quest VROOM Dashboard comes installed on Foglight for Virtualization, Enterprise Edition and can be installed on a Foglight Management Server.

Quest VROOM Dashboard requires the following cartridges for data collection.

•
DRP-5.7.5.car
•
VROOM_1.3.0.car

While Foglight for Virtualization, Enterprise Edition comes with these cartridges pre-installed and enabled, a stand-alone Foglight release requires that these components be installed on the Foglight Management Server. The sequence of cartridge installation is important because of their dependencies. For more information about installing Quest VROOM Dashboard, and for details about system requirements and version compatibility, see the Quest VROOM Dashboard Release Notes.

Dashboard location and UI elements

After installing Quest VROOM Dashboard, the Protection entry appears under Homes.

To access the Protection dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.

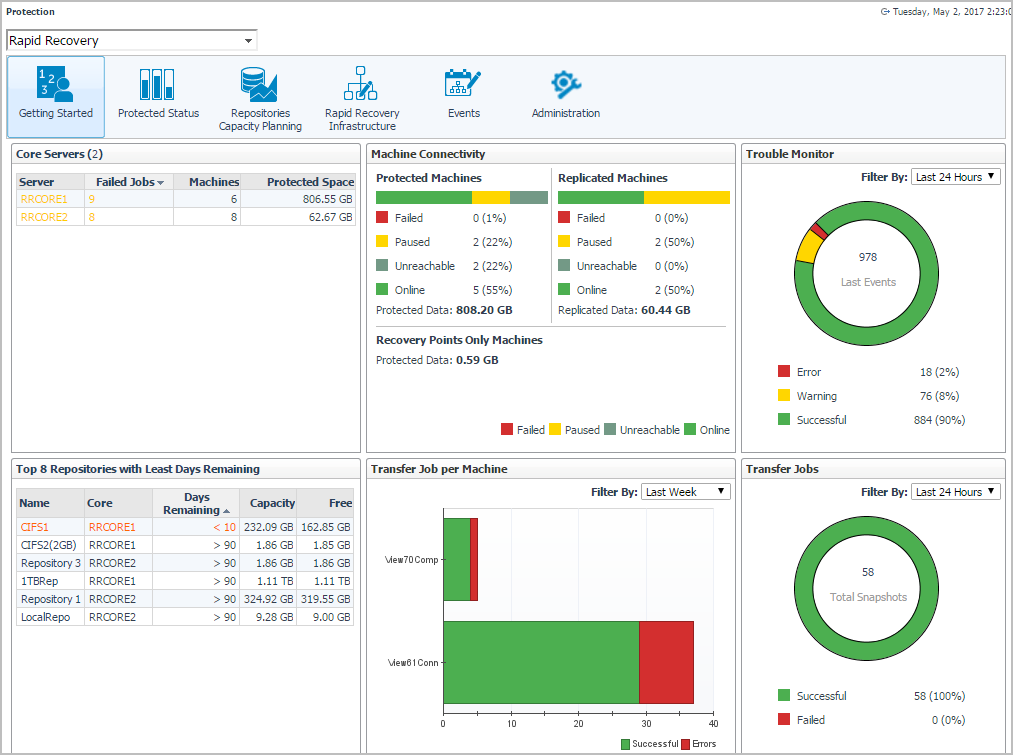

The Protection dashboard consists of the following UI elements:

•
Group selector
•
Menu bar
•
Quick view

Group selector

The Group selector is located at the top of the dashboard and allows you to select the Protection environment that you monitored.

Figure 1. Group Selector
