Quest Protect 1.9 - User Guide

Backup Servers table

The Backup Servers table shows a list of core servers that exist in the monitored Veeam environment.

Table 11. Description of the Backup Servers table
Data displayed
•
Server Name. Shows the name of Veeam Backup Server.

•
Machines. Shows the amount of machines in this Veeam Backup Server.

•
Protected Spaces. Indicates the amount of storage space protected by this Veeam Backup Server.

Veeam Protected VMs table

The Veeam Protected VMs table shows a list of agents that exist in the monitored Veeam environment.



Table 12. Description of the Veeam Protected VMs table
Data displayed
•
Name. Shows the name of Veeam Backup Server or cluster.

•
Last Job Status. Indicates whether the last job is Success, Warning, or Failed

•
Last Success. Indicates the time of last success job.

•
Protected Space. Indicates the amount of protected storage space.
Where to go next

Drill down on:


•
Explore. Click to navigate to the VMware Explorer dashboard. For more information, refer to the Foglight for VMware User and Reference Guide.



Jobs Tab - Veeam

The Jobs view of the Protection dashboard shows backup jobs for the Backup Servers, a specific protected or replicated machine in the monitored Veeam environment.

Figure 13. Jobs view

To access the Job view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Jobs tab.
The Jobs view appears at the bottom of the Protection dashboard.

A backup job is a configuration unit of the backup activity. The backup job defines when, what, how and where to back up. One backup job can be used to process one or several VMs.

The Jobs view includes the following elements:

•
Jobs table
•

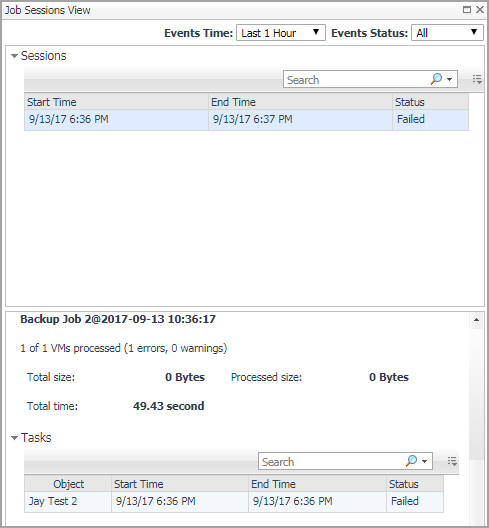

Job Sessions view

Jobs table



Table 13. Jobs table
Data displayed
•
Name. Shows the name of Jobs.

•
Type. Indicates whether this job is backup job, or replication job.

•
Platform. Indicates whether this job is for HyperV, or VMware platform.

•
Backup Server. Shows the display name of this Veeam Backup Server.

•
Latest Run. Indicates when this job ran the last time.

•
Next Run. Indicates when this job will run the next time.

•
Description. Shows the description message of this job.
Where to go next
•
Name. Click this column to show the Jobs Sessions View dialog box.
