Quest Protect 1.9 - User Guide

Getting Started Tab - Rapid Recovery

The Getting Started view of the Protection dashboard shows the data collected in the Rapid Recovery Core Servers.

Figure 4. Getting Started view

To access the Getting Started view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Getting Started tab.
The Getting Started view appears at the bottom of the Protection dashboard.

The Getting Started view includes the following tables:

•
Core Servers: This table lists the monitored Rapid Recovery Core Servers. Click this link to navigate to the Rapid Recovery Infrastructure Tab. For more information, see Rapid Recovery Infrastructure Tab.
•
Machine Connectivity: This table shows the connectivity state of machines protected and replicated on the monitored Rapid Recovery core. It also shows connectivity for data on recovery points-only machine. For more information about recovery points-only machine, refer to the Rapid Recovery Help.
•
Trouble Monitor: This table shows job activity, connections with the license portal, and transfer activity to detect early on the monitored Rapid Recovery core. The time range is configurable, defaulting to last 24 hours. Click this graph to navigate to the Events > Journal tab. For more information, see Journal tab.
•
Top 8 Repositories with Least Days Remaining: This tables shows the top eight repositories with the least days remaining on the monitored Rapid Recovery core. Click this link to navigate to the Repositories Capacity Planning Tab - Rapid Recovery. For more information, see Repositories Capacity Planning Tab - Rapid Recovery.
•
Transfer Job per Machine: This table shows, by protected machine of which the latest transfer job is failed, the number of successful and failed transfer jobs in the specified time range. This table shows the top ten machines with the most failed transfer job. The time range is configurable, defaulting to last 24 hours. Click this graph to navigate to the Events > Tasks tab. For more information, see Tasks tab.
•
Transfer Jobs: This table shows all snapshot data transfers (including base images and incremental snapshots) that completed in the specified time range. The time range is configurable, defaulting to last 24 hours. Click this graph to navigate to Events > Tasks tab. For more information, see Tasks tab.





Rapid Recovery Infrastructure Tab

The Rapid Recovery Infrastructure view of the Protection dashboard shows the infrastructure of the service scoped Rapid Recovery Core servers. The Rapid Recovery Infrastructure view includes the following two tables:

•
Core Servers: For more information, see Core Servers table.
•
Rapid Recovery Agents: For more information, see Rapid Recovery Agents table.

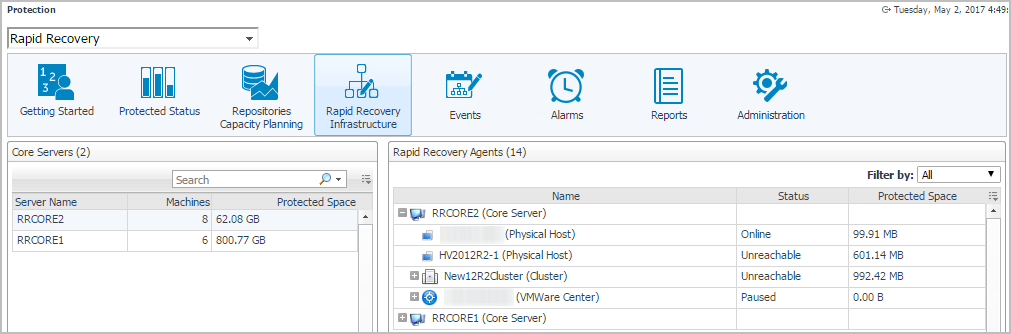

Figure 7. Rapid Recovery Infrastructure view

To access the Rapid Recovery Infrastructure view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Rapid Recovery Infrastructure tab.
The Rapid Recovery Infrastructure view appears at the bottom of the Protection dashboard.

Core Servers table

The Core Servers table shows a list of core servers that exist in the monitored Rapid Recovery environment.

Table 6. Description of the Core Servers table
Data displayed
•
Server Name. Shows the name of Rapid Recovery Core.

•
Machines. Shows the amount of machines in this Rapid Recovery Core.

•
Protected Spaces. Indicates the amount of storage space protected by this Rapid Recovery Core.
Where to go next

Drill down on:


•
Server Name. Click this column to show links to Infrastructure Health and Rapid Recovery Core Server.

Rapid Recovery Agents table

The Rapid Recovery Agents table shows a list of agents that exist in the monitored Rapid Recovery environment.



Table 7. Description of the Rapid Recovery Agents table
Data displayed
•
Name. Shows the name of Rapid Recovery Core Server or cluster.

•
Status. Indicates whether the machine connectivity is Online, Failed, Paused, or Unreachable.

•
Protected Space. Indicates the amount of protected storage space.
