On Demand Migration Current - Hybrid Exchange User Guide

Test and Pilot Migrations

Any full scale migration should be preceded by test and pilot migrations, to confirm that your migration processes and procedures will accommodate the organization requirements.

  • A test migration uses real users and real data in a segregated test environment, or dummy users and dummy data in your live production environment.
  • A pilot migration uses a small portion of real users and real data in the live production environment.

In either case - a test or pilot migration - the data to be migrated should be a representative sample of the production data, and the test or pilot migration should be run with the Quest applications set for the same configuration and process options that you intend to use for the production migration. it is recommended to select test or pilot users whose usage and data types make them representative of the total user population. Then create and run matching / migration tasks for those accounts, including all range of tasks you are planning to perform. When the tasks are completed, review errors and warnings, if any. See Event Management section for more information.

Quest recommends that you use both test and pilot migrations:

Perform one or more test migrations in a separate test environment, migrating test copies of real users and their real data. The separate test environment ensures that no test process will affect the data or configurations of your production environment. If a test exposes any problems under migration, you can make amendments and then repeat the test by simply dumping the test environment and recreating it from scratch.

When you are confident that your test migrations have sufficiently refined your planned migration, perform a pilot migration for 20 or 30 users to verify if your planned migration is satisfactory for your "real world."

Project Management

A migration project contains the full set of migration features and provides a summary of all the migration activities in the project dashboard. You can work with a single migration project or you can set up multiple migration projects to split staggered migration plans into manageable projects.

In this topic:

Creating a new migration project

  1. Sign in to Quest On Demand.
  2. From the navigation pane, click Migration to open the Migration projects view.

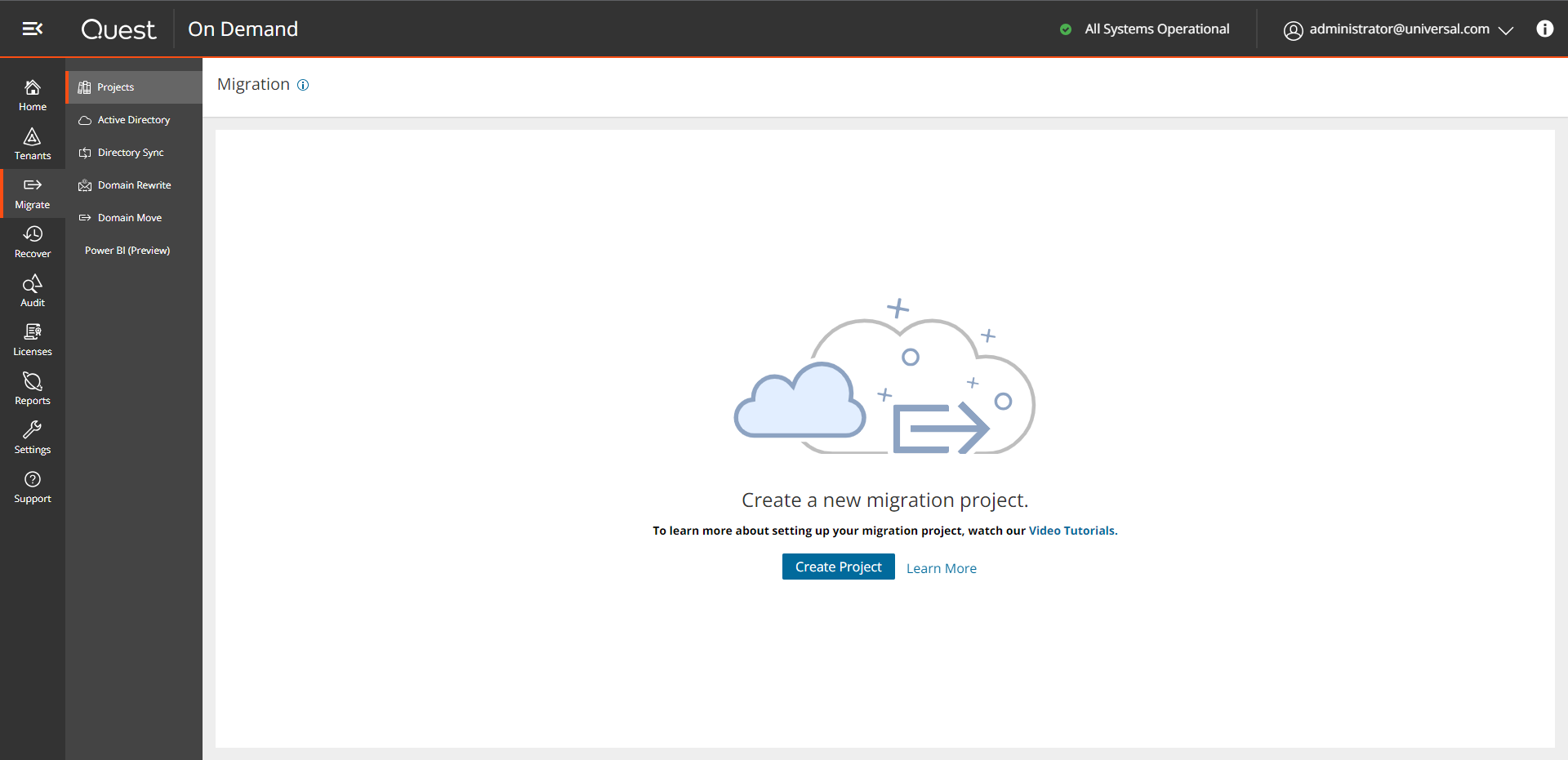

  3. Click Create Project.

    -or-

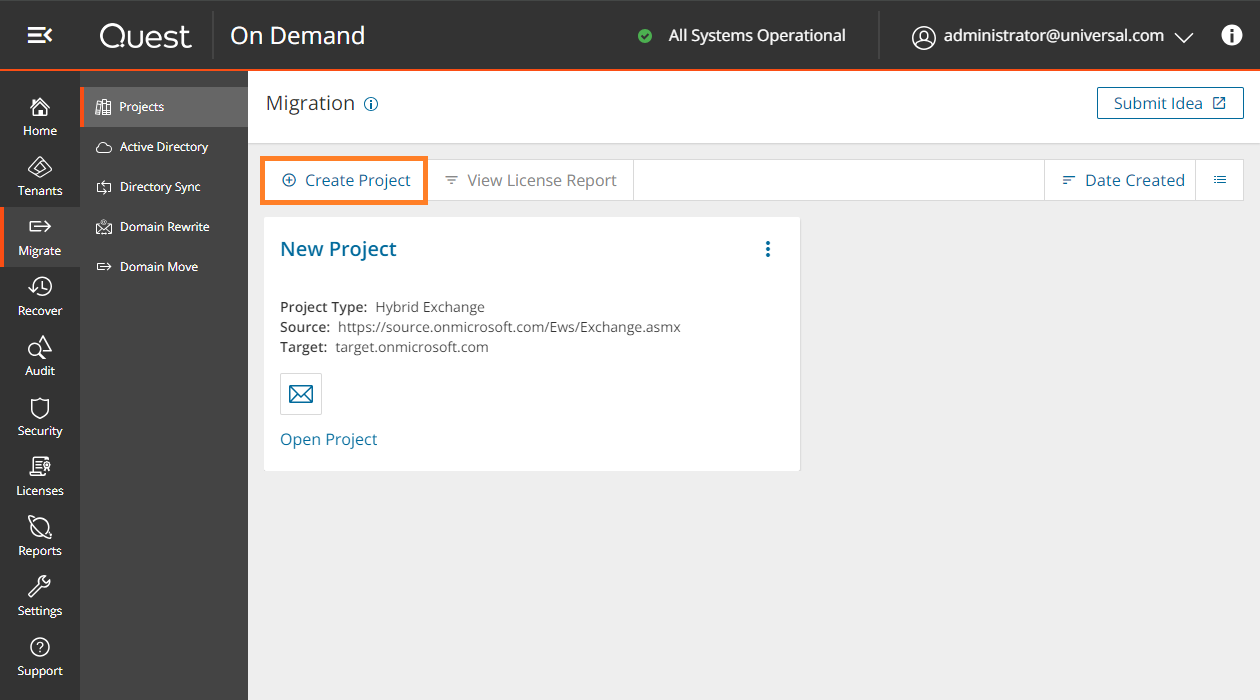

    If you have already created one or more projects, click Create Project as shown below.

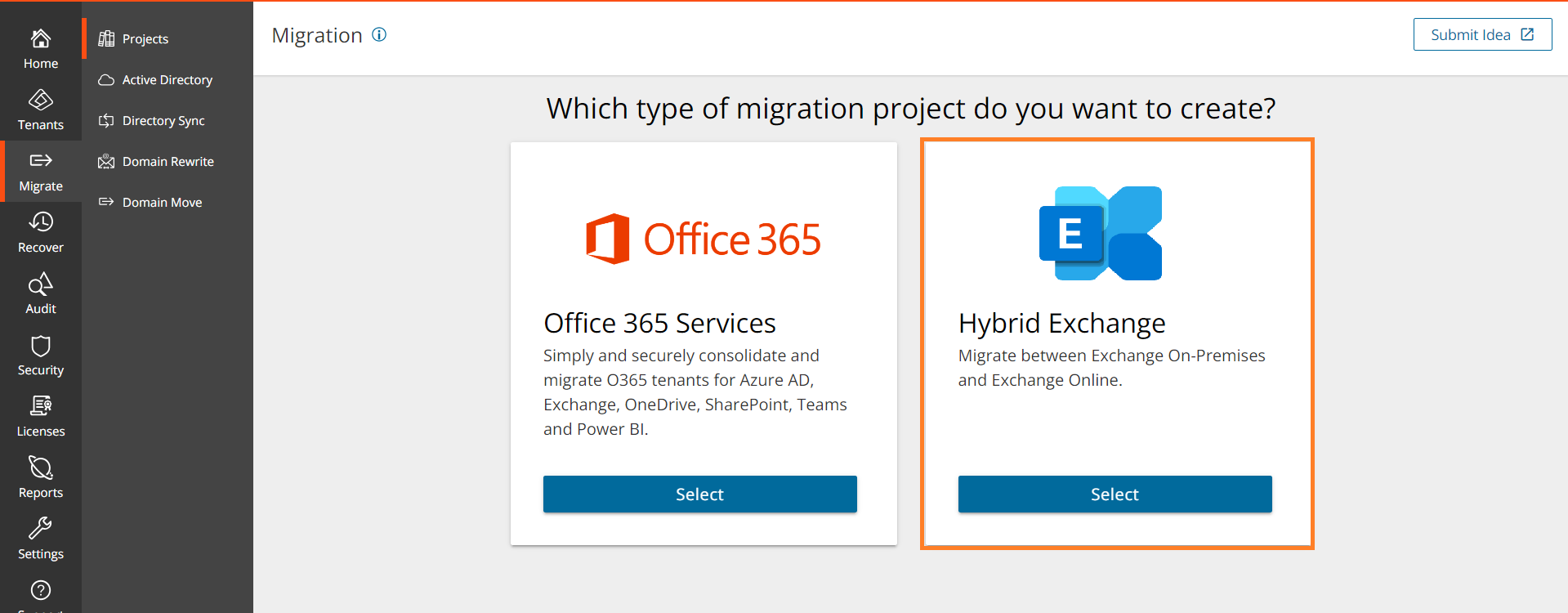

  4. Select Hybrid Exchange from the project types page.

  5. The New Project wizard starts.

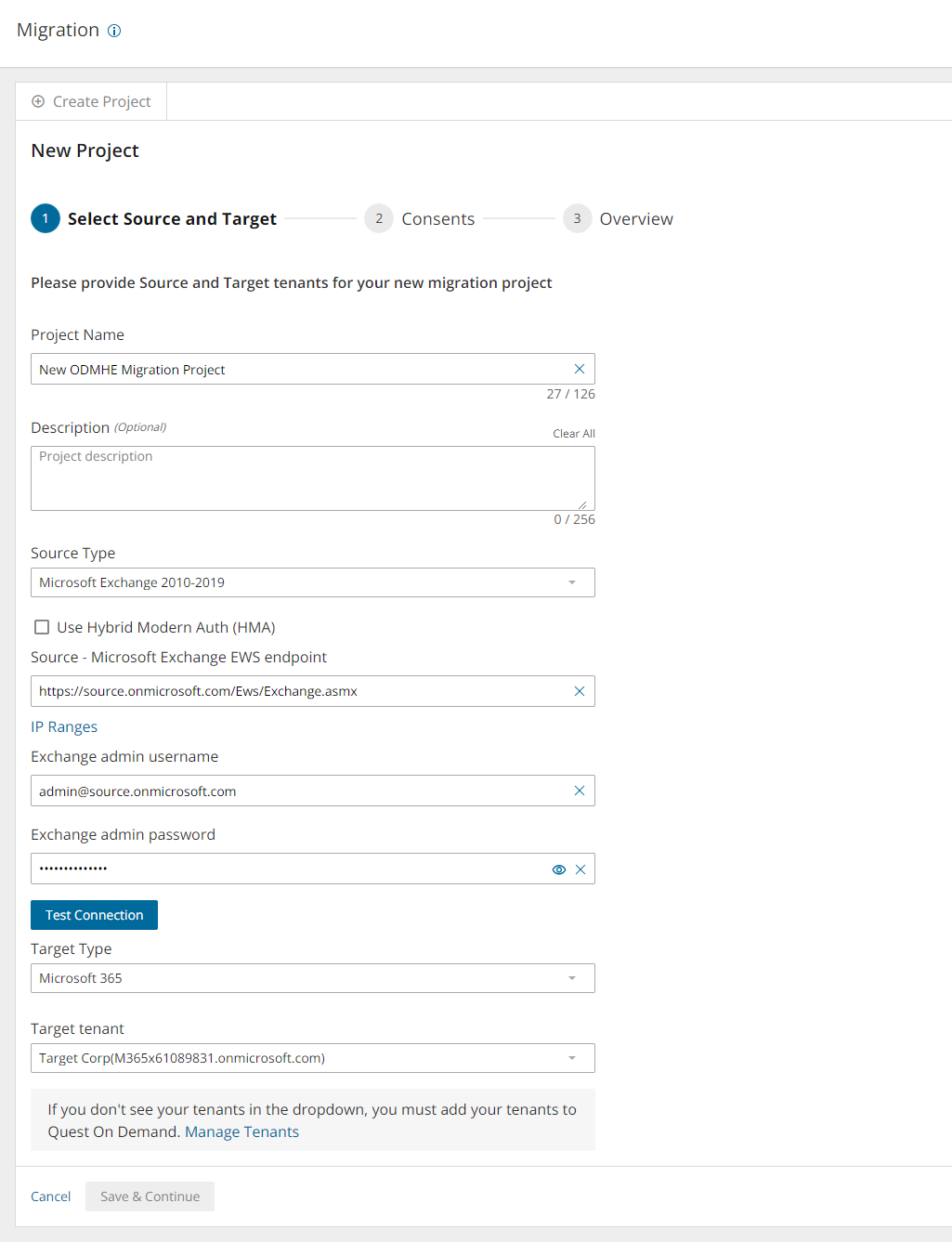

  6. Step 1: Select Source and Target

    Enter the information in the fields as described below:

    1. Project Name - specify a meaningful name for the project. Maximum number of characters is 128.
    2. Description - enter a description about the project. Maximum number of characters is 200.
    3. Source Type - select the email source from the following options.
      • Microsoft Exchange 2010-2019 - the email source is an on premises Exchange server.
      • Microsoft 365 - the email source is a Microsoft 365 tenant.
    4. Source tenant - name of the source tenant if the Source Type selected is Microsoft 365.
    5. Target Type - select the email target from the following options.
      • Microsoft 365 - the email target is a Microsoft 365 tenant. This option is available only if the source type selected is Microsoft Exchange 2010-2019.
      • Microsoft Exchange 2010-2019 - the email target is an on premises Exchange server.
    6. Target tenant - name of the target tenant if the Target Type selected is Microsoft 365.
    7. Microsoft Exchange EWS endpoint - enter the URL of the Microsoft Exchange EWS endpoint of the source or target on-premise Exchange server selected.
    8. Hybrid Modern Authentication (HMA) - this option appears when you choose Microsoft Exchange 2010-2019 as the source or target. Select this option to allow the On Demand service principal to access mailboxes, which are hosted on-premises, by using authorization tokens obtained from the source or target tenant. When you select this option, the following settings are also considered:
    9. Exchange admin username - enter the Microsoft Exchange administrator username.
    10. Exchange admin password - enter the Microsoft Exchange administrator password.

    11. Click Test Connection. If the connection is successfully verified, a confirmation message appears. Otherwise click Edit and re-enter the Microsoft Exchange administrator credentials.
    12. Click Save and Continue. You must successfully establish a connection to the Microsoft Exchange EWS endpoint to activate this button.

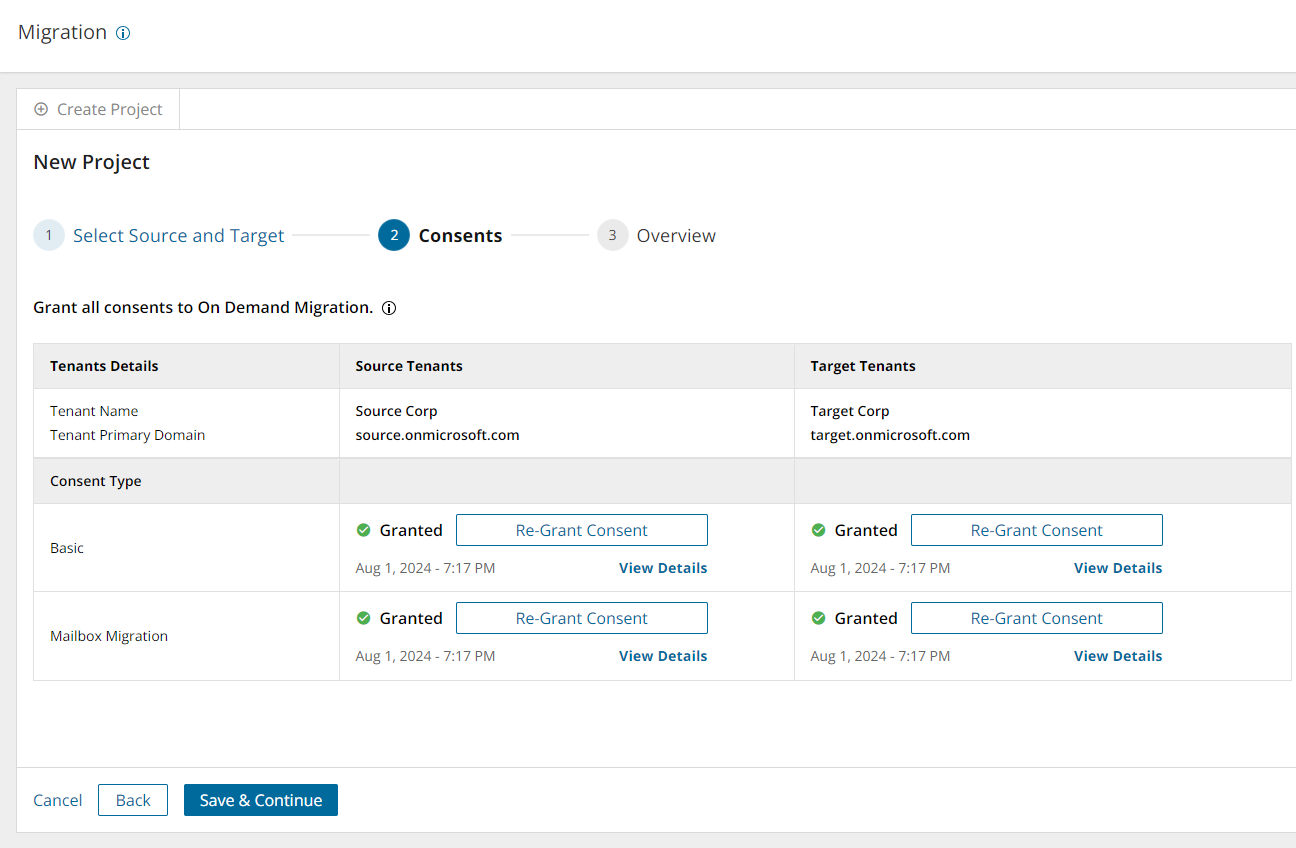

  7. Step 3: Consents

    The migration service principals must be granted the necessary consents. See Consents and permissions for more information. If HMA is enabled then the consents for both tenants are displayed. If HMA is not enabled then only the consents for the source or target tenant that has the Exchange Online is displayed.

    To grant consent the service principals:

    1. Click Grant Consent to grant the consents to the service principal if the tenant consents were not granted when you added the tenant.

      -or-

      Click Regrant Consent to refresh the consents granted to the service principals. It is recommended that you regrant consent to ensure that the consent to the service principals are refreshed.

    2. Click Save and Continue.
  8. Step 5: Overview
    1. Verify the information you have provided for each step. Click Edit to return to the step and revise the information as needed.
    2. Select Open Project to open the project dashboard.
    3. Click Finish to activate the project.

Viewing migration projects

  1. Sign in to Quest On Demand.
  2. From the navigation pane, click Migration to open the Migration projects view.
  3. You can view the projects in two formats:
    1. Tile view
      • This view presents each project as a tile. Click from the view selector in the actions menu to select this view.
      • It is the default view and contains links to the migration workspaces from the set of icons in the tile.
      • You can sort the tiles by Date Created or Alphabetical from the sort criteria dropdown in the actions menu.
    2. List View
      • This view displays the projects as a list. Click from the view selector in the actions menu to select this view.
      • This view is useful when you have a large number of projects. Click on a column header to sort the list by its column values.

Renaming a migration project

  1. Sign in to Quest On Demand.
  2. From the navigation pane, click Migration to open the Migration projects view.
  3. From the top right-hand corner of the project panel, click the More Actions icon (3 dots). Then click Rename Project.
  4. Revise the name or description as needed.

  5. Click Save Project Name to save the changes and close the dialog.

Deleting a migration project

  1. Sign in to Quest On Demand.
  2. From the navigation pane, click Migration to open the Migration projects view.
  3. From the top right-hand corner of the project panel, click the More Actions icon (3 dots). Then click Delete Project.

  4. Click OK to confirm the deletion.

On Demand Migration Workspaces

Click Open Project in the tile view or click a project name in the list view, to open its project workspace. The project workspace displays important information about your project and associated reports.

In each project, On Demand Migration also creates a migration workspace. The migration workspace is a logical collections of migration tools for the On Demand Hybrid Exchange assets and information about the assets in the source and target tenants.

You can go directly to the migration workspace by clicking the asset icon in the project tile. The icon you see will depend on your role, licenses and the assets selected when the project was created. You can hover over an icon to see the name of the asset type.

Configuring Connections

You can re-configure connection information about the project from the Dashboard as described below.

To configure connections:

  1. Log in to Quest On Demand and choose an organization if you have set up multiple organizations.
  2. From the navigation pane, click Migration to open the My Projects list.
  3. Create a new project or open an existing project.
  4. The migration workspace opens.. Then click Dashboard.
  5. Click Configure Connections from the Dashboard menu.

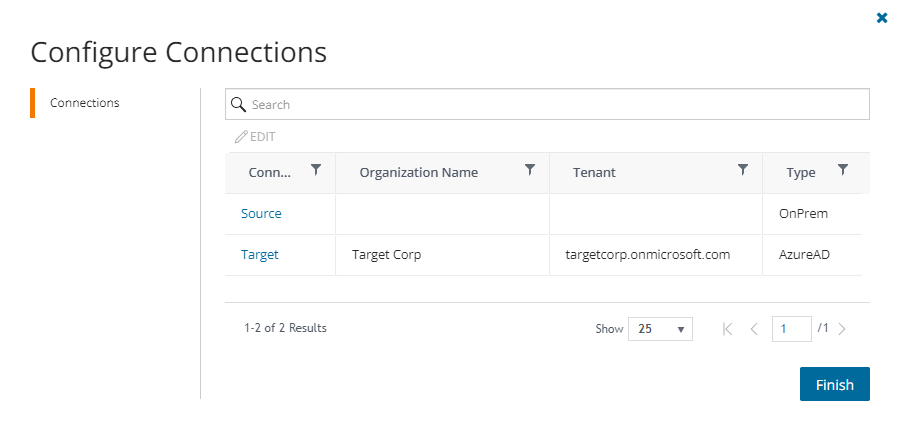

  6. From the Configure Connection wizard select the source or target tenant that you want to configure. Then click Edit.

  7. The properties that appear in the Configure Connections dialog are based on the project settings for the source and target.

    Exchange on-prem properties M365 properties
    EWS Url Concurrent PowerShell connections
    Exchange admin username Custom EWS Url
    Exchange admin password

    Configure the settings as described below:

    • EWS Url - enter the URL of the Microsoft Exchange EWS endpoint of the source or target Exchange server selected.
    • Exchange admin username - enter the Microsoft Exchange administrator username.
    • Exchange admin password - enter the Microsoft Exchange administrator password.
    • Concurrent PowerShell connections - you can increase Concurrent PowerShell connections settings to speed up the concurrent tasks completion or set the value in case of editing of the migration projects that have been created in previous versions of the On Demand Migration for Hybrid Exchange. The default Microsoft 365 quota is 3 open connections per user.

      Caution: Do not exceed the maximum number of concurrent PowerShell connections allowed for your organization to avoid throttling issues. To increase the maximum number of allowed concurrent connections open a support ticket with Microsoft.

    • Custom EWS Url - specify custom EWS endpoint for connecting to Exchange Web Services (EWS), if you do not want to use EWS endpoint located by the Auto-discover service automatically.
  8. Click Save to commit your changes.
  9. When both source and target connections are configured, click Finish.

Migration Workspace

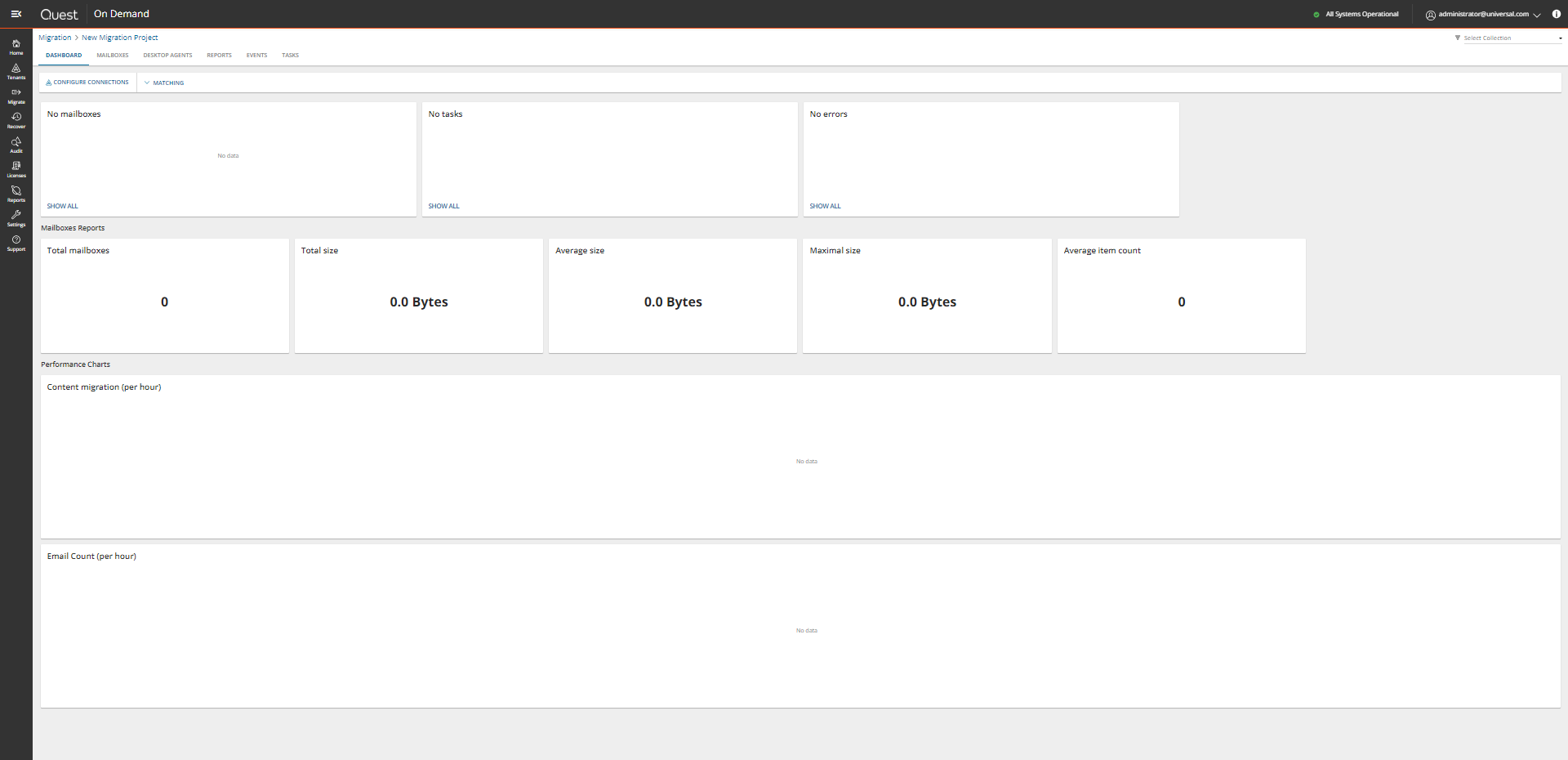

Information about the migration project is summarized on the project dashboard.

When you create a new project all the tiles are empty. Each tile on this dashboard presents a summary of the migration activities and lets you navigate to the respective migration service dashboards or list views as described below:

Mailboxes

Display the most recent mailboxes that were migrated.

Tasks

Displays the five most recent tasks that were completed. Click Show All to open the Tasks List view.

Errors

Displays the five most recent errors that occurred. Click Show All to open the Events List view.

Mailboxes Reports

This section displays a collection of reports about the mailboxes that were migrated.

Total mailboxes

Total size

Average size

Maximal size

Average item count

Performance Charts

This section displays a collection of performance charts about the mailbox migration service.

Content migration (per hour)

Email Count (per hour)
