The Foglight data model

This section provides an introduction to models and discusses the Foglight data model.

•
What are models?
•
Who needs to know about models?
•
Where can I see the models?
•
How are models organized?
•
What are domains?
•
What is a data source?
•
What are “KnowledgeItems”?

What are models?

In general, models are abstractions that capture the essence of the objects they are supposed to represent. A good model looks and behaves like the real thing, at least in certain ways. If a model were perfect in every respect, it would be indistinguishable from the real thing. Thus, we could pose questions, submit these in some way to the model, and obtain the same, or almost the same, results as we would by doing those things to the real object. If the object under consideration undergoes a change, the model would have to change accordingly in order to faithfully represent that object.

The data model used in the Management Server is constructed to do just that. The data sent to the Management Server changes with time, not only because the measurements on properties change, but because the objects themselves may come and go. So, a data model for use with the Management Server must be designed to accommodate the creation of objects, by placing them in a well-designed model hierarchy. Objects have relationships among themselves, and a good model accounts for those relationships.

To the Management Server, models are collections of related data objects. The totality of data objects in existence at any one time is referred to as the “data model”.

•
Objects are created by transforming the raw data collected by agents (collection models) or when services are created, deleted, or modified (service models).
•
Objects have properties, such as lists and metrics (time series values). Properties may be simple values, but often they are other objects. Being objects, they can have properties that are objects, and these objects may have the starting object as a property. Thus, the relationships form a graph, not a tree.
*
NOTE: Data objects having other data objects as properties can be a source of confusion when you attempt to drill down into an object’s properties using a data browser. It is possible to encounter a loop of related properties that the data viewer (a tree of nodes) unwinds into a seemingly endless chain of repeating properties. When using the data browser, it is seldom productive to go more than five levels deep. After that, it is likely that you are in an unwound loop.
•
Data models can be organized into sub-modules, for instance:
•
HostModel represents a collection of agents on a host.
•
Windows_System represents a Windows® System agent.
•
Physical_Disk represents a disk.
•
Raw data can be modeled in different ways.
•
You can examine the data model’s static skeleton (the defined data types and their inter-relationships) in the Schema Browser.
•
You can examine the dynamic data objects in the data browser (Dashboards > Configuration > Data > Management Server > All Data).

*
IMPORTANT: Attempting to diagram the data model using these views can entail considerable work. Models should be regarded as being internal to the Management Server.

Who needs to know about models?

Knowledge of the data model is beneficial if you are performing one of the tasks listed in the following table.


Table 1. Who needs to know about models?
Extending the model
You might want to add an extra metric to the system, extend an existing collection, or monitor a new and currently unsupported application.
Using the query language to build a new UI query
You need to understand the data model to construct a path to the data objects of interest.
If you want to write a query to return all the instances of an object of a certain type about which the Management Server currently knows, you can locate them in the data model. Some objects are deeply nested; construct the most efficient path to them.
Building your own dashboards
If you intend to design and build your own dashboards, you need to know what the existing data model can supply. Because the Management Server is an open-ended data modeler, it is possible with sufficient effort to build a new data collection framework from the ground up.
In brief, the process of building a new data collection framework is as follows:
•
If the data is not already available from existing agents, create an agent to collect the data and install it on target systems. One way is to create a formatted script that writes to STDOUT, upload the script, build a script agent, and then deploy and activate the agent. Consult Quest’s Professional Services organization.
NOTE: You can use any executable on the client system that writes to STDOUT. All you need is a script to launch the application.
•
Configure the transformation layer that creates typed objects to hold the data and define the interrelationships between data types. Tools: XML and Groovy.
Design and build the dashboards to present the data in the Management Server using WCF. Tool: the component editors in Definitions. Resources: the Web Component Tutorial and the Web Component Reference pages.

Modeling process overview

In this guide, modeling refers to the process of creating new in-memory models. This process can include the creation of:

•
A static framework of types and their relationships
•
New types when they become needed
•
Transformations to create the types as a result of data arrival or model changes
•
Instances of those types
•
Dashboards and monitoring policies to work on those types

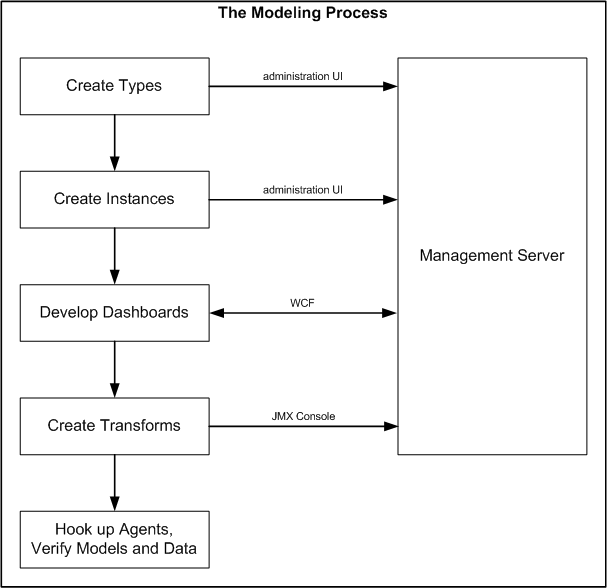

The modeling process is illustrated in the following diagram.

Figure 1. Modelling process

You develop models to organize and convey the relationships that exist among the pieces of monitoring data, so that they can be presented visually in dashboards.

The first step in the modeling process is to define the static types that are used to represent the data. These form the core data types of the data model. Once these types are defined, it is possible to represent them in a schema, and these types can be seen in the Schema Browser dashboard.

You define types by creating a topology type XML file. You can deploy the XML file to the Management Server using the administration UI. The Management Server handles versioning of the types.

The second step in the modeling process is to define instances of those types. Currently, you can only create instances of types using Groovy scripts.

The third step in the modeling process is to create dashboards using WCF. You can perform dashboard creation with just the types deployed, as long as the type definitions include metric definitions. However, it is difficult to test the dashboards without instances.

Once you have built dashboards and they are operating on test data, it is time to start using agents and enable transformations (fourth step in the modeling process). The transformations translate collected data into the topology object instances specified in the second step.

Ideally, the final-form agent is feature complete and collecting data when you reach this step.
