Reviewing completed integrations

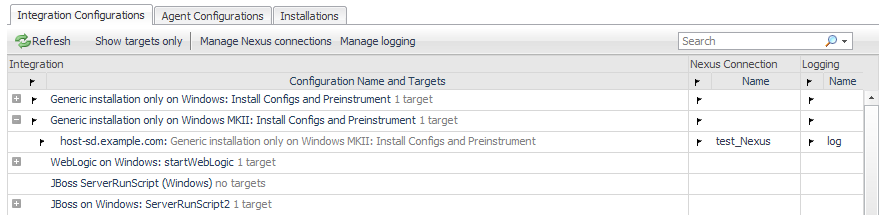

The Integration Configurations tab of the Java Administration dashboard provides an overview of completed integration tasks and targets, and their status.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java view, click Integration Configurations.

On this tab, the Configuration Name is the type of integration configuration. For example: WebLogic on Windows: startWebLogic, or JBoss ServerRunScript (Windows).

The term target is the integrated host that is using the integration configuration. For example: tor‑anoorani: WebLogic on Windows: startWebLogic.

When the target is correctly configured to connect to a Nexus and has logging properties, the name of the Nexus Connection and the Log configuration appear in the Nexus Connection and Logging columns respectively.

If you only want to see the targets and not the configurations they are using, click Show targets only.

Use this tab to manage integrations. From here, you can manage Nexus Connections and logging settings, reintegrate, or delete and undo integration tasks, or delete integrations targets or configurations.

Nexus and Agent-Nexus connections

Foglight for Java EE Technologies includes the Nexus, a central analytical engine that correlates data sent from multiple agents, restores and preserves the temporal order of events across all servers, and provides other basic analysis of the data. The Nexus is essential to the data management facilities of Foglight for Java EE Technologies.

Foglight creates a default Nexus as part of the installation process for Foglight for Java EE Technologies. The default Nexus controls all agent data correlation and submission unless you create another Nexus and assign agents to it instead.

TIP: For more information about the Nexus, see the topic Understanding the default Nexus in the Foglight for Application Servers Administration and Configuration Guide or help.

The Nexus connection is the communication link between the Java EE agent and the Nexus. It defines how the agent communicates with the Nexus and controls settings such as retry intervals and timeouts.

The initial agent-Nexus connection is created as part of the agent installation process. You can also create connections, or edit existing ones, and change which agents are using a connection by switching the agent’s Nexus connection.

Managing Nexus connections

During the process of creating a Java EE agent, you assign it to an existing Nexus, and an agent-Nexus connection is created. You can also change the connection between an agent and a Nexus, or create a connection and assign it to different agents after they have been created.

The process for creating an agent-Nexus connection and the process for editing an existing one are similar. The following procedure describes both options and any differences between them.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java view, click the Integration Configurations tab.
4
Click Manage Nexus connections.

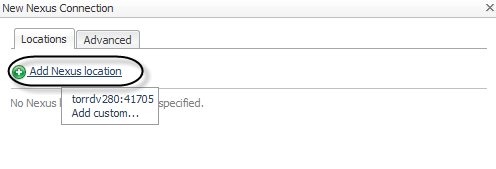

Click Add Nexus location and select a Nexus from the list.
TIP: Use the Add custom option to define a Nexus location by listen address and port.
8

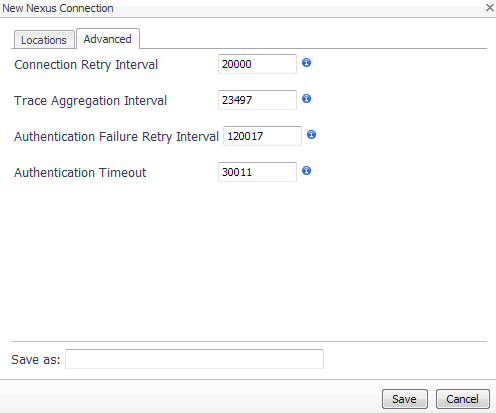

Click the Advanced tab.
11
Click Save.

Updating the Nexus connection for a target application server

If you changed the Nexus Connection (see Managing Nexus connections for details), you can update any target application servers that are using that Nexus connection through the Integration Configurations tab of the Java Administration dashboard.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java view, click the Integration Configurations tab.
4
In the Configuration Name and Targets list, expand the configuration group (for example, WebLogic on Windows: startWebLogic) that contains the target by clicking the ‘+’ sign.
6
In the menu that opens, click Update Nexus connection.
