Foglight for Java EE Technologies 5.9.13 - Installation Guide

Installing and Configuring Foglight for Java EE Technologies Integrating with JBoss Integrating with Apache Tomcat Integrating with WebLogic Domain Startup Scripts Integrating with WebSphere Integrating with WebSphere Liberty Integrating with Oracle AS Integrating with Spring Boot for Embedded Tomcat Creating a Generic Installation for Manual Java EE Agent Integration Managing Java EE Agent Installations, Integrations, and Configurations Managing Java EE Agent Configurations Managing Java EE Installation Java EE Integration Configuration FAQ and Troubleshooting Manually Integrating Application Server Appendix A: Java EE Application Methods AppendixB: Managing Permissions for the Java EE Integration Agent

Creating agent instrumentation configurations

Foglight for Java EE Technologies includes a default, basic configuration for the Java EE agent that is defined in the instrumentation.config file settings. Java EE agents use the default configuration unless you explicitly create and assign a new one to them. You can create configurations by copying settings from the default configuration.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java vew, click the Agent Configurations tab.
4

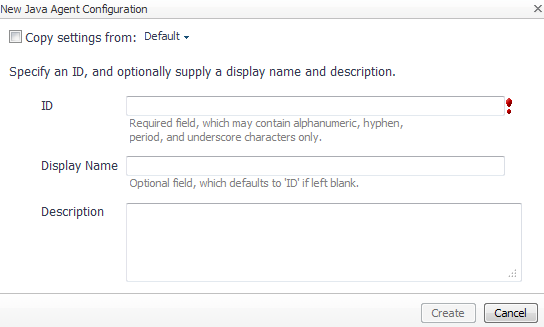

On the Agent Configurations tab, click New configuration... The New Java Agent Configuration dialog box opens.
5
Optional — To use an existing configuration as the basis for your new configuration, select the Copy settings from check box and select an existing configuration from the list.
6
Type the identifier (ID) for this configuration in the first box. The ID can contain the following types of characters: alphanumeric, hyphens, periods, and underscores. No other characters are allowed.
9
Click Create.

Editing agent instrumentation configurations

The agent configuration editor provides a GUI for editing instrumentation settings. This simplifies the process for users.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java view, click the Agent Configurations tab.
5

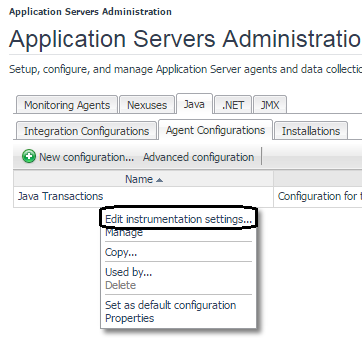

On the menu that opens, click Edit instrumentation settings...

Manually editing instrumentation settings

It is possible to manually edit the settings in the instrumentation.config file instead of using the GUI editor. If you are comfortable and familiar with these settings from previous versions of Foglight for Java EE Technologies, you may prefer to use the text editor.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the Java view, click the Agent Configurations tab.
The Java Agent Configuration: <configuration name> view opens.
6
From the Version list, select the version of the Java EE agent (for example 5.9.2 or 5.8) that you want to work with.

General instrumentation settings

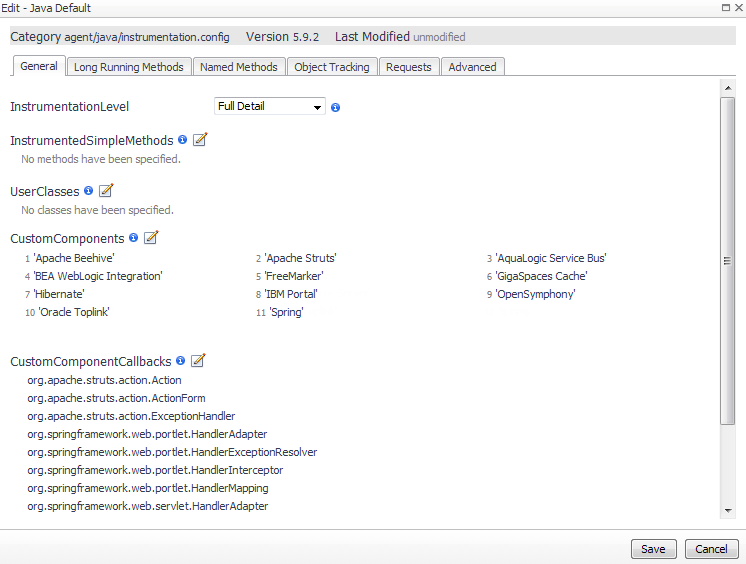

The General instrumentation settings for a Java EE agent include instrumentation levels, simple methods, user classes, custom components, and custom component callbacks. Changing any of these settings can have performance implications. Review the provided information before changing any settings.
