Associating Non-Diagram Objects

Associating Non-Diagram Objects

You can associate any object with another object that is not part of the diagram. Additionally, you can view, add, update and delete multiple associated objects and their properties in erwin Web Modeler by configuring Evolve Designer.

To view the list of Object Types displayed in the Diagram Popouts:

1.Start Evolve Designer.

2.Click a model. For example, EA Foundation – Sample Model.

3.Click Site.

4.Expand Site > Object Pages.

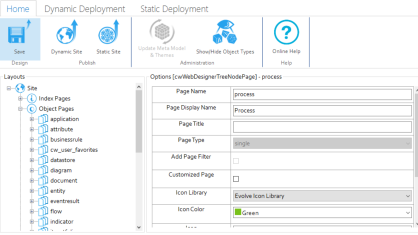

Graphical user interface, text, application, email

Description automatically generated

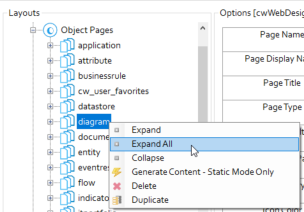

5.Right-click diagram and click Expand All.

6.Click Corporate Modeler Diagram.

Graphical user interface

Description automatically generated with medium confidence

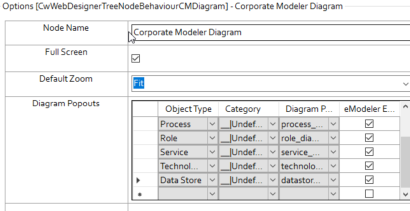

The list of Object Types appears under Diagram Popouts.

Graphical user interface, table

Description automatically generated

To create an Object Type Association:

1.Start Evolve Designer.

2.Click a model. For example, EA Foundation – Sample Model.

3.Click Site.

4.Expand Site > Diagram Popouts > application_diagram popout > Application.

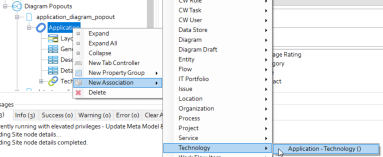

5.Right-click Application and click New Association > Technology > Application – Technology ().

Icon

Description automatically generated

You can add any Object Type Associations.

6.Click Application – Technology () node.

Graphical user interface, application

Description automatically generated

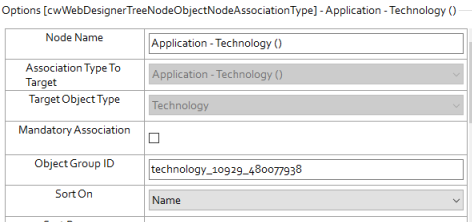

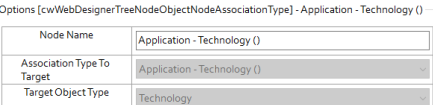

7.In the Node Name box, replace “Application – Technology ()” with “Technologies”.

Graphical user interface, text, application, email

Description automatically generated

8.Optional: If you want the diagram user to be forced to have at least one associate object, then select the Mandatory Association check box.

Graphical user interface, text, application, email

Description automatically generated

A Set Mandatory Association pop-up appears.

9.Click OK.

10.Click Save.

11.Click Dynamic Site.

The Associated Objects are now visible in the diagram.

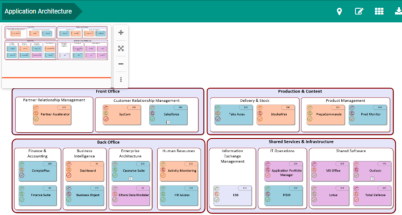

To view the Associated Objects in the diagram:

1.Open the browser and login to erwin Evolve Web.

2.Click a model. For example, EA Foundation – Sample Model.

3.In the left pane, click Application.

4.Click Application Architecture.

Graphical user interface, text, application, chat or text message

Description automatically generated

5.Click the required object for which you want to view Associated Object. For example, Salesforce.

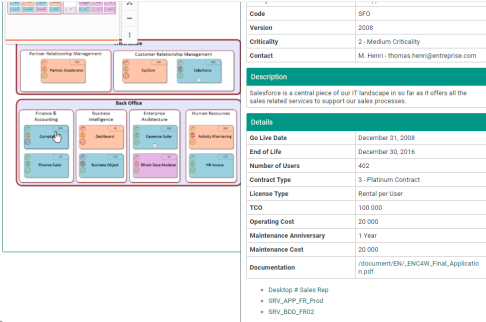

The Associated Objects Types are now visible in the right pane.

Graphical user interface, table

Description automatically generated

To add Associated Objects in erwin Web Modeler:

1.Click the Edit Diagram In Web Modeler icon.

Graphical user interface

Description automatically generated

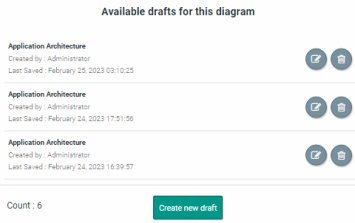

2.Click Create new draft.

Graphical user interface, text, application, email

Description automatically generated

The erwin Web Modeler editor opens in the new tab with the predefined Shape Palette of the selected template.

3.Select the object for which you want to add Associated Object. For example, Salesforce.

4.Click Icon

Description automatically generated.

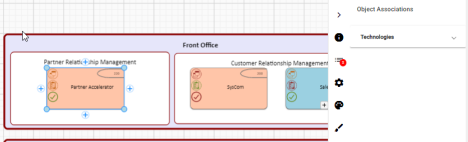

The Object Associations list appears.

Graphical user interface, text, application

Description automatically generated

5.Click the Technologies drop-down list.

6.Click Add Associated Object.

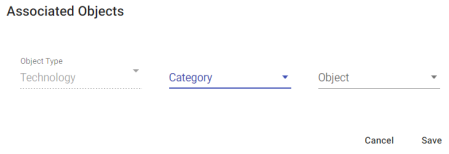

Associated Objects pop-up opens.

A picture containing chart

Description automatically generated



Icon

Description automatically generated

The Object Type field is pre-populated with the Object Type to which you want to add an Associated Object.

7.Click the Category drop-down list and select the required option.

8.Click the Object drop-down list and select the required option.

9.Click Save.

10.Click Icon

Description automatically generated.

11.Click Confirm Publish.

Once the diagram is published in the erwin Web Modeler, you can access it from the Modeler in the erwin Evolve Suite.

Mandatory Association

Mandatory Association enforces you to add at least one Object Association.

If no Associated Object is added, a pending task appears in the To-do List and the Publish Diagram is disabled.

To add Mandatory Association:

1.Click A picture containing text, room, gambling house

Description automatically generated.

To-do List opens.

Graphical user interface, text, application

Description automatically generated

2.Click the pending task. For example, “Mandatory Technologies association required”.

Once pending task selected, the object is selected automatically, and the Object Association section appears in the right pane.

3.Click the Technologies drop-down list.

Graphical user interface, text, application

Description automatically generated

4.Click Add Associated Object.

Graphical user interface, text, application, email

Description automatically generated

The Associated Objects pop-up opens.

A picture containing chart

Description automatically generated

Icon

Description automatically generated

The Object Type field is pre-populated with the Object Type to which you want to add an Associated Object.

5.Click the Category drop-down list and select the required option.

6.Click the Object drop-down list and select the required option.

7.Click Save.

8.Click Icon

Description automatically generated.

9.Click Confirm Publish.

Once the diagram is published in the erwin Web Modeler, it can be accessed from the Modeler in the erwin Evolve Suite.

Formatting Shapes In Web Modeler

Formatting Shapes In Web Modeler

Icon

Description automatically generated

Please check with your Administrator that firstly, your Server and Internet Browser meet the necessary system requirements to use Web modeler. Secondly, check with your Administrator that the Web Modeler feature is enabled.

This page explains how to format shapes in the Web Modeler online step by step.

Adding Shapes, Connecting Lines To The Diagram, and Changing Properties

To add shapes to the diagram,

1.Drag and drop the required shape from the Shape Palette.

2.Double-click on the object shape to edit the Title and its Properties.

3.Click Save.

You can use a Connector to link two Shapes, indicating that there is a connection between the two shapes.

In-Place editing in the shape,

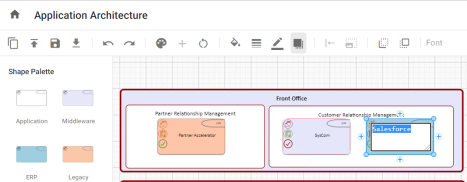

You can edit the name of a shape in the diagram editor using In-place editing.

To edit the name of the shape,

1.Select the shape you wish to edit.

2.Click again on the shape and then enter the text.

3.Either press Enter or click anywhere on the editor to finish editing.

Diagram

Description automatically generated

To add the connector between the shapes,

1.Select the first shape by clicking on it.

2.Click on one of the + symbols to add the connector and move your mouse pointer to the shape you would like to connect to.

3.Click on the shape to end the selection.

4.If there are multiple connection types between these kinds of objects, you will get a menu to choose the connection that is appropriate.

To Clear or Delete Shapes from the Diagram

Object Shapes can be Cleared or Deleted from the diagram in two ways.

To Clear a Shape:

When you choose to Clear a shape, it removes the shape from the diagram, but it does not remove the object it represents from the model.

1. Select the shape you wish to Clear.

2. Click on   icon.


Or

1.Select the shape you wish to Clear.

2.Press the Delete button on your computer's keyboard.

3.Confirm to Clear.

To Delete a Shape:

When you choose to Delete a shape, it removes the shape from the diagram, and when published will remove the object representing from the model too.

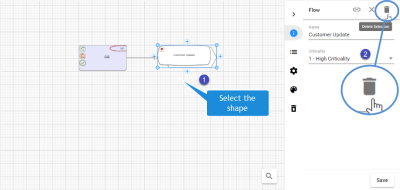

1.Select the shape you wish to Delete.

2.Click on   icon.


Or

1.Select the shape you wish to Delete.

2.Press the Delete button on your computer's keyboard.

3.Confirm to Delete.

Icon

Description automatically generated

If a shape is deleted, any connector associated with the object shape also gets deleted.



Icon

Description automatically generated

When object shapes are deleted using the Delete option, it adds the item to the Trash can icon called Deleted Objects on the right-hand pane.



Adding Background Colors and Borders to the Shapes

Every Shape from the Palette has a definite background color, border size, and border color.

You can format the shape by

1.Background Color of the shape.

2.Border Size to the shape.

3.Border color to the shape.

Icon

Description automatically generated

Some shapes may have Region shapes and Region formatting which overrides these styles such that the style options will not work.

Example: A shape may be set with color because of the “Category” of the object, i.e. the shape may be Red because it is a critical object (as defined in one of its properties).

Aligning Shapes

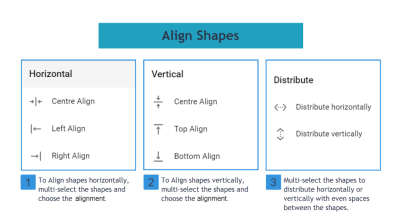

Object shapes in the Web Modeler editor can be aligned using Align Nodes placed on the toolbar.

Object shapes can be aligned to the Left, Right, and Center horizontally, and also Top, Bottom, and Center vertically, which can also be evenly Distributed Horizontally or Vertically.

Resizing Shapes to match others

In the Web Modeler Editor, the object shape can be adjusted to the height and width of the other shape using Resize Nodes.



Move Shapes from Back and Front

In the diagram, if one shape is put on top of another, it may conceal the other.

Move To Back and Move To Front buttons help to show/Hide the object shape.

Text Formatting and Fonts

The Title of Object shapes can be formatted according to:

1.Font and its Font Size

2.Text in Bold, and Italic

3.Text alignment to Left, Center, and Right.

4.Vertical Alignment.

5.Text Color.

Icon

Description automatically generated

Some shapes may have Region shapes and Region formatting which overrides these styles such that the style options will not work.

Example: A shape may use a different property for the Title, that is defined in a region. This region’s style cannot be overridden by Web Modeler.

Gallery Manager In erwin Web Modeler

Gallery Manager In erwin Web Modeler

In the Diagrammer, you can upload pictures to the shape palette of the diagram and publish them.

To upload the pictures:

1.Go to the diagram template or the existing diagram to which you wish to add pictures.

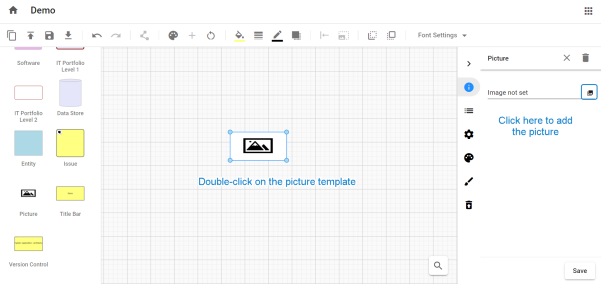

2.From the shape palette, drag and drop the picture template. Double-click on it to view the properties pane on the right side.

Graphical user interface, application, table, Excel

Description automatically generated

3.Click on the A picture containing text, screenshot

Description automatically generatedicon to open the gallery manager.

Icon

Description automatically generated

Gallery Manager displays all pictures available in the model with the most recent pictures at the top.

4.To upload a picture, click on Upload at the top-right corner.

5.Select an image and click on Select.

Graphical user interface, application

Description automatically generated

The picture appears on the draft diagram.

6.Once the draft is ready, click Publish Diagram icon.

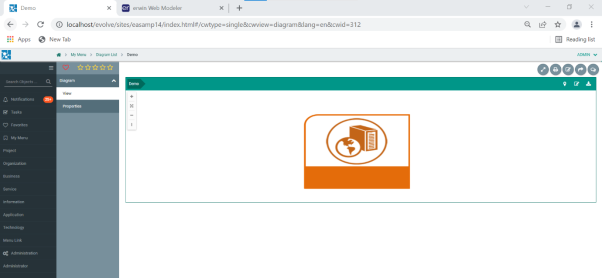

7.After publishing the draft, picture can be viewed in erwin Evolve Web or erwin Evolve Suite.

Graphical user interface, application

Description automatically generated

General Operations in Web Modeler

General Operations in Web Modeler

Options that are generally available for any diagram in the canvas are:

1.Duplicate Draft

2.Publish Diagram

3.Save Diagram

4.Download Diagram

5.Undo and Redo

6.Diagram Settings

Duplicate Draft

To duplicate the working draft of the diagram, click on Duplicate Draft on the toolbar.

Graphical user interface

Description automatically generated with low confidence

By doing this, a copy of the draft will be created, and you will be taken immediately to the draft diagram. It will also be available in the Web Modeler Home.

The draft diagram will be associated with the originally published diagram, and on publishing will replace the same published diagram.

Icon

Description automatically generated

To create a separate published diagram, you should duplicate the published diagram instead.

Publish Diagram

To publish the diagram, click on Publish Diagram icon on the toolbar.

Icon

Description automatically generated

Before proceeding to Publish the diagram, make sure you don’t have any incomplete items in To-Do list. Once published, the draft diagram will be deleted, and the published diagram will be available on the Evolve site and in Modeler.

Save Diagram

To save the diagram, click on Save Diagram on the toolbar.

Icon

Description automatically generated

Although drafts are continuously saved to a secondary storage, saving your draft diagram ensures it is kept in your Evolve database and can be backed up with your main database backup.

Download Diagram

To download the diagram in the form of an image to your machine, click on Download Diagram on the toolbar.

Graphical user interface

Description automatically generated with low confidence

Undo and Redo

You can Undo or Redo the changes made in the diagram editor.

To apply click on Undo/Redo options on the toolbar.

Text, icon

Description automatically generated

Diagram Settings

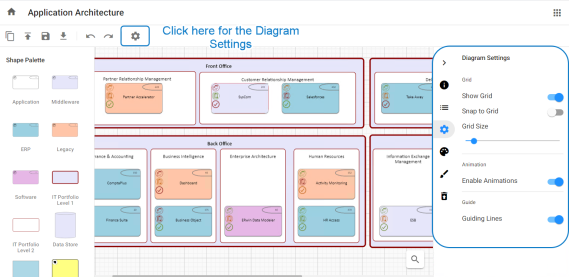

To apply the settings related to the diagram Grid, Animation and Guiding lines in the editor, click on Diagram Settings on the toolbar.

A picture containing application

Description automatically generated

You will see a panel popped up on the right-side of the screen to work on settings.

Graphical user interface

Description automatically generated
