SQL Worksheet

SQL Worksheet Overview

SQL Worksheet > SQL Worksheet Overview

The SQL Worksheet allows you to enter and execute multiple SQL statements, database objects, Transact SQL scripts. Supported SQL statements include DML and DDL commands. Local temporary table operations are allowed.

Related Topics

SQL Worksheet Window

SQL Worksheet Functions

SQL Worksheet Window

SQL Worksheet > SQL Worksheet Window

Closed

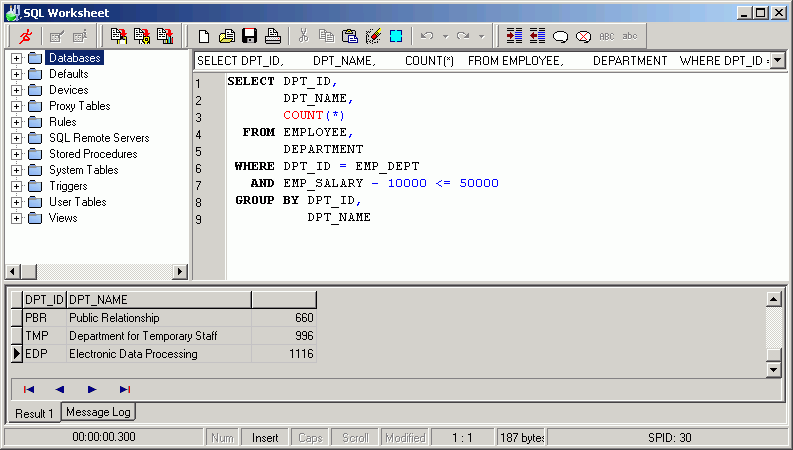

View SQL Worksheet Window

The SQL Worksheet window consists of the following: Command List, Object Explorer, Editor Pane, Information Pane, and Status Bar.

Command List

Each time a command is successfully executed, the command is saved in the Command List drop-down field at the top of the window.

Object Explorer

Provides information on database objects. It is possible to drag drop object text and name to the Editor Pane.

Editor Pane

The top right pane is the Editor pane which is used as a work area to create, modify, and execute SQL statements or Transact SQL commands.

Information Pane

The bottom pane has 2 tabs: Message Log and Resultn.

Message Log

Displays information, alert and error messages from each execute. This includes the date and time, Adaptive Server messages, and whether the execution was successful or not. This information is accumulative.

To clear the Message Log information

Right-click and select Clear All.

Result

Displays the result set after executing the command in the Editor pane. There can be multiple Result tabs, one for each result set from the code that was executed.

Status Bar

$image\W_Sy_SW_StatusBar.gif$

Progress Bar

Displays execution time while code is executing.

Num, Insert, Caps, Scroll

Specifies the state of the key functions for the Number Lock, Insert Mode, Caps Lock, and Scroll Lock.

Modified

Specifies that a modification was made to the text in the Editor pane.

n:n

Specifies the line and column position of the cursor.

nnn bytes

Specifies the number of bytes of text in the Editor pane.

SPID

Specifies the SPID for the database session used by the SQL Worksheet. The session is not connect until the first time you execute a command.

Related Topics

SQL Worksheet Overview

SQL Worksheet Functions

Execute SQL or Transact SQL

SQL Worksheet > Execute SQL or Transact SQL

To open the SQL Worksheet window

Click $image\B_SQLWorksheet.gif$ .

You can enter text into the SQL Worksheet by

Copying from the Database Explorer, the SQL Scanner, or the SQL Optimizer. (Click $image\B_CopyToSQLWorksheet.gif$ )
Typing the text.
Opening a file. (File | Open).
Opening a file or database object found through the Code Finder. (Right-click and select Open in SQL Worksheet)

To execute your SQL statement or Transact SQL code

Click $image\B_Execute.gif$ .

To abort the execution of SQL statement or Transact SQL code

Click $image\B_AbortExecute.gif$ .

Note: In Adaptive Server when you complete a transaction, it is committed to the database.

Related Topic

SQL Worksheet Window
