SQL Optimizer for SAP ASE 3.9.1

After optimization, you may discover that the performance of the optimized SQL statements is still not satisfactory. To remedy this, first check that the searching quota has not been reached in the Optimization Details window. If it has, then you should increase the intelligence level or optimization options in the Preferences window and optimize again to ensure all transformed SQL statements are given. Review the query plan of the optimized SQL statement to check if there should be any alterations to the database structure, for example adding a new index.

Rerun the SQL statement optimization after the review.

SQL Optimizer Functions

SQL Optimizer > SQL Optimizer Functions

Below is a list of available functions within the SQL Optimizer window.

SQL Editor Functions

These functions are available only in the SQL Editor.

Button or Menu	Function
SQL Menu $image\B_Optimize.gif$ $image\B_AbortOptimize.gif$	Optimize/Abort Optimize
SQL Menu $image\B_OptimizeUsingAP.gif$ $image\B_AbortOptimizeUsingAbstractPlan.gif$	Optimize Using Abstract Plan/Abort Optimize Using Abstract Plan
SQL Menu $image\B_ShowPlan.gif$	Show Plan
SQL Menu	Show Default Plan
File Menu	Open SQL from SQL Repository

SQL Editor and Optimized SQL Functions

These functions are available for both the SQL Editor and Optimized SQL.

Button or Menu	Function
SQL Menu $image\B_RunResult.gif$ $image\B_AbortRunResut.gif$	Run Result/Abort Run Result
SQL Menu $image\B_RunForFirstRecord.gif$ $image\B_AbortRunForFirstRecord.gif$	Run for First Record/Abort Run for First Record
SQL Menu $image\B_RunForAllRecords.gif$ $image\B_AbortRunForAllRecords.gif$	Run for All Records/Abort Run for All Records
SQL & Right-click Menu $image\B_TestForScalability.gif$	Testing for Scalability
SQL Menu	Open Optimized SQL
Edit Menu $image\B_CopytoIndexAdvisor.gif$	Send to Index Advisor
Edit Menu $image\B_CopyToSQLWorksheet.gif$	Copy to SQL Workshop
File Menu	Save to SQL Repository
Right-click Menu	Create Benchmark Factory Import File

Optimized SQL Functions

These functions are available only for the Optimized SQL.

Button or Menu	Function
SQL Menu $image\B_BatchRun.gif$ $image\B_AbortBatchRun.gif$	Batch Run/Abort Batch Run
SQL Menu $image\B_AbstractPlanMatrix.gif$	Abstract Plan Matrix
SQL Menu $image\B_SaveAbstractPlan.gif$	Save Abstract Plan
SQL Menu $image\B_SQLComparer.gif$	SQL Comparer
SQL Menu	Save Optimized SQL
SQL Menu	Find SQL. . . /Find Next SQL
Navigate Menu $image\B_FirstSQL.gif$ $image\B_PreviousSQL.gif$ $image\B_NextSQL.gif$ $image\B_LastSQL.gif$	First SQL/ Previous SQL/ Next SQL/ Last SQL
Navigate Menu	Go to SQL
Report Menu	Optimized SQL
View Menu	Show Optimization Details
View Menu	Show Batch Run Details

SQL Editor

SQL Optimizer Window

SQL Optimizer > SQL Editor > SQL Optimizer Window

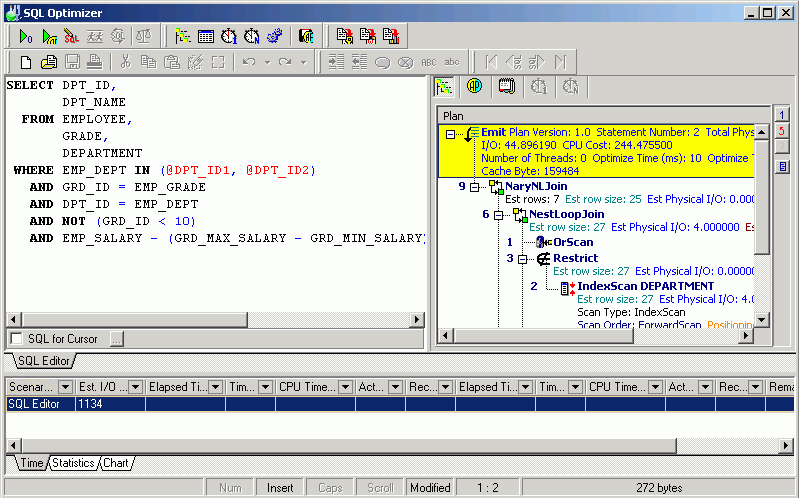

View SQL Editor Pane in SQL Optimizer Window

The SQL Optimizer window allows you to enter a SQL statement for optimization. The optimization process analyzes the original SQL statement entered in the SQL Editor pane and uses the built-in Feedback-Searching engine to reproduce a list of new, semantically equivalent SQL statements.

The SQL Optimizer supports only a single SELECT, SELECT INTO, DELETE, UPDATE, or INSERT SQL statement. To optimize SQL within Transact SQL, use the SQL Scanner module to identify potential problematic SQL statements within the Transact SQL code. Then optimize each SQL statement in the SQL Optimizer module.

The SQL Editor pane of the SQL Optimizer window is where you input your original SQL statement so that you can optimize it.

SQL Text

The top left pane is used to enter and display SQL statements. The SQL Editor tab allows you to enter the SQL statement you want to optimize. When a SQL statement is copied to this pane from other modules, the optimization process automatically begins.

After optimization, multiply tabs are added to display the optimized SQL statements.

SQL Information

The top right pane [SQL Information] displays SQL information according to the button you select from the button bar at the top of this pane. These buttons include: query plan, abstract plan, and Information (SQL classification and warning messages), All Records, and First Record. The SQL Information Pane provides detailed information about the SQL statement.

Run Time Information

The Run Time information displays in three tabs in the bottom pane.
