Create an Index Usage Analysis

To create an Index Usage Analysis

  1. Click image\B_UnusedIndexAnalyzer.gif to open the Index Usage Analyzer window.

  2. If no analysis exists in the Index Usage Analyzer then the New Analysis wizard displays automatically. Otherwise, click image\B_NewAnalysis_UIA.gif.

  3. The New Analysis wizard has two pages to select the options for creating an analysis.

  1. Make the selections from these two tab page. Click OK.

When the analysis is finished, the Index Usage Analysis Details window displays with information about the retrieval of the query plan for each SQL statement.



Related Topics

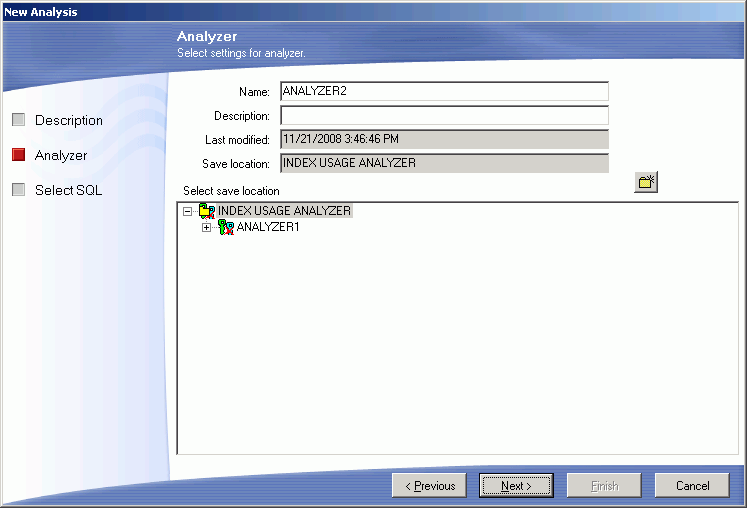

New Analysis Wizard: Analyzer Page

The Analyzer page is used to name the analysis and to select the folder where the Analyzer information will be stored.

Item Description

Name

Enter the name for the analysis.

Description

Enter the description for the analysis.

Last modified

Displays the last modified date and time.

Save location

Displays the folder in the tree where the analysis is saved. In the bottom pane, select the folder where you want to save the analysis.

To create a new folder

  • Click Add Folder image\B_AddFolder.gif.



Related Topic

New Analysis Wizard: Select SQL Page

The Select SQL page is used to select the SQL statements whose query plans you want to analyze to see which Indexes are used and which are not used by these SQL statements.

Select SQL to check for unused indexes:

Select SQL from

The SQL statements used in an analysis can be taken from the SQL Repository or the SQL Scanner. If you select SQL statements from the SQL Scanner, these statements are added to the SQL Repository.

Bottom Pane

Select the SQL statements for the analysis.



Related Topic

Update an Index Usage Analysis

You can update an analysis for unused indexes by rerunning the analysis with the same SQL statements from the original analysis or you can add or delete SQL statements from the analysis.

To update an analysis

  1. Right-click the analysis name in the left pane of the Index Usage Analysis window and select Update Analysis. The Update Analysis window has two tabs to select the options for changing an analysis before it is updated. It is not necessary to make any changes on these tabs before rerunning the analysis.

    Analyzer tab

    Selected SQL tab

  1. On the Analyzer tab, you can change the name and description of the analysis.

  2. On the Selected SQL tab, you can add or delete SQL statements to the analysis.

  3. After making the selections from the two tabs, click OK.

  4. When the analysis is finished, the Index Usage Analysis Details window displays with information the retrieve of the query plan for each SQL statement.



Related Topic
