Global Package Status

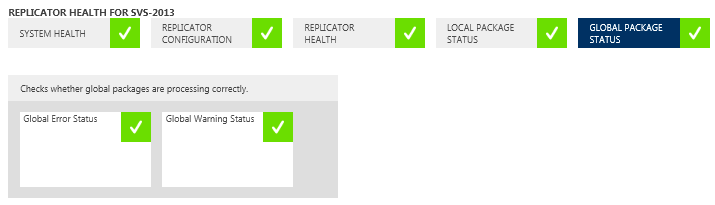

Global Package Status provides an overview of the status of global replication package processing for the selected farm. Select Global Package Status to expand the section for an overview of the various components that are checked to identify the status of global replication processing.

METALO~3_img138

The health checks within the Global Package Status section check for the following:

Health Check	Description
Global Error Status	Checks if there are and global package statuses with errors on a web application.
Global Warning Status	Check if there are global package statuses with warnings on a web application.

For further details click on the global status checks listed above.

Topology

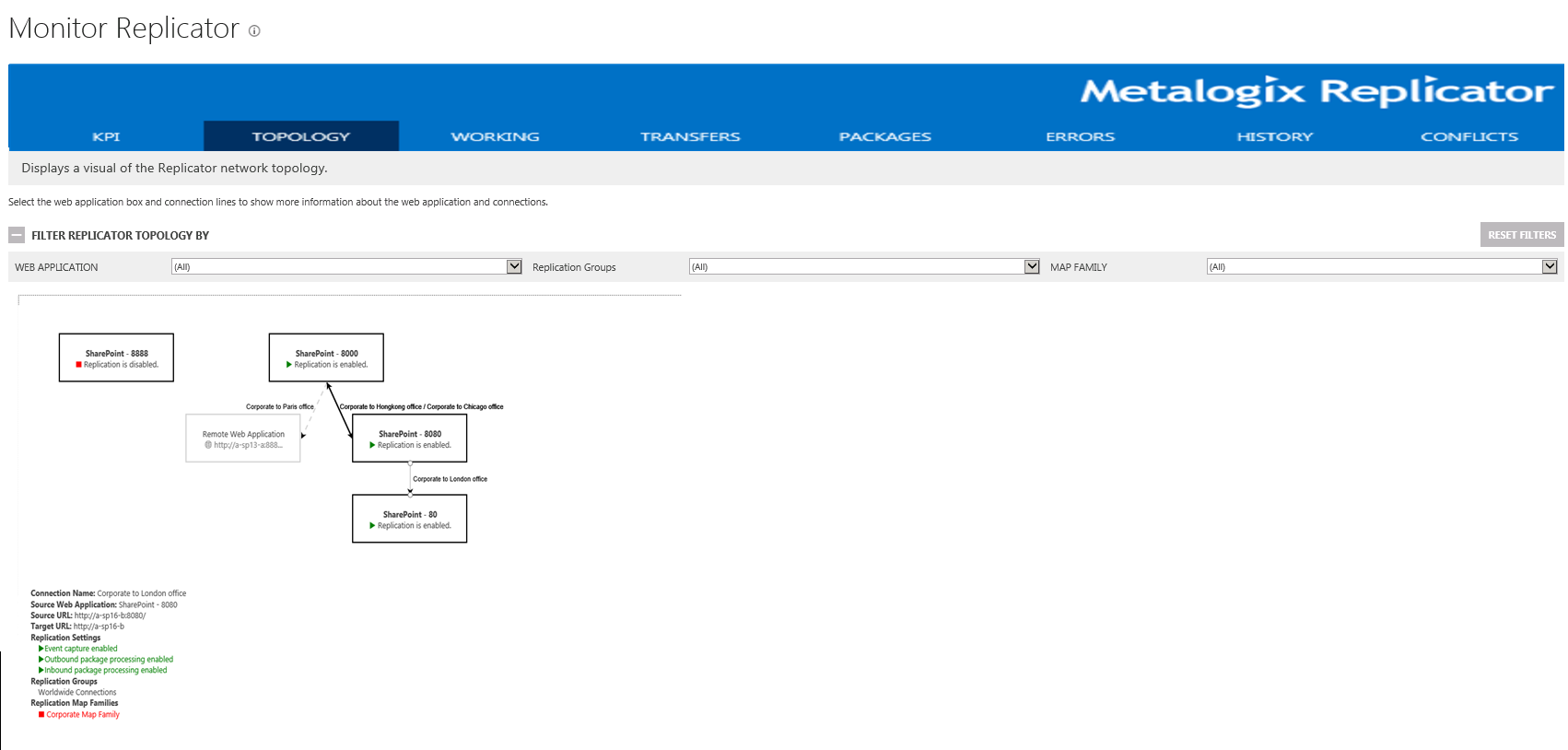

The Topology tab of the Monitor Replicator page displays a visual of your Replicator network topology. You can filter the topology by web application, replication groups, and/or map family.
topology 4

When you click on a Web Application, information about the status of that web application's replication settings will be shown.

If you select a connection line, details about that connection will be shown.

The various symbols and line shades within the topology diagram mean the following:

·Solid Grey Line Replicator connection has a map family which is disabled.

·Dashed Grey Line - Replicator connection is not used by any map family.

·Remote Web Application - The web application is not on the local farm.

·Red Pause button - Replication is disabled

·Green Triangle - Replication is enabled

Working

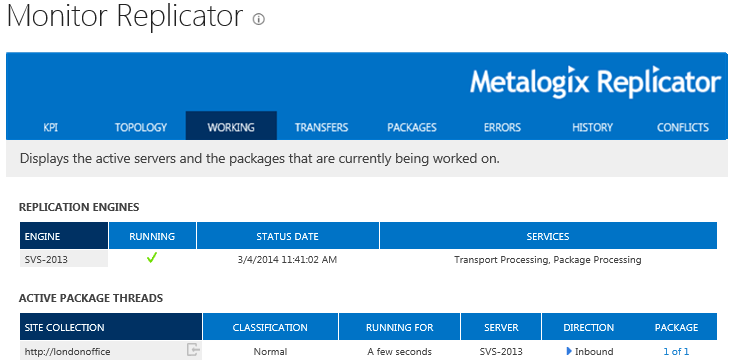

The Working tab of the Monitor Replicator page displays the active servers and packages that are currently being worked on by Replicator.

METALO~3_img139

Replication Engines

The Replication Engines section displays all the current servers on the web application.

METALO~3_img140

The following table details the information available for each active server:

Heading	Description
Engine	The engine name.
Running	Whether the engine is currently running.
Status Date	The time at which the current status for the engine was checked.
Services	The current services running on the engine.
