Replicator 7.4 - Reference Guide

Table of Contents

Metalogix Replicator Documentation Replicator Central Administration

Configure Web Application Manage Replication Groups Manage Replication Connections Manage Classifications Manage Map Families Monitor Replicator About Metalogix Replicator Opening Central Administration in UAC-enabled Environments

Configure Web Application

Web Application General Settings

Web Application Friendly Name Enable Replicator Configuring Replicator in UAC-enabled Environments

Domain and User Remapping

Enable Domain Remapping Remapping to Site Owner User Remapping Table

Maintenance Settings

Retain Completed Packages Log Maintenance Interval Event Processing Log Archiving

Package Processing Settings

Capture Events Pause Package Processing

Replicator Data Folders

Package Data Path DC Cache Path Replicator Data Folders are on a Network File Server User Account Password

Advanced Settings

External ID Replicator Passphrase

Manage Replication Groups

Add Group Set as Default for new Map Family Clear Default Group Remove Selected Group Update Replication Group Web Application

Configure Replication Group

Web Application Replication Group Settings Replication Group Name Replication Connections Replication Map Families

Manage Replication Connections

Configure Replication Connection

Web Application

Web Application

General Settings

Connection Name Transport

BITS Offline SFTP

Local SFTP Server Settings

Local SFTP Account Name Authentication Type Password for Password Authentication Public Encryption Key for Public Key Authentication Import Path

Target SFTP Server Settings

DNS Name Port User Name Authentication Type Password for Password Authentication Private Encryption Key for Public Key Authentication Target Import Folder Name

Package Status Update Settings

Target Web Application

Protocol DNS Name Server Port Domain, User Name, and Password Target Replicator Passphrase Ignore Remote Certificate Validation Warnings Test Connection

Replication Groups Conflict Settings

E-mail Notification

Compression Settings BITS Transports Settings

BITS Mode Kerberos Replication Mode Secondary URL Secondary User Name Secondary Password Ignore Remote Certification Validation Warning Test Connection

General Transport Settings

Maximum Retries Count Enable Pausing of Connections During Retry Process Retry Count Before Pausing Duration of Pause Replication Monitor Update Level

Package Processing Settings

Enable Event Capture Pause Outbound Packaging Pause Inbound Package Transfer Encrypt Replication Package

Priority Settings

Priority Expected Speed Actual Speed

Manage Classifications

Configure Classifications

Web Application Classification Settings

Manage Map Families

Web Application Add Map Family Remove Selected Map Family Replicate Now Reset Customized Maps

Configure Map Family

Web Application General Settings

Map Family Name Map Family Scope Root Replication Map URL Default Event Classification Maximum Events Per Pacakge Enable This Map Family

Replication Group

Select Replication Group Replication Mode

Replication Schedule

Immediately At Set Time Interval Daily Weekly Monthly Manually

Package File Format

Advanced Settings

Configure Replication Map Settings

General Settings

Enable this Replication Map Enable Replication Maps that inherit this Replication Map Inherit Replication Events, Connections and Rules

Replication Events

Advanced Web Application Events

Outbound Replication Connections

Advanced Settings

Excluding Content From Replication

Manage Map Family

Find a Single Replication Map Show Customized Replication Maps Reset Customized Maps Manage Content Synchronization Jobs

Content Synchronization Job Report

Configure Map Settings Manage Replication Rules

Manage Replication Rules

Configure Replication Rule General Settings All Rule Conditions

List Name Condition List Item Column Condition List Item Content Type Condition Folder Path Condition List Item File Size Condition List Item File Extension Condition

Rule Conditions Rule Actions All Rule Actions

Skip Event Skip Event and Delete Item on Target Change Event Classification Redirect to Selected Connection Redirect Using Lookup List Stop Processing Rules

Rule Finish Step

Rule Finish Rule Summary

Skipping Items in Document Libraries that use Custom Columns Complex Rule Logic Rule Examples

Uses for Rules Skip Replication when List Item Column does not Equal Approved (Example 1) Skipping Replication for Multiple Lists (Example 2)

Synchronize Content

Configure Content Synchronization Job

Replication Map Info Content Synchronization Job Name Content Synchronization Job Type Replication Events

Events for Queuing PowerShell Schedule-ReplicatorMap Examples

Content Synchronization Job Schedule

Monitor Replicator

System Health Replicator Configuration Replicator Health Local Package Status Global Package Status

Topology Working

Replication Engines Active Package Threads

Transfers Packages

Web Application Apply Filters Reset Filters Direction Local Status Global Status Group Connection Map Family Map Name Queue Set Name Classification Actions

Delete Filtered Packages Delete Selected Packages

Local Package Overview Local Transfer Statistics Download Event Log

Transaction Logging Cleaning the Event Processing Log

Data Disk Space Server System Statistics

Conflicts Package Details

Package Information Local Details Local Action Events Global Details Package Connections Package History Advanced Details

About Metalogix Replicator

Product Original Install Date Version Support License License Key License Type License Status License Last Refreshed Maintenance Expiration Update License Key Farm Name SharePoint Version Servers in this Farm running the web application service Support Information

Manage Map Families

Configure Map Family

Map Family Name Map Family Scope Map Family URL Enable this Map Family Select Replication Group Replication Schedule

Configure Map Settings

General Settings

Enable this Replication Map Inherit Replication Events, Connections and Rules From Parent Enable Replication Maps that Inherit this Replication Map

Advanced

Outbound Replication Connections Advanced Settings

Enable Column Matching

View Replication Maps

Synchronize Content

Events for Queuing Advanced Queue Replication Map Replication Report

Manage Replication Rules

Monitor Replication

Apply Filters Reset Filters Filters

Direction Local Status Global Status Replication Groups Replication Connections Replication Map Families Map Name Queue Set Name Classification

Clear Completed Clear Completed or Error Clear All Delete

Override Conflicts

Replication Status Column

Enabling the feature: Adding the Feature to a List or Library

Delete

Click METALO~3_img188 to remove a package from the current web application.

The columns on the Monitor Replication page are detailed below:

Column	Description
Direction	This is the direction in which the package was moved.
Map Name	This is the name of the map which contains the connection on which the package was sent.
Replication Group Name	This is the group which contains the connection on which the package was sent.
Classification	The Classification for the package.
Local Status	This is the local status of the package.
Status Date	This is the date on which the status occurred.
Global Status	This is the Global status of the package.
Queue Set Name	This name associates the package with a specific queue operation. Captured events have a queue set name of "Captured".
Created Date	The date on which the package was created.

Override Conflicts

A replication conflict occurs when Replicator tries to apply an event that is older than the corresponding SharePoint content on the inbound web application.

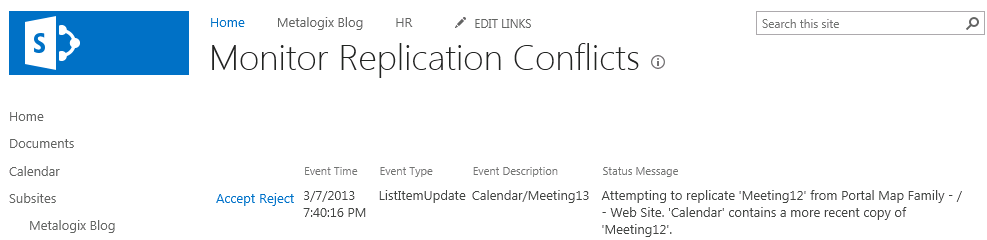

The Monitor Replication Conflicts page, which is accessed through Site Actions > Site Settings, shows replication events that are waiting for manual resolution before they can be replicated. Conflicting events will only appear on this page if you have configured your connections to have Replicator generate conflicts instead of automatically resolving conflicts. Also, the conflict is only visible on the web application where the inbound conflict was detected.

To resolve the conflict, select either Accept to apply the inbound event or Reject to discard the change.

METALO~3_img189

info

NOTE: Replication processing stops for the Web Application until the conflict is cleared. This page should be monitored regularly if the conflict setting for any web application is set to Generate Conflict.

Replication Status Column

This feature allows users to add a replication status column to their SharePoint sites, allowing them to view the replication status for lists and libraries.

Enabling the feature:

1.On your SharePoint site, go to site settings.

METALO~3_img190

2.Select Manage Site Features under Site Actions.

METALO~3_img191

3.Scroll down to Metalogix Replicator For SharePoint - Replication Status Event Receiver, and click Activate.

METALO~3_img192
