This section explains how to add a Microsoft 365 tenant and configure a domain rewrite project using On Demand Migration. During project setup an Office 365 Global Administrator account is initially required to add each tenant to the project.
Follow these steps to add each Microsoft 365 tenant for On Demand Migration. If there is an existing tenant from another project, it can be reused.
Log in to On Demand
Navigate to Tenants
Choose the Add Tenant button
Select Commerical Tenant, and choose Add Commerical or GCC Tenant and choose OK.
Log in to Office 365 with a Global Administrator account for the source tenant.
Accept the requested Application Permissions
Choose Finish
Repeat steps 2 – 8 for the target tenant
Follow these steps to setup the Domain Rewrite Project.
Log in to On Demand
Navigate to Migration
Select an existing migration project
Click on Domain Rewrite from the Project Dashboard
Once the On Demand Migration Domain Rewrite module is loaded, click on the Domain Rewrite icon in the main dash view.
Click the New Project button and bring up the project setup wizard
Provide a name and description for the project and click Next
Click on the New button to create a new environment or choose any existing environments from the list. Click Next once you have at least two environments selected.
Important Tip: When adding a new environment, On Demand will automatically detect if the tenant is Hybrid or Cloud Only. Hybrid Environments require additional configuration for each local Active Directory attached to the tenant.
Choose the source and target environments from the dropdown menu and click Next.
Configure the domain mapping for your project and click Next.
Important Tip: Domain Mapping will be used to match objects and allows On Demand Migration Domain Rewrite to add the source domain to all matched target objects.
Configure the attributes to use to match users and groups. Once complete, click Next
Important Tip: Multiple attributes can be selected and On Demand Migration will evaluate each one until it finds a matching source and target object. If more than one attribute is selected, the first attribute that matches is used.
If there are Hybrid Environments, download the Directory Sync agent and copy the Registration URL and Registration Keys for each environment. These will be used during the agent installation and configuration.
Select Yes, Let’s Do it to continue with Domain Rewrite project configuration.
Now we need to configure the DKIM signature for your domain.
Copy the DNS record into a notepad and create a TXT record for your domain. For the purpose of this guide we will create the TXT record for each domain in Azure DNS Zone.
Demo2.mcslab.qsftdemo.com
Demo3.mcslab.qsftdemo.com
On Demand Migration Domain Rewrite will validate the TXT record and update the DNS Publish Status. After the TXT Records are published, Click on Next to continue.
Important Tip: Each participating Accepted SMTP Domain from the source and target tenants will require to enable DKIM at the tenant level, additional information can be found at this Microsoft Link How to use DKIM for email in your custom domain - Office 365 | Microsoft Learn
Upload a SSL Certificate for each environment. On Demand Migration will ensure mail delivered during a domain rewrite is always encrypted, secure and private by using this SSL Certificate. Click Next once the certificates are uploaded.
Important Tip: A single subject certificate with both private and public key must be used.
Review the project configuration settings and click Next
Enter an email address and click on Start Discovery to finish the project setup
This section provides a step-by-step guide on how to validate object matching.
Log in to On Demand
Navigate to Migration, select the project and click on Domain Rewrite.
Select the Domain Rewrite project previously configured.
From the Domain Rewrite Project dashboard, verify the Users, Groups and Domain Matching information:
Click on the total users link to see all Users, then click on Filter and select the Matched checkbox.
Validate that the users are correctly matched, as shown below.
If the Domain Rewrite project is unable to automatically match the users by attributes, you can upload a user list to be used as a mapping file. This process will only update the users found in the file and will not impact any other users in your project.
Click Update to open the CSV upload wizard.
Click Download Example List.
Use this example file to build your mapping list.
Populate the Source UPN and Target UPN columns with the desired mappings.
You can leave the Wave column blank.
The mapping list can contain a maximum of 1000 lines. You can create multiple mapping files and rerun the wizard to upload additional mappings.
After building your list, save as a CSV file.
Click Select File.
Locate the CSV file and click Next.
If there are errors within the file, click Fix Errors Now to review the errors.
Download the CSV file of users with errors.
Examine the file and fix any errors found.
Re-upload the modified file.
If errors are still found, you can repeat this process as necessary.
You can also click Proceed As Is to ignore the accounts with errors and map the remaining users.
If there are no errors within the file, the upload is complete.
Validate that the users are correctly matched.
This section explains how to enable domain rewrite service for your users using On Demand Migration Domain Rewrite. Be sure to review the Frequently Asked Questions section.
Log in to On Demand
Navigate to Migration, select the project and click on Domain Rewrite.
Select the Domain Rewrite project previously configured.
Click on the Total Users link. Then select a matched user and click on the Email Rewrite drop down action menu. Click Apply Action.
Select Rewrite with Target Address option and click on Submit.

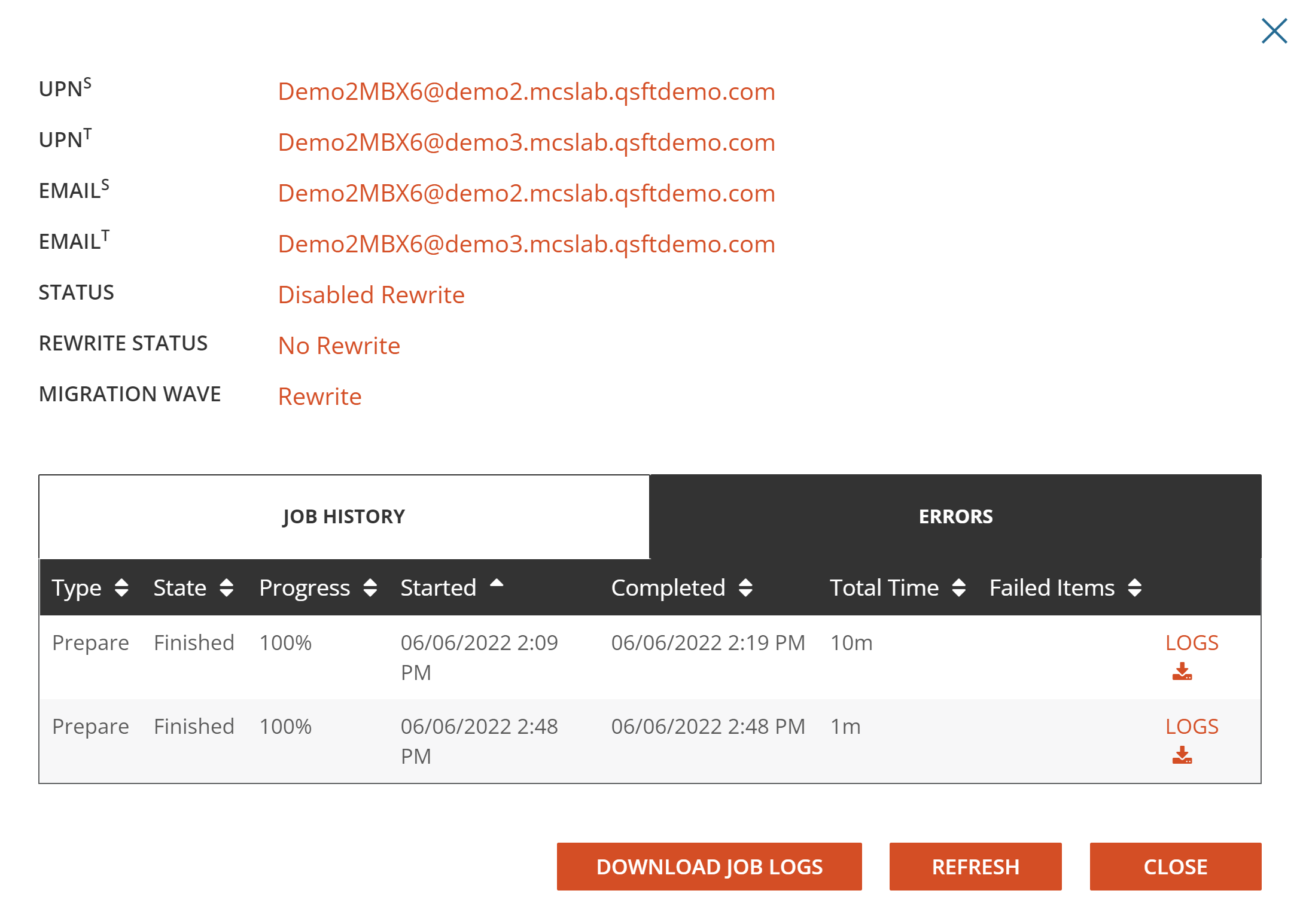

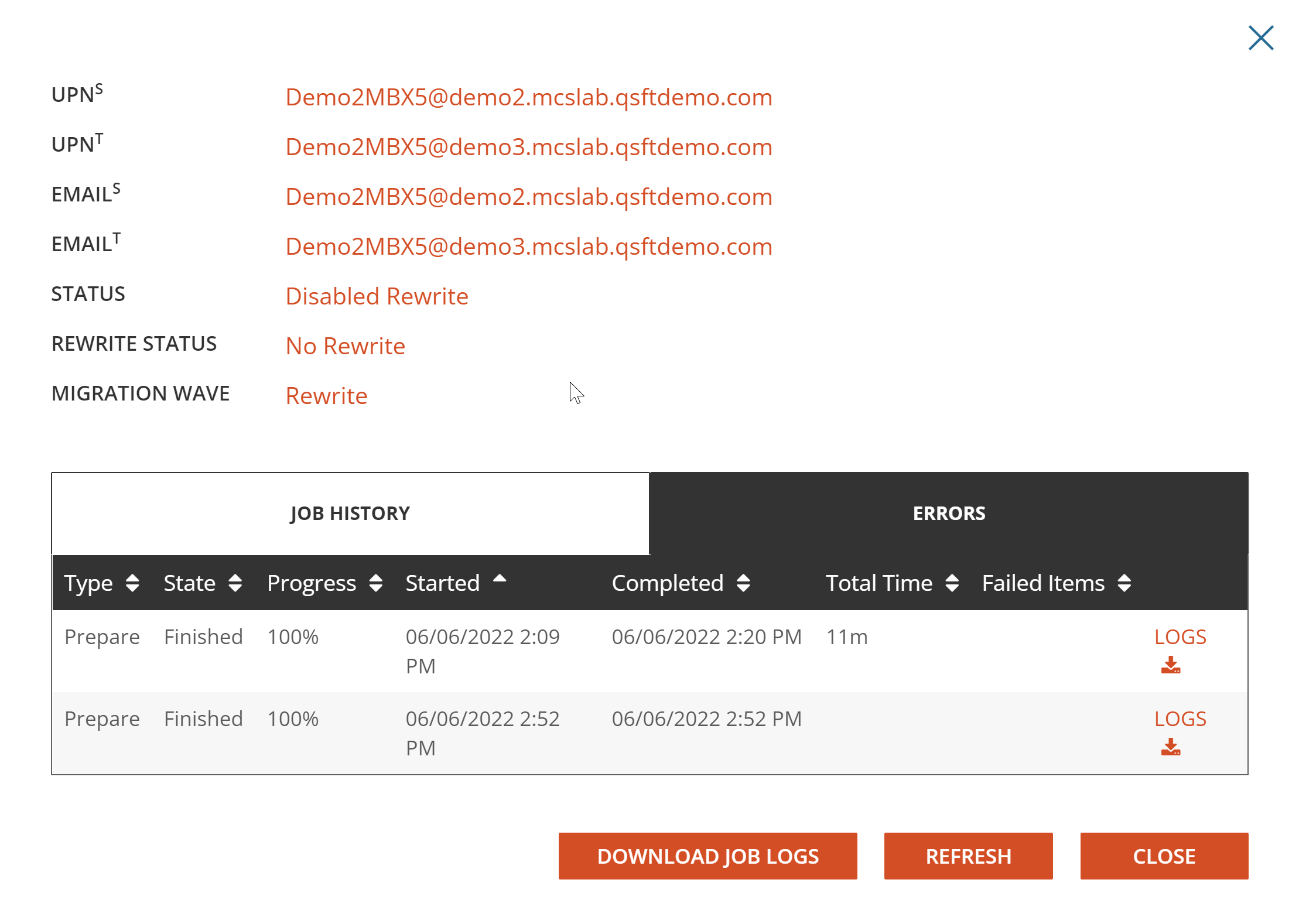

Allow the Email Rewrite Prepare job to finish. After the job is completed, the User Status should be set to Enabled Rewrite, and Rewrite Status should be set to Target Address.

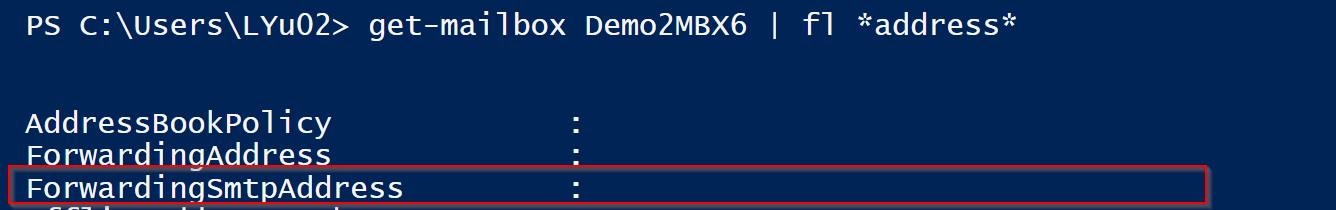

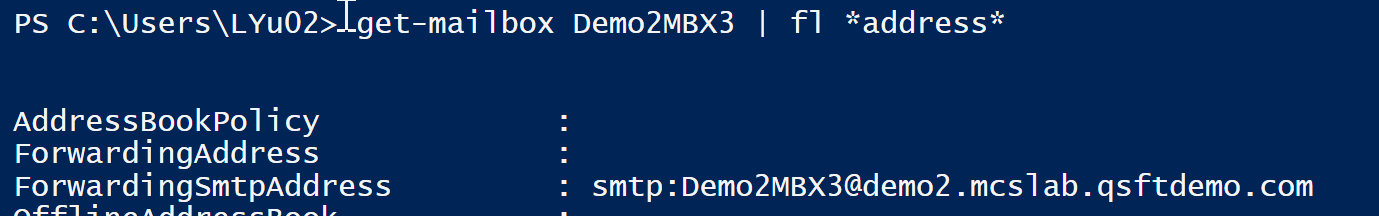

Review the prepare job log and validate the users setting in Exchange Online.
The target tenant mailbox should have a forwarding rule configured and pointed to the source mailbox’s PrimarySMTPAddress
The source tenant mailbox should be part of BT-InegrationPro-DayOne group
Log in to On Demand
Navigate to Migration, select the project and click on Domain Rewrite.
Select the Domain Rewrite project previously configured.
Click on the Total Users link. Then select a matched user and click on the Email Rwrite drop down action menu. Click Apply Action.
Select Rewrite with Source Address option and click on Submit.
Allow the Email Rewrite Prepare job to finish. After the job is completed, the User Status should be set to Enabled Rewrite, and Rewrite Status should be set to Source Address.
Review the prepare job log and validate the users setting in Exchange Online.
The Source tenant mailbox should have a forwarding rule configured and pointed to the target mailbox’s PrimarySMTPAddress
The source tenant mailbox should be part of BT-InegrationPro-DayTwo group
