Foglight APM for Real User Experience 5.9.9 - User Guide

Getting started with Foglight APM Monitoring transactions Viewing real user activity from a geographical perspective Assessing real user experiences during key sequences Monitoring the performance of web sites and endpoints Searching APM data Replaying sessions, hits, and sequences Visualizing search results Creating custom drag-and-drop dashboards APM tile and view reference

Overview of Detail views

Detail views are drill down views accessible from some tile views.
For more information about a specific view, see:
•
Application Server detail view
•
Host detail view
•
Pivot Breakdown detail view
•
Real User (APM) Performance detail view
•
Real User (FxM) Performance detail view
•
Synthetic Result detail view
•
Synthetic User Performance detail view
•
Virtual Machine detail view

Application Server detail view

The Application Server detail view provides a list of Request Types, as well as server information for the selected application server.

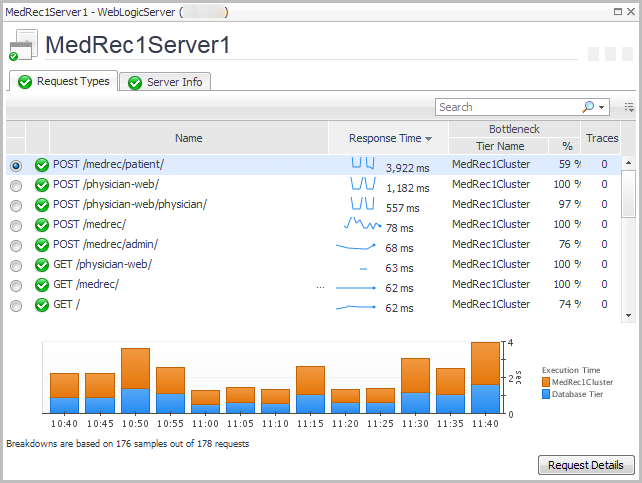

Figure 73. Example of an Application Server detail view
The Request Types tab lists the following information for each request type: request name, response time, bottleneck location (based on the most time-consuming tier of a request), calls completed, calls incomplete, call exceptions, and number of traces.
The chart shows the tier breakdown for the selected request.
The information presented on the Server Info tab depends on the type of application server selected: JBoss®, OracleAS, Apache Tomcat, WebSphere®, or WebLogic®.
Next Steps:
•
To drill down for detailed information about a selected request, click Request Details.

Host detail view

The Host detail view provides high-level host health, and tiles for any application components running on the selected host.
Figure 74. Example of a Host detail view
The banner shows host metrics if the host is monitored. Click More Details to see the performance details for the host.
If the host is not monitored, then:
•
If the host is not part of a Federated environment, and the Foglight Cartridge for Infrastructure is installed, click Add OS Monitor to configure host monitoring. For information, see the Foglight for Infrastructure User and Reference Guide.
•
If the host is a Federation Master, the banner shows a message indicating that the host is not monitored.
•
If the host is not part of a Federated environment, and the Cartridge for Infrastructure is not installed, the banner shows a message indicating that the Cartridge for Infrastructure is required for host monitoring.

Pivot Breakdown detail view

The Pivot Breakdown detail view provides a tile for each pivot type that is included in the pivot roll up tile you clicked. For example, for a web browser pivot roll up tile, the breakdown detail view can include tiles for each of the following browser types: Chrome™, Firefox®, Internet Explorer®, Mobile Devices, and Opera™.
Each tile displays: requests, request volume, overall health, performance and error status, and the last updated time. For more information, see Pivot tiles.

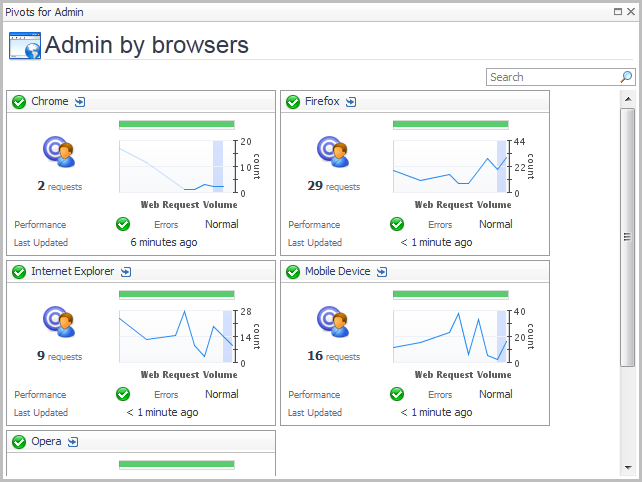

Figure 75. Example of a Pivot Breakdown detail view
From here you can:
•
Click the title bar of any single pivot tile in this view to open a Hits and Pages tabs view.
