Understanding the DR Series system hardware and data operations

Data is stored and resides on the DR Series system hardware appliances (two-rack unit (RU) appliances), which have DR Series system software pre-installed.

The DR Series system hardware consists of a total of 14 drives. Two of these drives are 2.5-inch drives that are configured as a Redundant Array of Independent Disks (RAID) 1 on the RAID Controller, and this is considered to be volume 1. On the DR4000 system, these drives are internal; while in the DR4100, DR6000, DR4300e core and standard, DR4300, and DR6300 systems, these drives are accessible from the rear of the appliance. The data that is being backed up is stored on the 12 virtual disks that reside on the DR Series system. The DR Series system also supports additional storage in the form of external expansion shelf enclosures (see the DR Series Expansion Shelf section in this topic). The hot-swappable data drives that are attached to the RAID controller are configured as:

  • 11 drives that operate as RAID 6, which act as virtual-disks for data storage (drives 1–11).
  • The remaining drive (drive 0) acts as the global hot-spare drive for RAID 6 for the system for the DR4000, DR4100 and DR6000 and a dedicated hot spare for the DR4300e core and standard, DR4300, and DR6300.

The DR Series system supports RAID 6, which allows the appliance to continue read and write requests to the RAID array virtual disks even in the event of up to two concurrent disk failures, providing protection to your mission-critical data. In this way, the system design supports double-data drive failure survivability.

If the system detects that one of the 11 virtual drives has failed, then the dedicated hot spare (drive slot 0) becomes an active member of the RAID group. Data is then automatically copied to the hot spare as it acts as the replacement for the failed drive. The dedicated hot spare remains inactive until it is called upon to replace a failed drive. This scenario is usually encountered when a faulty data drive is replaced. The hot spare can act as replacement for both internal mirrored drives and the RAID 6 drive arrays.

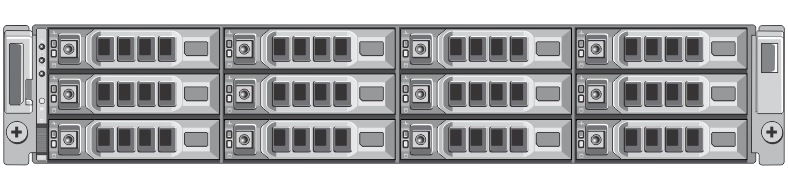

Figure 1: DR Series System Drive Slot Locations

The figure shows the DR Series system drive slot locations.

Drive 0 (top) Drive 3 (top) Drive 6 (top) Drive 9 (top)
Drive 1 (middle) Drive 4 (middle) Drive 7 (middle) Drive 10 (middle)
Drive 2 (bottom) Drive 5 (bottom) Drive 8 (bottom) Drive 11 (bottom)

DR Series expansion shelf

The DR Series hardware system appliance supports the installation and connection of Dell PowerVault MD1200 (for DR4000, DR4100, and DR6000) and Dell PowerVault MD1400 (for DR4300e core and standard, DR4300, and DR6300 systems) data storage expansion shelf enclosures. Each expansion shelf contains 12 physical disks in an enclosure, which provides additional data storage capacity for the basic DR Series system. The supported data storage expansion shelves can be added in a variety of capacities based on your DR Series system version; for details, see the DR Series System Interoperability Guide.

The physical disks in each expansion shelf are required to be Dell-certified Serial Attached SCSI (SAS) drives, and the physical drives in the expansion shelf uses slots 1–11 configured as RAID 6, with slot 0 being a global hot spare (GHS). When being configured, the first expansion shelf is identified as Enclosure 1 (in the case where two enclosures are added, these would be Enclosure 1 and Enclosure 2). Adding an expansion shelf to support the DR Series system requires a license.

NOTE: The 300 Gigabyte (GB) drive capacity (2.7 TB) version of the DR Series system does not support the addition of expansion shelf enclosures.

NOTE: If you are running a DR Series system with an installed release of system software prior to 2.1, and you intend to upgrade to release 3.x or 4.x system software and add an external expansion shelf (or shelves), Quest recommends that you observe the following best practice sequence of operations to avoid any issues:

  • Upgrade the DR Series system with the release 3.x system software
  • Power off the DR Series system.
  • Connect the external expansion shelf (or shelves) with cabling to the DR Series system.
  • Power on the external expansion shelf (or shelves).
  • Power on the DR Series system.

NOTE: If you install an expansion shelf enclosure to support a DR Series system, each shelf must use physical disks that have a capacity equal to or greater than each DR Series system internal drive slot capacity (0–11) that they are supporting.

Figure 2: DR Series System Expansion Shelf (MD1200) Drive Slot Locations

The figure shows the DR Series system expansion shelf (MD1200)
    drive slot locations.

Drive 0 (top) Drive 3 (top) Drive 6 (top) Drive 9 (top)
Drive 1 (middle) Drive 4 (middle) Drive 7 (middle) Drive 10 (middle)
Drive 2 (bottom) Drive 5 (bottom) Drive 8 (bottom) Drive 11 (bottom)

Understanding the process for adding a DR Series expansion shelf

The process for adding an expansion shelf requires the following:

  • Physically adding or installing the expansion shelf.
  • Cabling the expansion shelf to the DR Series system (for more information, see the topic, “Understanding DR Series system hardware expansion shelf cabling”).
  • Installing the license for the expansion shelf.
  • Using the DR Series system GUI (System Configuration page) to add or detect the expansion shelf (for more information, see the topic, “Viewing and adding a DR Series system expansion shelf”).

Understanding DR Series system hardware expansion shelf cabling

The DR Series system hardware appliance is capable of supporting additional storage capacity by connecting Dell PowerVault MD1200 (DR4000, DR4100, DR6000) or Dell PowerVault MD1400 (DR4300e core and standard, DR4300, DR6300) data storage expansion shelf enclosures. The expansion shelf enclosure contains 12 physical disks that provide additional data storage capacity for a basic DR Series system. For the expansion unit limits and supported capacities, see the DR Series System Interoperability Guide.

As an example, this section and the following figures display the recommended method for cabling between the DR Series system’s PERC controller card to the appropriate connectors on the rear of a Dell PowerVault MD1200 expansion shelf enclosure.

Make sure that the Dell PowerVault MD1200 front panel selector switch is set to its Unified mode (with the switch set to its “up” position, indicated by a single Volume icon). The first figure below shows the SAS In ports on the Enclosure Management Module (EMM) on the rear of the Dell MD1200. The next figure shows the recommended redundant path cabling configuration, which includes cable connections from both PERC H800 connectors on the DR4000 system (or the PERC H810 on a DR4100/DR6000 system) to the two SAS In ports on the EMM rear chassis of the Dell PowerVault MD1200.

If you plan on installing multiple expansion shelf enclosures, then the two SAS In ports on the rear chassis of the EMM on the additional enclosure are daisy-chained to the two SAS Out ports on the EMM rear chassis on the first enclosure. This is considered a redundant mode connection via the SAS In/Out connectors on the enclosures with the DR Series system appliance.

If you install multiple enclosures and cable them as described here, make sure to set the enclosure mode switch on the MD1200 front chassis to the top (unified mode) position. For more information, see the Dell PowerVault MD1200 and MD1220 Storage Enclosures Hardware Owner's Manual or the Dell Storage MD1400 Enclosures Hardware Owner’s Manual at dell.com/support/manuals.

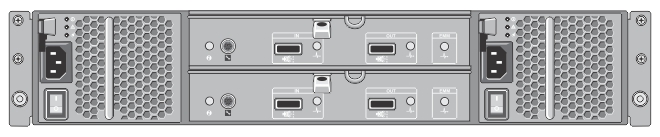

Figure 3: Dell PowerVault MD1200 Rear Chassis

This figure shows the rear chassis of the EMM on the MD1200
    enclosure, with the two SAS In and two SAS Out ports.

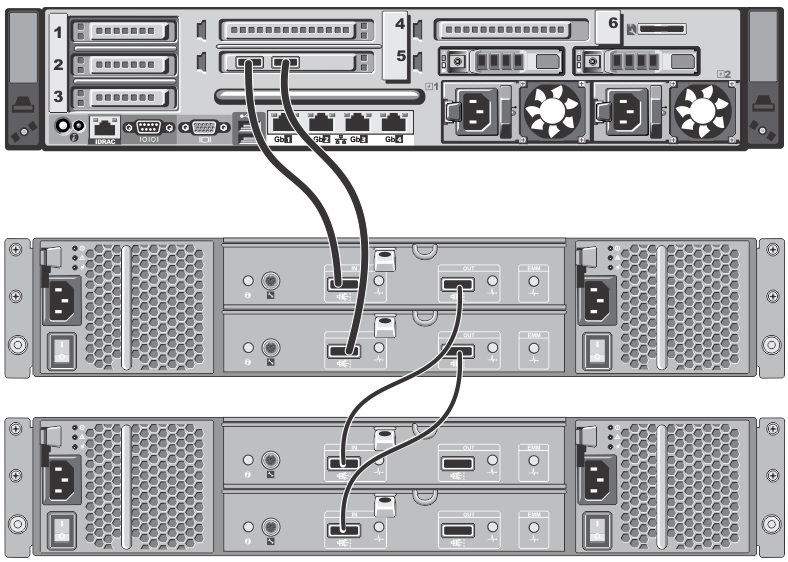

Figure 4: Unified Mode Daisy-Chained Redundant Path Dell PowerVault MD1200 Enclosures

This figure shows the PERC H810 connector cable connections
    between a DR4100 system rear chassis to the first expansion enclosure, and the
    cable connections from the first expansion enclosure to the second one using
    the SAS In/Out ports.

Figure 5: SAS Port and Cable Connections (Dell PowerVault MD1200 EMM)

This figure shows how an SAS cable connection is made to an SAS
    In/Out port: 1) SAS cable, and 2) cable pull-tab.

  1. SAS cable
  2. pull-tab

For the DR4300e core and standard, DR4300, and DR6300, the Dell Storage MD1400 expansion shelf enclosure is used for data storage expansion. The MD1400 has 4 ports in each controller or EMM; and, it is recommended to use ports 1 and 2 on the MD1400.

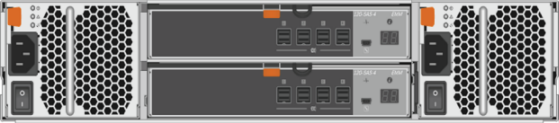

Figure 6: Dell Storage MD1400 Rear Chassis

This photograph shows the Dell Storage MD1400 rear chassis.

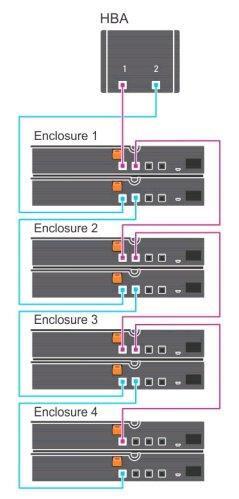

Figure 7: Daisy-Chained Redundant Path Dell Storage MD1400 Enclosures

This is an illustration of a daisy-chained redundant path for
    the Dell Storage MD1400 enclosures.

Supported software and hardware

For a complete list of the latest supported software and hardware for the DR Series system, refer to the DR Series System Interoperability Guide. You can download this guide by visiting support.quest.com/dr-series, selecting your specific DR model and then navigating to Technical Documentation.

The DR Series System Interoperability Guide includes the following supported hardware and software categories:

  • Hardware
    • BIOS
    • RAID controllers
    • Hard drives (internal)
    • Hard drives (external)
    • Expansion unit limits
    • Fibre Channel controllers

    • USB flash drives
    • Network interface controllers
    • iDRAC Enterprise
    • Marvell WAM controller
  • Software
    • Operating systems
    • Supported virtual environments for the DR2000v system
    • Supported backup software
    • Network file protocols and backup client operating systems
    • Supported iSCSI initiators
    • Supported NAS filers for NDMP and for FC
    • Supported web browsers
    • Supported system limits
    • Supported OST software and components
    • Supported RDS software and components
    • Supported Rapid NFS and Rapid CIFS software and components

Terminal emulation applications

To access the DR Series system command line interface (CLI), the following terminal emulation applications can be used:

  • FoxTerm
  • Win32 console
  • PuTTY
  • Tera Term Pro

NOTE: The listed terminal emulation applications are not the only ones that work with the DR Series system. This list is only intended to provide examples of terminal emulation applications that can be used.

Setting up the DR Series system

You can interact with the DR Series system hardware using one of two supported methods: the system graphical user interface (GUI) accessed in a web browser or the command line interface (CLI) accessed by using a terminal emulator application (for example, PuTTY). Before you can interact with your system, you must first, however, ensure that the DR Series system is properly set up.

NOTE: The topics in this section apply to DR Series hardware systems. For information about setting up the virtual DR Series system, DR2000v, see the DR2000v Deployment Guide and the DR Series System Interoperability Guide. For more information on the DR Series system CLI commands, see the DR Series System Command Line Reference Guide.
