Foglight for Sybase 5.7.5.40 - User and Reference Guide

Using Foglight for Sybase
Exploring the Sybase Dashboards About the Sybase_MDA Agent About the Sybase_RS Agent Generating SybaseMDA Reports
Reference About us

Using Foglight for Sybase

Previous Next



Using Foglight for Sybase

The Sybase cartridge monitors the Sybase database activity. It contains three major components:

Sybase cartridge dashboards provide a visual representation of the status of the major components of the Sybase database. They allow you to determine any potential bottlenecks in database performance. For more information, see Exploring the Sybase Dashboards.
Sybase_MDA Agents monitor the collection of data by the Sybase Web-enabled relational database management system.

The Sybase_MDA Agent identifies potential resource bottlenecks, investigates current server problems, and tunes the server.The Sybase_MDA Agent also allows you to select a “monitoring level” (called Availability, Performance, Configuration and Trend). Each level is associated with a group of tables and their associated collection. By default, Availability is activated and all others are turned off. A user can optionally select Performance, Configuration or Trend to tune the agent to collect the metrics important to their environment.

Some of the functions that are available with the Sybase_MDA Agent are:

For more information, see About the Sybase_MDA Agent.

Sybase_RS Agents provide a consolidated view of all database instances within a Sybase server.

The Sybase_RS Agent monitors the Replication Server on the host it is deployed on. The agent collects internal performance and availability metrics by connecting to the Replication Server directly and from its related RSSD database via a connection to the respective Adaptive Server. The agent monitors Replication Server health, internal threads, partitions (space and status), connections, and exceptions. It also scans the external error log of the Replication Server looking for any default or user defined errors.

In addition, the Sybase_RS Agent also gathers availability information of the Replication Agent (RepAgent) from the primary sites (Adaptive Servers / databases) connected directly to this Replication Server as well as latency information from the Replicate Sites (Adaptive Servers / databases) controlled directly from this Replication Server.

For more information, see About the Sybase_RS Agent.

Exploring the Sybase Dashboards

Previous Next


Using Foglight for Sybase > Exploring the Sybase Dashboards

Exploring the Sybase Dashboards

The Foglight for Sybase includes dashboards which aid in the monitoring, analysis, and investigation of Sybase performance.

These dashboards provide the status of the major components of the Sybase agents. They allow you to determine any potential bottlenecks in database performance.

Accessing the Sybase Dashboards

Previous Next



Accessing the Sybase Dashboards

To access the Sybase dashboards:
1
On the navigation panel, under Dashboards, click one of the following:
SYBA: Sybase_MDA to display the list of Sybase_MDA Agent views. See Views for details.
SYBA: Sybase_RS to display the list of Sybase_RS Agent views. See Views for details.
SybaseMDA > Sybase MDA Global View to display the Sybase MDA Global View Dashboard.
SybaseMDA > Sybase MDA Global View, from there, click a Sybase_MDA agent instance to display the MDA Home Page Dashboard.
SybaseMDA > Sybase MDA Global View, from there, click a Sybase_RS agent instance to display the RS Home Page Dashboard.
2
On the navigation panel, under Homes, click Databases to display the Databases Dashboard.

Sybase MDA Global View Dashboard

Previous Next


Using Foglight for Sybase > Exploring the Sybase Dashboards > Sybase MDA Global View Dashboard

Sybase MDA Global View Dashboard

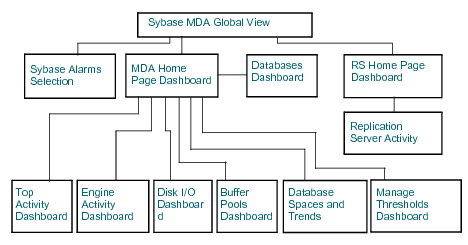

This Sybase Global View dashboard provides many drilldowns for Sybase agents. An overview of the dashboard navigation is shown below.

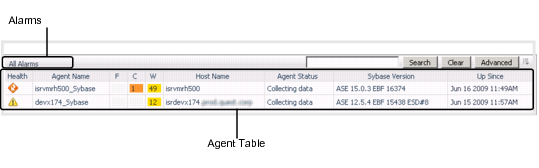

The Sybase Global View dashboard is comprised of two parts:

From the Sybase Agent Table, you can drill down to Sybase Agents Home Pages.

Figure 1. Sybase Agents Home Pages
