Title

How to collect metrics on Java Methods?
Description

How to collect metrics on Java Methods?
Resolution

Please follow the steps below:
1. Go to the Foglight dashboard2 Application Servers | Administration | Application Servers Administration"
2. Click "Java Administration" and select "Agent Configuration" tab.
3. Create backup of configuration.
4. Click "Configuration" again and "Edit Instrumentation Settings"
5. Now select "NamedMethods" tab and click "Edit" to the right of NamedMethods.
6. Add a "Named Method", type in the name of named method and click "Ok".
7. The "Settings Editor" refreshes and a table appears on the right.
8. Click "Add" and a row will be added to the method list table.
9. Click in the "Name" box and type the name of the method.

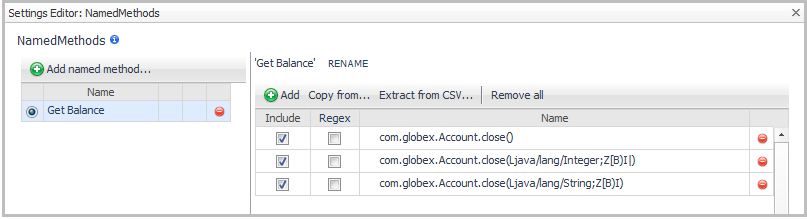

In the example below, a method group is defined that uses similar methods. "Get Balance" is displayed in the user interface and all the methods within that group are aggregated.
NamedMethods = {
"Get Balance": MethodList(
include "com.globex.Account.close()",
include "com.globex.Account.close(Ljava/lang/Integer;Z[B)I|)”,
include "com.globex.Account.close(Ljava/lang/String;Z[B)I)",
),
}
10. Repeat the above steps 7 and 8 to add more methods.

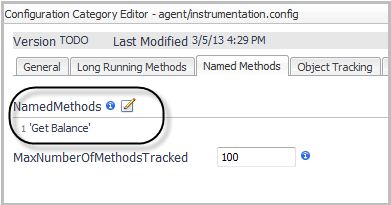

11. Click "Ok" after adding all the methods and the "Settings Editor" will close. The named method appears in the list on the "Named Methods" tab of the "Configuration Category Editor".
12. Click "Save".
Attachments

NamedMethod
Additional Information

1. Specify the fully qualified class name, method name, and/or method arguments in the agent configuration profile to define a method. 2. Make a backup of default agent profile before editing. 3. Restart the instrumented application servers after editing the instrumentation configuration (agent/instrumentation.config) in order for the changes to take effect. 4. These settings are valid only for FullDetail and ComponentDetail Instrumentation Levels. Changing the values will have no effect if the Instrumentation Level is BasicDetail or NoDetail. The instrumentation level can be still set on the General page of the Configuration Category Editor for the agent instrumentation profile.
