Optimization for Pre-ASE 15 Tab

Optimization Settings for Pre-ASE 15

Preferences > Optimization for Pre-ASE 15 Tab > Optimization Settings for Pre-ASE 15

The Optimization for Pre-ASE 15 tab on the Preferences window consists of 5 buttons that allow users to select the level of optimization intelligence and options for optimization while using the SQL Optimizer module when connected to Adaptive Server 12.5.2 or earlier.



Related Topic

Intelligence (Pre-ASE 15)

Preferences > Optimization for Pre-ASE 15 Tab > Intelligence (Pre-ASE 15)

Intelligence (Optimization for Pre-ASE 15 Tab)

The Intelligence page on the Optimization tab of the Preferences window allows you to select your optimization intelligence settings.

Optimization intelligence settings enables you to either choose the settings used during optimization or allows you to select the predefined "Intelligence Level" settings.

Custom

Customize the settings on the Optimization, Forces, and Quota pages.

Predefined

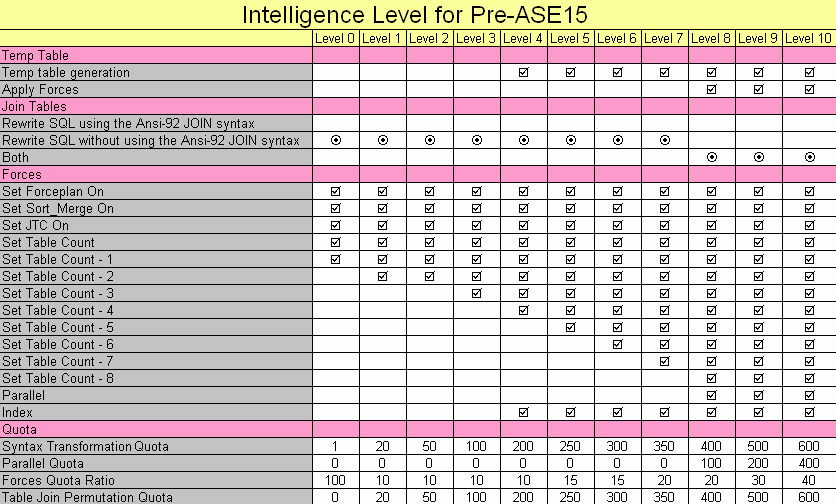

Use the predefined optimization intelligence levels. The items selected on the Forces and Quota pages and the Temp table generation option on the Optimization page change according to the level selected. Levels range from 0 to 10. The higher the level the more intelligent the SQL Optimizer is and the more likely of finding a better SQL alternative.

The Abstract Plan settings on the Abstract Plan page and the Join table and Advanced SQL transformation options on the Optimization page is adjusted independent of the optimization intelligence level.



Related Topics

Optimization

Preferences > Optimization for ASE 15 Tab > Optimization

Optimization (Optimization Tab)

The Optimization page on the Optimization tab of the Preferences window allows you to decide which SQL syntax to use for the table joins, whether to apply some the advanced SQL transformation rules, and if you would like the SQL Optimizer to generate alternatives that use temporary tables.

Temp table

Temp table generation

If selected, alternative SQL statements that use temporary tables to obtain the exact same results may be generated during the optimization process.

Apply selected forces to temp table SQL

If selected, forces are applied to the SQL statement that create and use the temporary table. This option is only available if the Temp table generation checkbox is selected.

Join tables (for ASE 15 or later)

Rewrite SQL using the same JOIN syntax as the original SQL

Specify that the alternative SQL statements join the tables in the FROM clause using the same SQL syntax that is used in the original SQL statement. If the original SQL statement contains both syntax types, then the optimization process will rewrite the syntax using the Ansi-92 JOIN syntax. The outer join is not including in this conversion.

Rewrite SQL using the Ansi-92 JOIN syntax

Specify to use the JOIN clause from the Ansi-92 SQL standard when generating the SQL alternatives. During the optimization, the SQL statement is converted to the Ansi-92 SQL standard and then SQL syntax transformation rules are applied to rewrite the converted SQL statement. Next, the ASE optimization forces, goals, and criteria are applied to the original SQL and the transformed SQL. So you may see SQL alternatives that use the JOIN syntax from the original SQL and not the Ansi-92 JOIN syntax, but these SQL alternatives are simply the original SQL with the ASE optimization options applied.

The outer join is not including in this conversion because Ansi-92 OUTER JOIN syntax does not always retrieve the same result set as the outer join using the (+) operator. So to avoid producing the wrong result set, the conversion of the outer join syntax cannot be applied.

For example:

SELECT DPT_ID

FROM EMPLOYEE

INNER JOIN DEPARTMENT

ON EMP_DEPT = DPT_ID

Rewrite SQL without using the Ansi-92 JOIN syntax

Specify to join tables in the FROM clause without the JOIN syntax or using comma. The join analysis occurs in the WHERE clause which specifies the column in one table that is compared to a column in another table. During the optimization, the SQL statement is converted from the Ansi-92 SQL standard and then SQL syntax transformation rules are applied to rewrite the converted SQL. Next, the ASE optimization forces, goals, and criteria are applied to the original SQL and the transformed SQL. So you may see SQL alternatives that use the JOIN syntax from the original SQL, but these SQL alternatives are simply the original SQL with the ASE optimization options applied.

The outer join is not including in this conversion because Ansi-92 OUTER JOIN syntax does not always retrieve the same result set as the outer join using the (+) operator. So to avoid producing the wrong result set, the conversion of the outer join syntax cannot be applied.

For example:

SELECT DPT_ID

FROM EMPLOYEE,

DEPARTMENT

WHERE DPT_ID = EMP_DEPT



Rewrite SQL with and without using the ANSI-92 JOIN syntax

Specify to join tables using either one of the JOIN syntax methods. The OUTER JOIN is not including in this conversion because Ansi-92 JOIN syntax is needed to define an OUTER JOIN.

Advanced SQL transformation

Enable transformation that adds COALESCE.

Specify to apply the SQL syntax transformation rule that adds COALESCE to a column. When the data is retrieved, the COALSECE function, which in this case is not actually doing anything to change the value of the column, causes a full table scan or the database to pick another index to use. For example:



SELECT *

FROM EMPLOYEE,

DEPARTMENT

WHERE COALESCE(DPT_ID, DPT_ID) = EMP_DEPT
