Quest Protect 6.1.0 - User Guide

Repositories table

The Repositories table shows a list of central locations in which backup snapshot data captured from your monitored Rapid Recovery environment is stored and managed.


Table 5. Description of the Repositories table
Data displayed
•
Repository Name. Shows the display name of repository.

•
Core. Shows the Core server in which the repository is stored and managed.

•
Days Remaining. Indicates when the storage gets fully occupied.

•
Capacity. Shows the total capacity on the storage.

•
Free. Shows the free capacity on the storage.

•
Compression. Shows the percentage of compression.

•
Deduplication. Shows the percentage of deduplication.





Events Tab - Rapid Recovery

The Events view of the Protection dashboard shows events for the Core, a specific protected or replicated machine in the monitored Rapid Recovery environment. The Events view includes the following three tabs:

•
Tasks tab: A task is an event related to a job. A job is a process that the Rapid Recovery Core must perform. Each job has a current state, and a start and end time and date. Some tasks are initiated manually or scheduled by the user. Examples include forcing a snapshot, scheduling a backup, or performing a restore from a recovery point. Other tasks are automatic functions, such as running nightly jobs, or performing rollup using the default retention policy.
•
Alerts tab: An alert is a priority event, such as an error, warning, or important informational message. If you request notifications of any specific events, these notifications appear in the Alerts subset.
•
Journal tab: The Journal tab shows a complete list of all logged events (for the Core, or the selected machine, as appropriate). This list is more comprehensive, showing jobs, high priority events, and lower priority events. This category includes passive and non-job events (such as the Core starting successfully, or reporting status from the license portal).

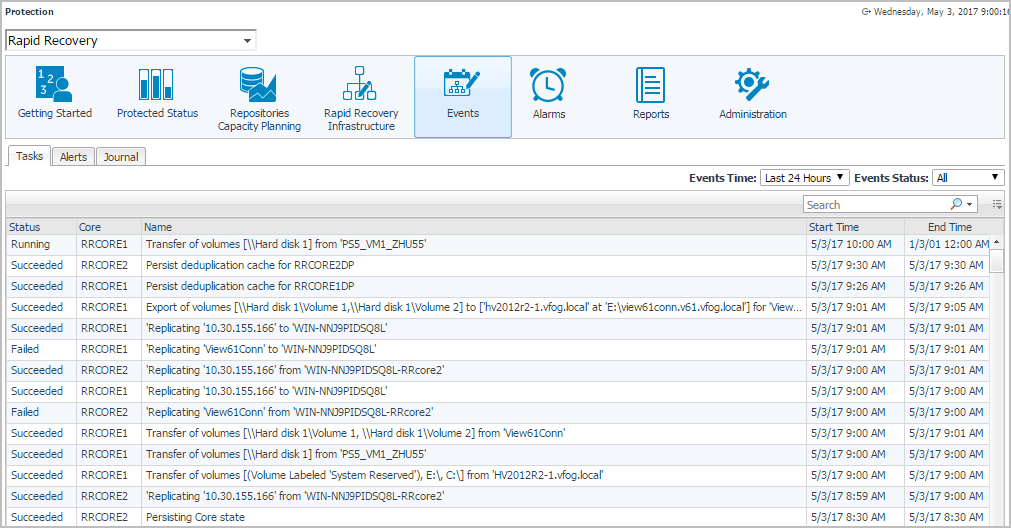

Figure 8. Events view

To access the Events view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Events tab.
The Events view appears at the bottom of the Protection dashboard.

Tasks tab

A task is a job that the Rapid Recovery Core must perform, such as transferring data in a regularly scheduled backup, or performing a restore from a recovery point. The Tasks tab opens by default when navigating to the Events view.

The Tasks tab includes the following elements:

•
Events Time: Allows you to filter events based on the following options: Last 1 Hour, Last 4 Hours, Last 12 Hours (default option), Last 48 Hours, This Week, and Last Week.
•
Events Status: Allows you to filter events based on the following options: All (default option), Successful, and Failed.
•
Tasks table:
Data displayed
•
Status. Indicates whether this task is Succeeded or Failed.

•
Core. Shows the display name of this Rapid Recovery Core.

•
Name. Shows the task type for this protected machine. Examples include transfer of volumes, The task name. This field lists the task type for this protected machine. Examples include transfer of volumes, maintaining repository, rolling up, and so on.

•
Start Time. Indicates the time when this task starts.

•
End Time. Indicates the time when this task ends.

Alerts tab

An alert is a priority notification of an event. Any event for which you specifically requested notification appears in the list of alerts, along with errors, warnings, or important informational messages. To access the Alerts tab, click Alerts in the Events view.

The Alerts tab includes the following elements:

•
Events Time: Allows you to filter alerts based on the following options: Last 1 Hour, Last 4 Hours, Last 12 Hours (default option), Last 48 Hours, This Week, and Last Week.
•
Events Level: Allows you to filter alerts based on the following options: All (default option), Error, Info, and Warning.
•
Alerts table:
Data displayed
•
Level. Indicates whether this alert is Info, Warning, or Error.

•
Core. Shows the display name of this Rapid Recovery Core.

•
Date. Indicates the date when this alert occurs.

•
Message. Shows the detailed message of this alert.
