Quest Protect 1.5 - User Guide

Unmonitored Veeam Protected Virtual Machines table

The Unmonitored Veeam Protected Virtual Machines table shows a list of virtual machines that have backup files on the Veeam Backup Servers, but not monitored by the Foglight for VMware.



Table 9. Description of the Unmonitored Veeam Protected Virtual Machines table
Data displayed
•
Name. Shows the display name of Veeam Backup Server, cluster, or virtual machine.

•
Last Job Status. Indicates whether the machine connectivity is last job is Success, Warning, or Failed.

•
Last Success. Indicates the time of last success job.

•
Protected Space. Indicates the amount of protected storage space.



Repositories Capacity Planning Tab - Veeam

The Repositories Capacity Planning view of the Protection dashboard shows the information about repositories in which backup snapshot data captured from your monitored protection environment is stored and managed. The Repositories Capacity Planning view includes the following two elements:

•
Repositories table: For more information, see Repositories table.
•
Filter menu: Allows you to filter the repositories based on the following options: Show All (default option), 10 days, 30 days, 60 days, and 90 days.

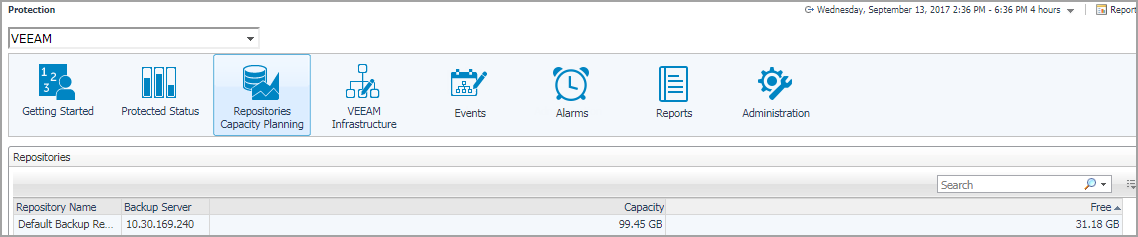

Figure 11. Repositories Capacity Planning view

To access the Repositories Capacity Planning view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Repositories Capacity Planning tab.
The Repositories Capacity Planning view appears at the bottom of the Protection dashboard.

Repositories table

The Repositories table shows a list of central locations in which backup snapshot data captured from your monitored Veeam environment is stored and managed.


Table 10. Description of the Repositories table
Data displayed
•
Repository Name. Shows the display name of repository.

•
Backup Server. Shows the Backup Server in which the repository is stored and managed.

•
Capacity. Shows the total capacity on the storage.

•
Free. Shows the free capacity on the storage.





Veeam Infrastructure Tab

The Veeam Infrastructure view of the Protection dashboard shows the infrastructure of the service scoped Veeam Backup servers. The Veeam Infrastructure view includes the following two tables:

•
Backup Servers: For more information, see Backup Servers table.
•
Veeam Protected VMs: For more information, see Veeam Protected VMs table.

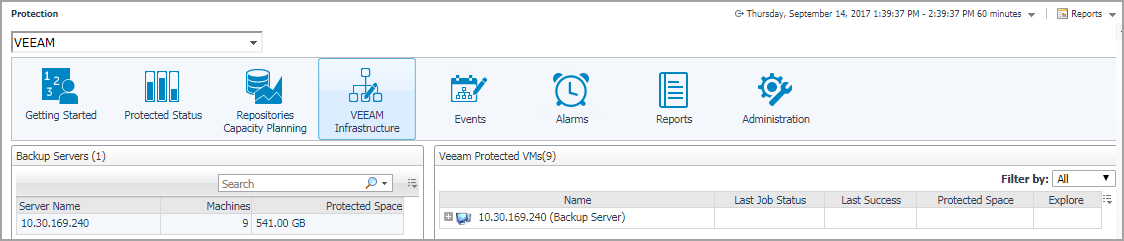

Figure 12. Veeam Infrastructure view

To access the Veeam Infrastructure view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Veeam Infrastructure tab.
The Veeam Infrastructure view appears at the bottom of the Protection dashboard.
