Role-based access to manage storage devices


Table 79. Role-based access to storage device management
Storage device management
MSP administrator
Tenant administrator
Tenant user

Device Activity

X





Manage Device - List View

X

X



Manage Device - Tree View

X





Manage Snapshot Array Manager

X

X



Manage Tape Libraries

X





Manage RAS Devices

X





Monitoring device activity

You can use the Device Activity page to monitor data flows and data transfer rates for devices that are in use.

To view device activity:
1
In the Navigation pane, click Device Activity.
2
On the Device Activity page, you can view the following information.

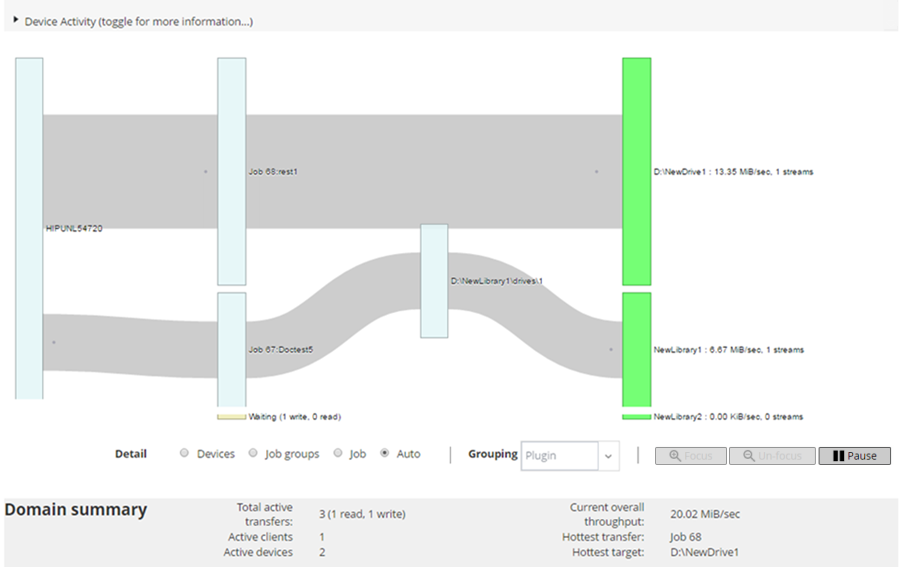

Figure 27. Device Activity page

Table 80. Device Activity page
Item
Description

Device activity

This area shows data transfers from clients to jobs on the left and jobs to storage devices on the right. Gray lines depict data flow; the thicker the line, the higher the rate of flow. Boxes represent clients, jobs, and devices; the taller the box, the higher the rate of flow.

You can use the following settings available in the Detail area to modify the data flow view:

•
Devices: Select this option to view data transfers from all jobs to a storage device.
•
Job groups: Select this option to view data transfers from a job group (plug-in or policy) to a storage device. The job group can be selected in the Grouping list.
•
Job: Select this option to view data transfers from client to jobs and from jobs to storage devices.
•
Focus and Un-focus: Use these buttons to show and hide data flow details for a specific device. Click the device box, and click Focus. To hide the details for that device, click Un-focus.
•
Pause and Play: Use these buttons to pause and resume data flow updates. To stop data flow updates, click Pause, and to resume updates, click Play.

The transfer rate shows “unknown” for backups running on older NetVault Clients.

Summary

This area shows the following information: total active transfers, active clients, active devices, current overall throughput, hottest transfer, and hottest target.

You can click a box representing the client, job, or storage device in the Device Activity area to view information about that component.

3
To perform a job-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

On the Manage Devices page, you can view the list of storage devices as a List View or Tree View. Select Remember this selection to save your choice. By default, List View is selected.

Managing disk-based storage devices in list view

This section includes the following topics:

•
Viewing disk device details
•
Managing a Quest DR Series system, QoreStor, or Data Domain system
•
Checking the status of a disk-based storage device
•
Changing the status of a disk-based storage device
•
Scanning a disk-based storage device
•
Removing all savesets from a disk-based storage device
•
Removing a disk-based storage device

Viewing disk device details

To view disk device details:
1
In the Navigation pane, click Manage Devices.
You can view the list of storage devices added to the NetVault Server. The device status is indicated using the following icons.

Table 81. Device status icons
Icon
Description

Device is online and available for use.

Device is offline. NetVault is able to detect the device, but unable to access it for backup or restore jobs.

Device is unavailable. NetVault is unable to detect the device.

2
To view the details of a particular device, click the corresponding Manage Device icon .
On the <Type> Device Management page, you can view the following information:
•
Device details: The Device details area shows the following information:
DR Series systems and Data Domain systems:
•
Name: The name of the storage device. The name is derived from the container name and the DNS name or IP address of the device.
•
Status: The status of the device. AVAILABLE specifies that the device is available for backups and restores, while OFFLINE specifies that the device is unavailable and cannot be used for backups or restores.
•
Data Stored: The total amount of data stored on the device.
•
Space Used: The total space used by the NetVault Servers to which this device has been added.
•
Space Available: The total disk space available on the storage device.
•
Deduplication ratio: The Deduplication Ratio is calculated as follows:
Deduplication ratio = Data Deduplicated / Disk Used by Deduplicated Data
The Deduplication ratio is not displayed for DR Series systems.
NetVault SmartDisk devices:
•
Name: The name of the storage device. The name is derived from the host name and IP address of the device.
•
Status: The status of the device. AVAILABLE specifies that the device is available for backups and restores, while OFFLINE specifies that the device is unavailable and cannot be used for backups or restores.
•
Data Stored: The total amount of data stored on the device.
•
Space Used: The total space used by the NetVault Servers to which this device has been added.
•
Data Deduplicated: The total amount of data that has been submitted for deduplication.
•
Data In Staging: The amount of data stored in the Staging Store.
•
Space Available: The total disk space available on the storage device.
This option shows the total disk space available across all configured Storage Volumes regardless of their deny/favor configuration. It does not include the Garbage Collection Reserve or Last Resort Threshold (LRT).
•
Deduplication ratio: The Deduplication Ratio is calculated as follows:
Deduplication ratio = Data Deduplicated / Disk Used by Deduplicated Data
•
Staging Status: The status of the Staging Store. It can be one of the following:
•
AVAILABLE: Staging Store is available for writing.
•
FULL: Staging Store is full; no more space is available for writing.
•
UNAVAILABLE: Disk index is unavailable.
•
UNLICENCED: NetVault SmartDisk is not licensed, the license has expired, or the license limit has exceeded.
•
NONE: The status is unknown.
•
Storage Status: The status of the Storage space. It can be one of the following:
•
AVAILABLE: Storage is available for deduplication and rehydration.
•
FULL: Storage is full; no more space is available for data deduplication.
•
UNAVAILABLE: Chunk Index is unavailable; no data deduplication or rehydration is available.
•
UNLICENCED: NetVault SmartDisk is not licensed, the license has expired, or the license limit has exceeded.
•
NONE: The status is unknown.
•
Group: The media group name. “None” indicates that the device is not added to any group. To add the device to a storage group, click the Edit icon, and in the Edit Media Group dialog box, specify the media group name. Click Save to save the details and close the dialog box.
•
Version: The version number of the device.
•
License Type: License type being used.
•
License Capacity: License capacity.
•
License Expiration: License validity period.
•
Dedupe Licensed: If the deduplication option is licensed.
•
Garbage Collection State: The current phase of Garbage Collection.
•
Deduplication Queue Length: The number of elements or NetVault segments currently waiting to be deduplicated.
•
Activity chart: This area shows the activity graph if the device is in use by a backup or restore job.
•
Job details: This area shows the following information about the active jobs:
•
Data transfer rate.
•
Name or title of the job, job ID number, instance ID number, and phase ID number (1 or 2).
3
To perform a device-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.
