The Foglight data model

This section provides an introduction to models and discusses the Foglight data model.

What are models?

In general, models are abstractions that capture the essence of the objects they are supposed to represent. A good model looks and behaves like the real thing, at least in certain ways. If a model were perfect in every respect, it would be indistinguishable from the real thing. Thus, we could pose questions, submit these in some way to the model, and obtain the same, or almost the same, results as we would by doing those things to the real object. If the object under consideration undergoes a change, the model would have to change accordingly in order to faithfully represent that object.

The data model used in the Management Server is constructed to do just that. The data sent to the Management Server changes with time, not only because the measurements on properties change, but because the objects themselves may come and go. So, a data model for use with the Management Server must be designed to accommodate the creation of objects, by placing them in a well-designed model hierarchy. Objects have relationships among themselves, and a good model accounts for those relationships.

To the Management Server, models are collections of related data objects. The totality of data objects in existence at any one time is referred to as the “data model”.

You can examine the dynamic data objects in the data browser (Dashboards > Configuration > Data > Management Server > All Data).

Who needs to know about models?

Knowledge of the data model is beneficial if you are performing one of the tasks listed in the following table.

If the data is not already available from existing agents, create an agent to collect the data and install it on target systems. One way is to create a formatted script that writes to STDOUT, upload the script, build a script agent, and then deploy and activate the agent. Consult Quest’s Professional Services organization.
NOTE: You can use any executable on the client system that writes to STDOUT. All you need is a script to launch the application.

Modeling process overview

In this guide, modeling refers to the process of creating new in-memory models. This process can include the creation of:

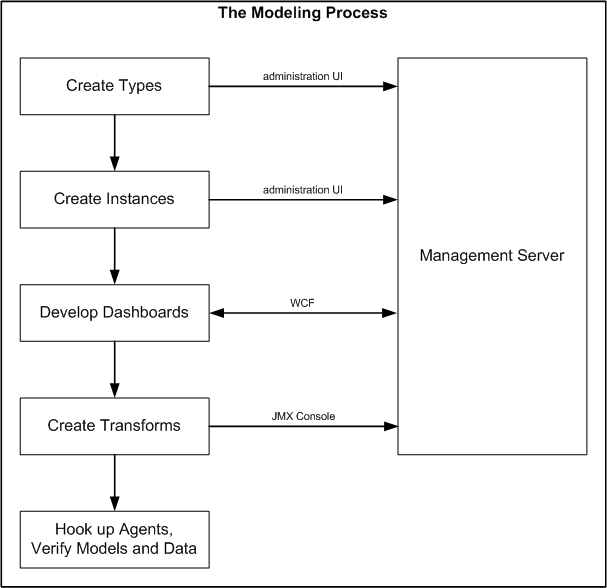

The modeling process is illustrated in the following diagram.

You develop models to organize and convey the relationships that exist among the pieces of monitoring data, so that they can be presented visually in dashboards.

The first step in the modeling process is to define the static types that are used to represent the data. These form the core data types of the data model. Once these types are defined, it is possible to represent them in a schema, and these types can be seen in the Schema Browser dashboard.

You define types by creating a topology type XML file. You can deploy the XML file to the Management Server using the administration UI. The Management Server handles versioning of the types.

The second step in the modeling process is to define instances of those types. Currently, you can only create instances of types using Groovy scripts.

The third step in the modeling process is to create dashboards using WCF. You can perform dashboard creation with just the types deployed, as long as the type definitions include metric definitions. However, it is difficult to test the dashboards without instances.

Once you have built dashboards and they are operating on test data, it is time to start using agents and enable transformations (fourth step in the modeling process). The transformations translate collected data into the topology object instances specified in the second step.

Ideally, the final-form agent is feature complete and collecting data when you reach this step.
