Foglight 6.1.0 - User Guide

Getting Started Viewing, Acknowledging, and Clearing Alarms Viewing, Creating, and Managing Alarm Templates Monitoring Your Domains Monitoring Your Services Monitoring Your Hosts Reporting on Your Enterprise

Online-Only Topics

Seeing a visual summary of your active hosts

The Active Hosts Summary dashboard displays information about each active host in a separate view. A host becomes active when its memory usage is greater than 0%.

This dashboard is useful when you have a small number of hosts and want to see a visual summary of them.

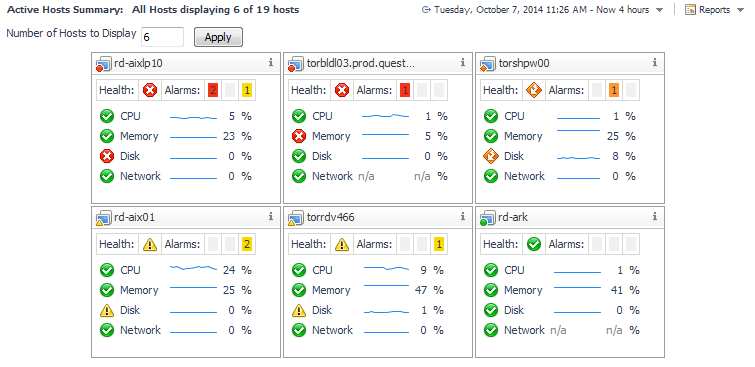

Figure 61. The Active Hosts Summary dashboard.

If you have a large number of hosts, you can use the Hosts dashboard, or use the Active Hosts Summary dashboard as a portlet in a custom dashboard and configure custom dashboards for each set of hosts. For information about creating custom dashboards using a selected dashboard, see Creating a Custom Dashboard Based on the Current Dashboard on page 82.

To choose how many hosts to display in the summary:
•
In the Number of Hosts to Display box, type the number and click Apply.

If you have a large number of active hosts in your environment, you can filter your list of services by specifying a domain of interest. For example, you may want to focus on only the Windows services in your environment.

To filter your list of active hosts:
1
On the Action panel, open the General tab, click Service Selector.
2
Click the Filter Hosts By Service check box.
3
Select a Service domain.
The list of active hosts is refreshed to display the specified domain.
For more information, see Getting Started with Foglight.


Online-Only Topics

Viewing the Performance of a Single Host

The Host Resource dashboard provides a detailed full-page view of the performance of a single host. It contains charts and tables that provide details about CPU, memory, disk I/O, and network utilization.

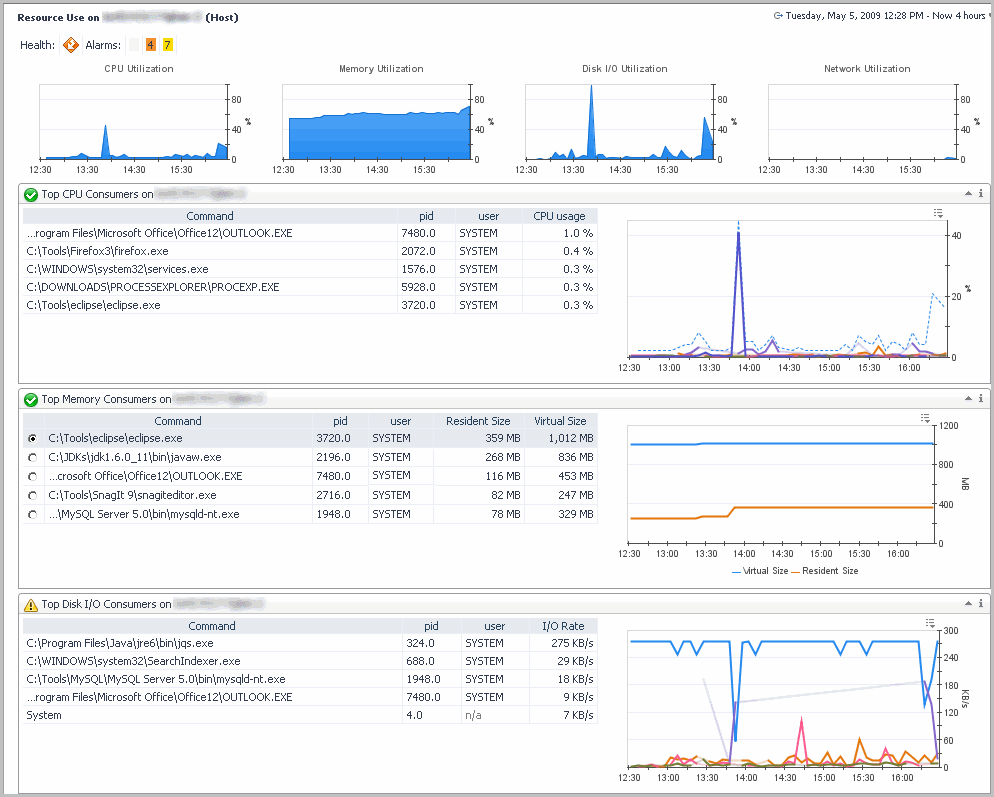

Figure 62. The Host Resource dashboard.

The name of the current host is at the top-left of the dashboard. To see data for another physical host, click Physical Host Selector in the action panel to open the Physical Host Selector dialog box, where you can choose another host.



Online-Only Topics

Viewing Details about a Single Host

The Host Browser dashboard is similar to the Agents browser, except that it shows the agents for only one host at a time. It contains two views: Agents Running on <host> and Outstanding Alarm(s) for <host>.

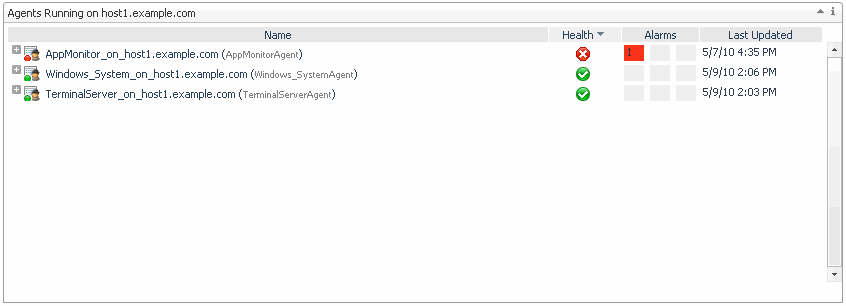

Figure 63. The Agents Running on <host> view,

The name of the current host is at the top-left of the dashboard. To see data for another physical host, click Physical Host Selector in the action panel to open the Physical Host Selector dialog, where you can choose another host.

The Outstanding Alarms view displayed at the bottom half of the dashboard is a common view in Quest Foglight. For information about working with alarms, see Viewing, Acknowledging, and Clearing Alarms.



Online-Only Topics

Reviewing Host Property Details

The Host Monitor dashboard displays detailed information about a monitored host. You access this dashboard from the navigation panel, under Dashboards > Hosts > Host Monitor.

This dashboard is useful when you want to view a high-level summary of the performance of a host. From here, you can drill down to explore any of the hosts properties in full detail.

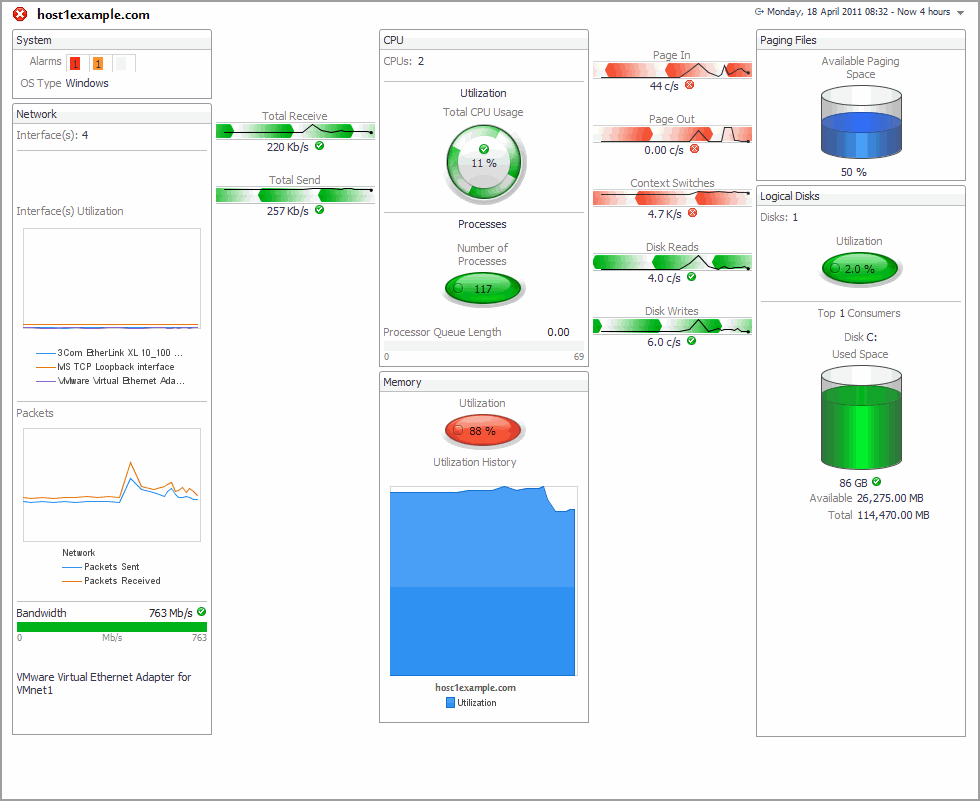

Figure 64. The Host Monitor dashboard.

To view the property details for another host running in your environment, open the navigation panel, and select a host from the Physical Host Selector.

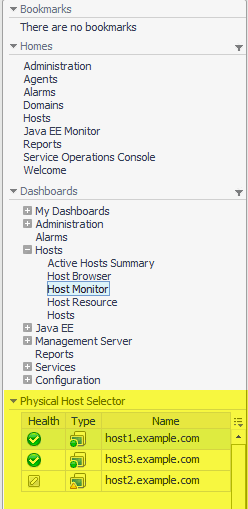

Figure 65. Select a host from the Physical Host Selector in the left navigation panel.
