Foglight for Oracle (Cartridge) 5.9.5.10

Table 14. Required Configurations
Monitor switches for version 9.5 to 9.7	Monitoring parameters for version 9.7.0.1 or above*
UOW STATEMENT LOCK SORT TABLE BUFFERPOOL TIMESTAMP	MON_REQ_METRICS MON_ACT_METRICS MON_OBJ_METRICS

*Should be set to at least the base level.

Permissions

Table 15. Permissions — All versions
General
ADMIN_CMD ENV_GET_PROD_INFO DB_PARTITIONS ENV_GET_SYS_INFO SNAP_GET_APPL_INFO SNAP_GET_BP SNAP_GET_APPL SNAP_GET_BP_PART SNAP_GET_DBM SNAP_GET_HADR SNAP_GET_DBM_MEMORY_POOL SNAP_GET_FCM_PART SNAP_GET_STMT SNAP_GET_LOCKWAIT SNAP_GET_SWITCHES SNAP_GET_STORAGE_PATHS PD_GET_DIAG_HIST

Table 16. Permissions — Version-specific
9.5	9.7.0.1	10.1
SNAP_GET_DB_V91	ENV_GET_SYSTEM_RESOURCES	ENV_GET_SYSTEM_RESOURCES
SNAP_GET_TAB_V91	MON_GET_PKG_CACHE_STMT	MON_GET_PKG_CACHE_STMT
SNAP_GET_TBSP_V91	MON_FORMAT_LOCK_NAME	MON_FORMAT_LOCK_NAME
SNAP_GET_CONTAINER_V91	WLM_GET_SERVICE_CLASS_AGENTS_V97	WLM_GET_SERVICE_CLASS_AGENTS
SNAP_GET_DYN_SQL_V91	MON_GET_WORKLOAD	MON_GET_WORKLOAD
	MON_GET_TABLESPACE	MON_GET_TABLESPACE
	ENV_GET_DB2_SYSTEM_RESOURCES	ENV_GET_DB2_SYSTEM_RESOURCES
	ON_GET_SERVICE_SUBCLASS_DETAILS	MON_GET_SERVICE_SUBCLASS_DETAILS
	MON_FORMAT_XML_TIMES_BY_ROW	MON_FORMAT_XML_TIMES_BY_ROW
	MON_GET_UNIT_OF_WORK	MON_GET_UNIT_OF_WORK
	MON_GET_BUFFERPOOL	MON_GET_BUFFERPOOL
	MON_GET_TABLE	MON_GET_TABLE
	MON_GET_CONTAINER	MON_GET_CONTAINER
	MON_GET_FCM_CONNECTION_LIST	MON_GET_FCM_CONNECTION_LIST
	MON_GET_CONNECTION	MON_GET_CONNECTION
		MON_GET_MEMORY_POOL
		MON_GET_MEMORY_SET
	SNAP_GET_TBSP_V91	SNAP_GET_TBSP
	SNAP_GET_DB_V91	MON_GET_TRANSACTION_LOG
		SNAP_GET_DB DB2_GET_INSTANCE_INFO ADMIN_GET_STORAGE_PATHS

Table 17. Permissions - 10.5 and later
10.5 and later
ENV_GET_SYSTEM_RESOURCES MON_GET_INSTANCE MON_FORMAT_LOCK_NAME MON_GET_PKG_CACHE_STMT MON_GET_AGENT MON_GET_WORKLOAD ENV_GET_DB2_SYSTEM_RESOURCES MON_GET_DATABASE ADMIN_GET_STORAGE_PATHS DB2_GET_INSTANCE_INFO MON_GET_TRANSACTION_LOG MON_GET_CONNECTION MON_GET_FCM_CONNECTION_LIST MON_GET_CONTAINER MON_GET_TABLE MON_GET_BUFFERPOOL MON_GET_UNIT_OF_WORK MON_FORMAT_XML_TIMES_BY_ROW MON_GET_SERVICE_SUBCLASS_DETAILS MON_GET_TABLESPACE MON_GET_MEMORY_POOL MON_GET_MEMORY_SET

Grant Select on these SYSIBMADM administrative views:

•

•

•

•

•

•

•

•

•

SYSIBMADM.ENV_PROD_INFO

* For DB2 version 9.7.0.1 or later

PureScale environments

Grant Execute on to these table functions:

•

MON_GET_CF

•

MON_GET_GROUP_BUFFERPOOL

•

BP_HITRATIO

Grant Select on these views:

•

ENV_CF_SYS_RESOURCES

•

SNAPDB

•

SYSIBMADM.DB2_MEMBER

Permissions for Azure SQL Database

Foglight for Azure SQL can be used for granting permissions on several levels.

The following sections detail the permissions that can be granted to users of Azure SQL at each level, and instruct how to manually run the grant privileges script.

Granting Permissions to Azure SQL Users

Database-level Permissions

The following permissions are granted at the database level:

•

CREATE USER—the lowest permission level, which only allows accessing each database for reading its metadata.


	IMPORTANT: The CREATE USER permission does not come as part of the script, as the command is not supported as part of a batch in Azure SQL.

•

VIEW DATABASE STATE—required for reading metadata information.

•

db_datareader—allows creating user-defined SQL queries for monitoring purposes, via the User-defined Collections global administration screen.

Running the Grant Permissions Script

The file used for granting permissions manually, SQLAzureGrantPrivilegesScript.sql, can be downloaded by clicking the link View script under the Instances table, accessible via either of the following methods:

•

When running the Monitor Azure SQL Database wizard, the script link is in the Insufficient Privileges dialog screen.

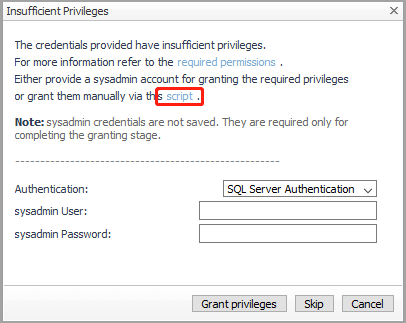

Figure 2. Insufficient Privileges dialog

•

In the Cartridges - Components for Download screen.

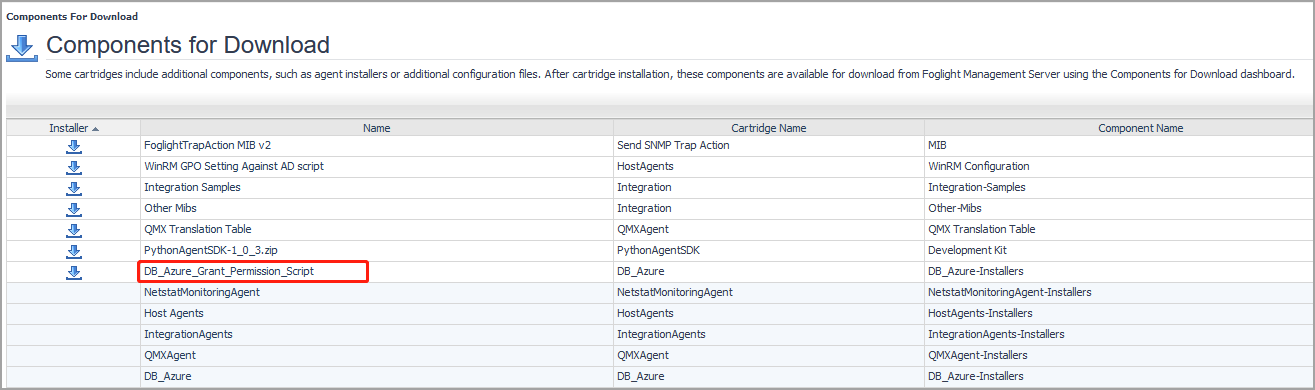

Figure 3. Components for Download


	IMPORTANT: Running this file requires one of the following server roles: - Server admin - Active Directory admin - Member of the db_owner

To manually run the Grant Permissions script:

Run the CREATE USER command on a database to be monitored.

Upon successful completion of this command, the login becomes a user in the specific database, and therefore able to read the database’s metadata.

Open the DBSS_Azure_Permissions_User_Databases.sql file in SQL Server Management Studio (SSMS).

Find the Select@LoginName = ? section at the beginning of this file.

Replace the question mark with the login name to which the requested permissions are to be assigned.

Execute the script.

Permissions for monitored operating systems

For details, see the following topics:

•

General Unix requirements

•

VMware permissions

•

Windows permissions

General Unix requirements

The OS user account for each agent requires:

•

Silent log-in — in particular, there must be no user-input required and no special login banners displayed

•

For connections using SSH, the sshd daemon must be installed and running.

In addition to these general UNIX® system requirements, each agent user account requires additional privileges depending on the operating system, as specified in the following table.


	NOTE: When monitoring DB2, SYSMON role and privileges for OS user is not required but is recommended to allow the installation to provide more information when discovering DB2 databases.

Linux/UNIX permissions

Table 18. Linux/UNIX Permissions
Permission	Linux®	Solaris®	AIX®	HP-UX
Execute	awk df free getconf head hostname iostat lsnrctl netstat ps sed tail sysstat uname uptime vmstat /proc/	awk db2ptree df head hostname iostat lsnrctl mpstat uptime netstat pagesize ps psrinfo tail uname vmstat /usr/sbin/prtconf	awk df head hostname iostat lsattr lsdev lsnrctl netstat oslevel pagesize ps tail uname uptime vmstat	awk bdf bindprocessor getconf head hostname ioscan iostat lsattr lsdev lsnrctl netstat oslevel pagesize ps sar tail uname uptime vmstat /usr/sbin/
Read	cpuinfo free* getconf sysstat package* /proc /proc/cpuinfo* /proc/net/dev /proc/stat /proc/vmstat on Linux >= 2.6			/var/adm/syslog/syslog.log

VMware permissions

To monitor VMware®, users must have read only access to the virtual center.

Windows permissions

Foglight support monitoring Windows® operating system in one of two ways: WinRM and WMI. The preferred method is WinRM when no WinRM connection WMI connection is used.

WinRM (default) - Based on Kerberos authentication or Basic authentication uses standard HTTP headers. For more information, see http://support.quest.com/technical-documents/foglight-agent-manager/5.9.5/foglight-agent-manager-guide/advanced-system-configuration-and-troubleshooting/configuring-windows-remote-management-winrm.

WMI (fallback) — Permission to access both DCOM and WMI. For more information, see

http://support.quest.com/technical-documents/foglight-agent-manager/5.9.5/foglight-agent-manager-guide/advanced-system-configuration-and-troubleshooting/configuring-windows-management-instrumentation-wmi.
