Foglight for Hyper-V 5.8.3 - User Guide

About Foglight for Hyper-V Agent administration Performance monitoring with the Hyper-V Environment dashboard Performance investigation with the Hyper-V Explorer Foglight for Hyper-V alarms Appendix: Hyper-V Agent error codes

Automating Hyper-V administration with workflows

A workflow is a collection of tasks arranged into a specific order, that you can run multiple times against the same or different set of objects. It provides a way to automate common scenarios and simplify administration in general. Use the Workflows view on the Hyper-V Administration tab to create and manage server workflows.

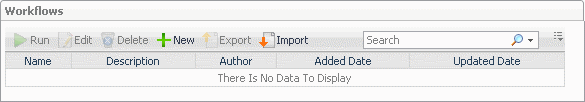

Figure 250. Workflows view

To create or edit a workflow:
1
Select a server or a virtual machine object instance and open the Hyper-V Explorer Administration tab.

*
TIP: For instructions, see To access the Hyper-V Explorer’s Administration tab: .
2
To create a workflow, on the Hyper-V Explorer Administration tab, in the Workflows view, click New.
To edit a workflow, in the Workflows view, select the workflow that you want to edit, and click Edit.

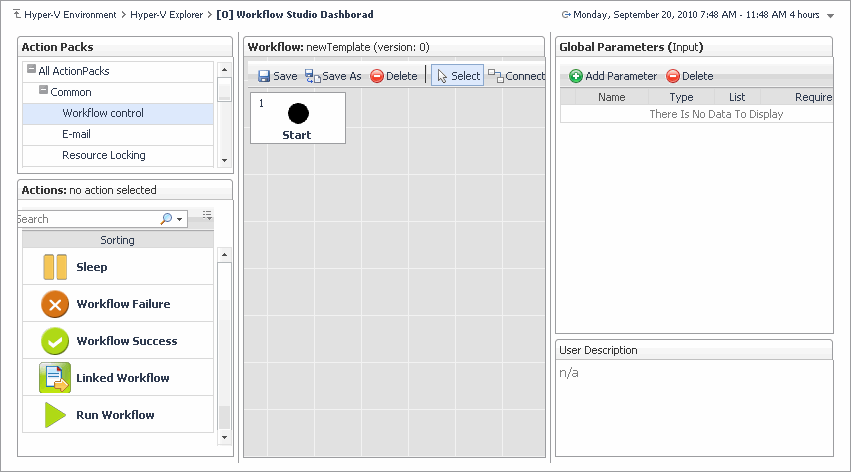

The Workflow Studio dashboard appears in the display area.
3
Define the workflow, as required.
TIP: The Workflow Studio dashboard is included with the Foglight for Hyper-V Cartridge for Automation. For complete details about this dashboard, see the Cartridge for Automation documentation.
4
To return to the Hyper-V Explorer, use the bread crumb trail.
To run a server workflow:
1
Select a server or a virtual machine object instance and open the Hyper-V Explorer Administration tab.

*
TIP: For instructions, see To access the Hyper-V Explorer’s Administration tab: .
2
On the Hyper-V Explorer Administration tab, in the Workflows view, select the workflow that you want to run.
3
Click Run.
The Run Workflow dialog box appears.

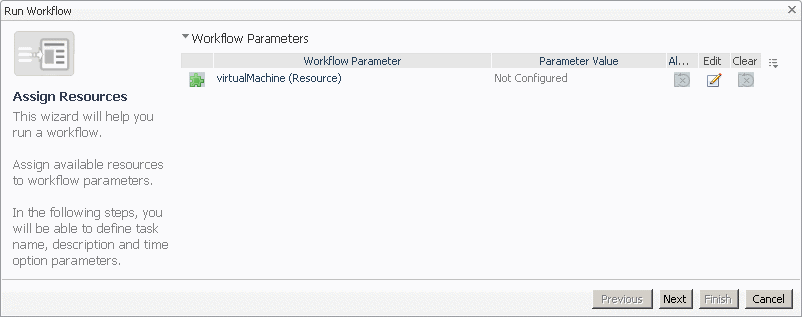

Figure 251. Run Workflow dialog box
4
Edit the workflow parameters, as required. The type and range of parameters depend on those defined in the selected workflow.
Click Next.
5
In the Specify Task Details page that appears in the Run Workflow dialog box, specify the task name, description, and time options, then click Finish.
To delete a server workflow:
1
Select a server or a virtual machine object instance and open the Hyper-V Explorer Administration tab.

*
TIP: For instructions, see To access the Hyper-V Explorer’s Administration tab: .
2
On the Hyper-V Explorer Administration tab, in the Workflows view, select the workflow that you want to delete.
3
Click Delete.
To export a server workflow to a file:
1
Select a server or a virtual machine object instance and open the Hyper-V Explorer Administration tab.

*
TIP: For instructions, see To access the Hyper-V Explorer’s Administration tab: .
2
On the Hyper-V Explorer Administration tab, in the Workflows view, select the workflow that you want to export to a file.
3
Click Export.
The Export a Workflow dialog box appears.
4
Specify the name and location of the file to which you want to export the workflow.
To import a server workflow from a file:
1
Select a server or a virtual machine object instance and open the Hyper-V Explorer Administration tab.

*
TIP: For instructions, see To access the Hyper-V Explorer’s Administration tab: .
2
On the Hyper-V Explorer Administration tab, in the Workflows view, select the workflow that you want to import from a file.
3
Click Import.
The Import a Workflow dialog box appears.
Figure 252. Import a Workflow dialog box
4
Navigate to the file containing the workflow you want to edit.



Foglight for Hyper-V alarms

Foglight for Hyper-V triggers alarms when certain thresholds are reached. You can review the existing alarms on the Hyper-V Alarms dashboard.

•
Accessing the Hyper-V Alarms dashboard
•
Alarm overview
•
Alarm table
•
Setting the alarm sensitivity level
•
Finding alarms using the action panel

Accessing the Hyper-V Alarms dashboard

The Hyper-V Alarms dashboard is a simple dashboard that shows the alarms that have been triggered but not cleared. It can be used to isolate alarms specific to the virtualized environment.

Figure 253. Hyper-V Alarms dashboard

To access the Hyper-V Alarms dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Dashboards, choose Hyper-V > Hyper-V Alarms.
The Hyper-V Alarms dashboard appears in the display area.


Alarm overview

The Alarms Overview shows the Foglight for Hyper-V alarms, grouped by object type and severity level. Use it as a starting point when monitoring alarms to quickly identify the sources of problems within the virtual infrastructure.

This view appears along the top of the Hyper-V Alarms dashboard, just above the Alarm table.

Figure 254. Alarms Overview



Table 138. Description of the View
Data displayed
•
Alarm counts. The total counts of alarms associated with the physical servers, broken down by alarm types (Normal, Warning, Critical, Fatal).
Where to go next
•
Drill down on any alarm count. Displays the Alarms dialog box that shows a list of all related alarms.
Figure 255. Alarms dialog box
