Foglight for Exchange 5.8.2 - Foglight for Office 365 User Guide

Getting started with Foglight for Office 365 Administering monitoring agents and collected data Monitoring your environment Foglight for Office 365 views

Start and stop data collection

2
Click Start Data Collection.
NOTE: To download or open the agent log file, click the Download Log File icon in the Log File column for a select agent.
2
Click Stop Data Collection.

Configure domain credentials

2
Click the Edit icon on the Credentials column.
The Edit Domain Credentials dialog box appears.
3
On the Assign and Validate Domain Credentials page, review the available credentials, and edit them, as necessary.
To create a new credential, click Add domain to a new credential.
a
In the Create New Credential and Assign dialog box, create a credential that you want to use to access the monitored resource. Type a new credential name.
c
Click Submit.
To select an existing credential, click Add domain to an existing credential.
In the Select Existing Credential dialog box, select an existing credential, and click Submit.
4
Click Finish.

Set up permissions to use the Office 365 APIs

2
Click the Edit icon on the Consent column.
The Update Agent Permissions wizard appears.
3
On the Update Permissions for Office 365 page, carefully read the instructions about the steps that you need to take before proceeding with the wizard, then click the link Click here to go to Office 365 web page for application permission consent.
Click Accept to complete the permission consent and be redirected to the Foglight login page, back to the Update Permissions for Office 365 wizard.
6
Click Finish.

Configuring Foglight for Office 365 agent properties

The properties of a Foglight for Office 365 agent are required to connect to Exchange Online environment from which data is to be collected. These properties are either specified when the agent instance is configured or have a default value.

1
From the navigation panel, navigate to Dashboards > Administration > Agents > Agent Status.
2
On the Agent Status dashboard, select an Office365Monitoring agent from the list and click Edit > Edit Properties.

The following tables describe the properties that can be modified for either an individual Foglight for Office 365 agent instance or for all agent instances, by clicking Modify the private properties for this agent or Modify the properties of all Office365Agent agents links, respectively.

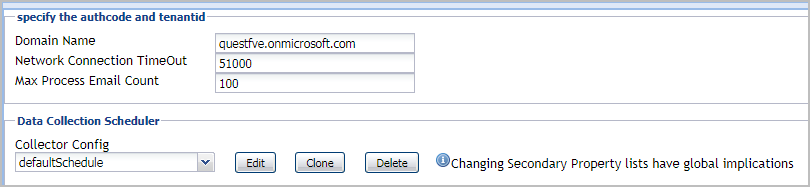

Use the specify the authcode and tenantid section to define the connection settings.

Domain Name

N/A

The fully qualified domain name (myServer.myDomain.com) of the Exchange Online environment from which data is to be collected.

Network Connection Timeout

51000

Specifies how long (milliseconds) the system waits for a response from the remote server before it times out. That is, the time in milliseconds that a data collection query will run before it is presumed to have failed and the network connection is terminated.

Max Process Email Count

100

Specifies the maximum amount of emails to be processed when populating the following metrics: Message Send/Receive Time and Message Success/Failed Count. For more information, refer to Environment Summary - Exchange Online (Selected Object) view .

The selection made in the Data Collection Scheduler section defines the data collection schedule to be used to collect performance metrics.

The following table lists the collectors being used by the cartridge and the default collection interval for each (as defined in the defaultSchedule).

servicesHealth

4 minutes

exchangeOnline

1 hour

licenseInfo

30 minutes

userInfo

30 minutes
