Member Overview Homepage

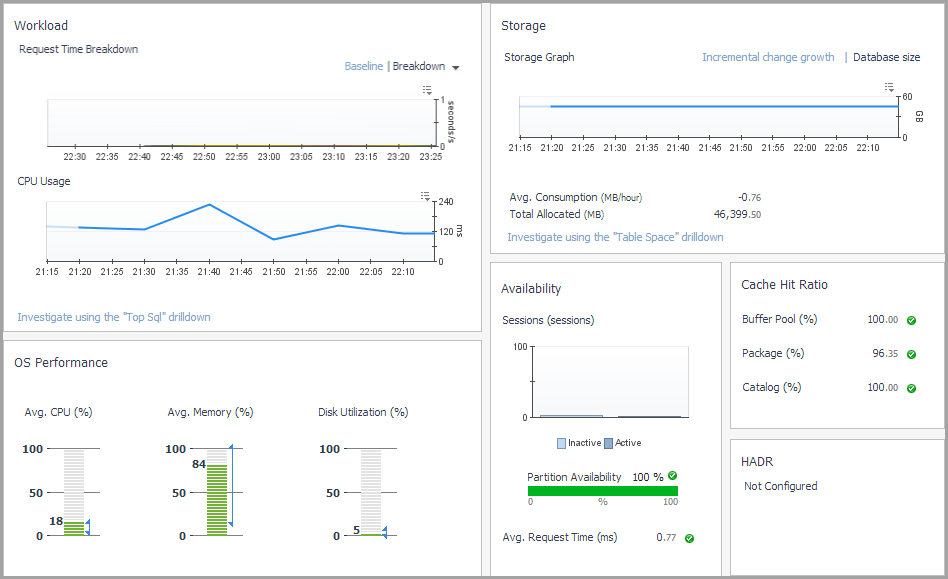

The Member Overview Homepage provides metrics on the state of the member over the course of the selected time range. Popups provide graphs that show you how the member is performing and whether or not there are any critical areas that need to be addressed.

Figure 9. Member Overview Homepage

For more information, see Member Overview home page.

Member (Real Time) Homepage

The Member (Real Time) Homepage provides metrics on the present state of the selected member. It allows you to view how the member is performing and any performance or bottleneck issues affecting the member. Popups provide additional information and graphs.

Figure 10. Member (Real Time) Homepage

For more information, see Member (Real Time) home page.

Reporting on Your DB2 Environment

Foglight for DB2 LUW allows you to generate reports about various aspects of the performance of the selected database instance. This section provides instructions for generating reports and a brief description of each report.

Foglight for DB2 LUW comes with a set of pre-defined reports. Operators can run those reports, build custom reports, and view generated reports. Advanced Operators can also schedule and manage reports.

To access the Reports dashboard, from the Foglight navigation pane, select Dashboards > Reports. From the Reports dashboard, click the links provided as described below:

•
Click Build a Custom Report to choose the building blocks for your custom report using the Create Report wizard.
•
Click Run a Report to select and generate or schedule a report using the Run Report wizard.
•
Click Manage Reports to access the Manage Reports dashboard, where you can download, delete and view details about generated reports.
*
NOTE: You can also access the reports features using the Reports menu at the top right of any dashboard or on the General tab of the Action panel to the right of any dashboard. Select the Create a new report option to launch the Create Report wizard and define the components to be used to build a new report.

For more information on using the Foglight reporting features, see the Foglight User Guide or online help.

About the Foglight for DB2 LUW Reports

About the Foglight for DB2 LUW Reports

Foglight for DB2 LUW comes with a set of pre-defined report templates, which provide an analysis of the performance and health of your DB2 LUW environment over time.

Each report template uses report parameters to define the content of the report. Use a template’s default report parameters to quickly generate or schedule a report, or optionally change the report parameters to customize the report to better meet your requirements.

The following Foglight for DB2 LUW reports are available:

*
NOTE: If you are using the Templates by Module tab on the Run Report wizard, click the expansion box to the left of Databases > DB2 to view the Foglight for DB2 LUW reports.

•
Comparison of Databases Report — reports on and compares the I/O activity between selected databases. For this report, you provide a time range and more than one database.
•
Executive Workload Summary Report — provides a workload overview for the instance and for each database.
•
Health Check Report — reports on the database availability, response time, and connection time. For this report, you provide a time range and a database.
•
Storage Summary Report — provides an overview of storage utilization using relevant categories such as disk space usage, file system usage (as it relates to automatic storage tables spaces), log storage, and top-consuming tablespaces. For this report, you provide a time range and a database.
•
Top SQL Report — provides detailed information regarding the SQL statements that experienced the longest time of CPU consumption or total wait events.
