Foglight Evolve 6.0.0 - Foglight Evolve Network Topology Guide

Chatee ahora con Soporte

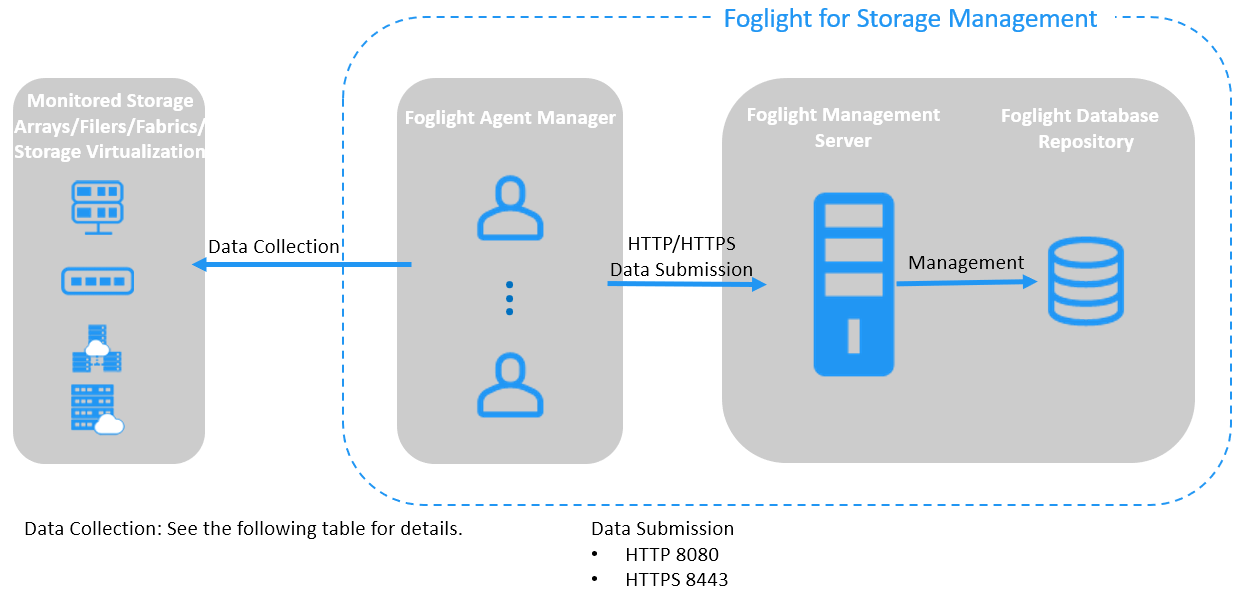

Table 1. Data Collection protocol and port for Foglight for Storage Management
Model	Protocol	Port
Brocade	SMI-S	default 5988 (HTTP) default 5989 (HTTPS)
Cisco	SSH	22
Dell Compellent	API	default 3033
Dell Equallogic	SNMP	161
EMC CLARiiON CLI	DCOM SSH	135, 139 (DCOM) 22 (SSH)
EMC VNX/ CLARiiON/VMAX SMI-S	SMI-S	default 5988 (HTTP) default 5989 (HTTPS)
EMC Isilon	OneFS CLI	default 22
HDS AMS/USP/VSP	SMI-S DCOM (TM)	default 5988 (HTTP) default 5989 (HTTPS) 135, 139 (DCOM)
HP EVA	SMI-S	default 5988 (HTTP) default 5989 (HTTPS)
HP 3PAR	SMI-S	default 5988 (HTTP) default 5989 (HTTPS)
NetAPP Filer	ONTAP API	443
EMC VPLEX	REST API	443 (HTTPS)
Generic SMI-S	SMI-S	default 5988 (HTTP) default 5989 (HTTPS)
