Foglight Chargeback 5.7.7 - User Guide

Measured Resource Utilization (MRU Assignments) View

The Measured Resource Template view provides an overview of the measured resource templates, host assignments to those templates, and allows you to add new templates.

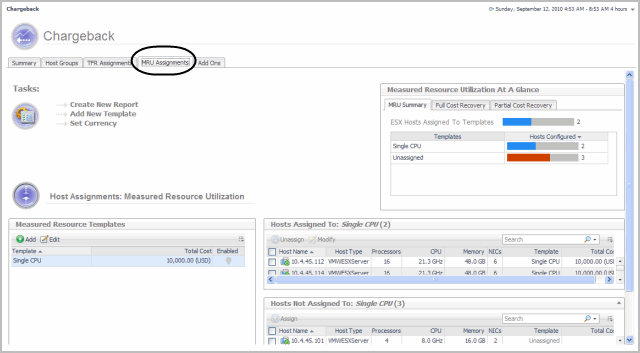

Figure 10. Measured Resource Utilization view

The MRU Assignments tab provides the following views:

•
Tasks—from the Tasks view you can:
•
Create New Report—provides a wizard that allows you to configure a report and select a host group (a group of computers) for a particular business unit. The reports are generated in PDF, Excel, and XML. (For more information, see Creating New Reports.)
•
Add Measure Resource Utilization Templates—allows you to create new measured resource utilization templates.
•
Set Currency—allows the changing of the default currency for Chargeback.

*
IMPORTANT: Changing the currency symbol affects only the text of the currency entered. It does not convert currency.
•
Measured Resource Utilization At A Glance—this view provides a quick visual summary of the hosts that have been assigned to the measured resource utilization model, as well as a visual breakdown of the host assignments within that model. This view contains a summary tab and tabs for both partial cost recovery and full cost recovery. All templates and their assigned hosts are listed under the tabs.
•
Host Assignments: Measured Resource Utilization—the three tables in this area allow for bulk assignment and unassignment of hosts to a given MRU template. The two tables to the right of this table display the hosts that have been assigned or are not yet assigned to the selected template.
•
Measured Resource Templates—this table shows all the measured resource utilization templates currently stored in the system. Selecting a template from this table enables the display of the assigned hosts for this template. From this view you can:
•
Add Measure Resource Utilization Templates
•
Edit Templates
•
Hosts Assigned To—this table shows all hosts that are assigned to the template that has been selected in the templates listing table. Hosts can be searched for, selected, and removed from the assigned table. To remove a host from this table, select it from the list and click Unassign on the toolbar. This moves the selected host into the unassigned table, and disassociates it from the selected measured resource utilization template. Each column in the table can be sorted based on individual preferences.
•
Hosts Not Assigned To—this table shows all the hosts that are not assigned to the selected MRU template. To add a host to a selected template, choose the host you wish to add and click Assign on the toolbar. This moves the host into the Assigned To table view, and associates the host with the template that was selected. Each column in the table can be sorted based on individual preferences.

Using the MRU Assignments View

From this view you can perform the following:

•
Creating New Reports
•
Add Measure Resource Utilization Templates
•
Assign Hosts
•
Set Currency
•
Edit Templates
Add Measure Resource Utilization Templates

Measured Resource Utilization is based on actual percentage utilizations of:

•
CPU weight
•
Memory weight
•
Network weight
•
Disk IO weight

Foglight™ Chargeback allows you to create templates based on server capacity and utilization. The template name is not editable once it is saved. The lifecycle default value is 36 months. All templates are active by default when created. A total weight of 100 is always used, regardless of the sum of the CPU, memory, network and Disk IO weights entered. Templates cannot be deleted.

You can create templates based on these utilizations. The template name is not editable once it is saved. The lifecycle default value is 36 months. All templates are active by default when created. A total weight of 100 is always used, regardless of the sum of the CPU, memory, network and Disk IO weights entered. Templates cannot be deleted.

To add a new template:
1
Click Add New Template.
The Add Measured Resource Template appears.
2
Enter and host template name and fill in the required parameters.
•
Host Template Name—name assigned to the template. This name is not editable once assigned.
•
Description—description of the template. For example, single CPU, 64 GB memory, 40 GB disk.
•
Total Host Cost—the total host cost for the life cycle set.
•
Lifecycle (Months)—the number of months the server will be used.
•
Enabled­—enables the template to gather data.
•
CPU Weight—percentage of CPU weight used in the chargeback calculation.
•
Memory Weight—percentage of memory weight used in the chargeback calculation.
•
Network Weight—percentage of network weight used in the chargeback calculation.
•
Disk IO Weight—percentage of disk IO weight used in the chargeback calculation.
3
Click Save.
Assigning Hosts

After creating a new measured resource template, hosts are assigned to the template for Foglight Chargeback to start gathering data for reports.

To assign hosts:
1
In the Measured Resource Templates table view, click on the template you want to assign the hosts to.
2
In Hosts Not Assigned To table view, select the host(s) you want to assign.
3
Click Assign.
The selected hosts are moved to Host Assigned To.
Edit Templates

*
NOTE: Measured Resource templates cannot be deleted and their names cannot be changed. These templates have historical data associated with them.

You edit tiers to:

•
Edit the description of the template.
•
Edit the total host cost.
•
Edit the lifecycle of the template.
•
Enable or disable a template. You disable a template if you do not plan to use it any more because it is no longer valid.
To edit a template:
1
In Measured Resource Templates view, select the template you want to edit.
2
Click Edit.

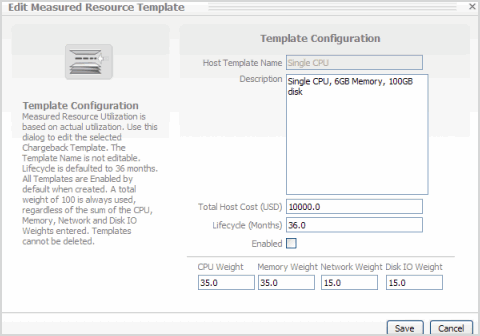

The Edit Measured Resource Template view appears.
3
Click Description box and make the required edits.
4
In the Total Host Cost (Currency Type) box, type the required edits.
5
In the Lifecycle (Time Period) box, and make the required edits.
6
If not enabled, click the Enabled checkbox to enable the selected template. Click again to disable the check box. You disable a template if you do not plan to use it any more because it is no longer valid.
7
Click the resource weights box(s) and edit if required.
8
Click Save.

Add Ons View

Add Ons provide the ability to create modular cost upgrades for a given host. These upgrades could include, but are not limited to hardware software, licensing, or even infrastructure items such as rack space or power backup units. Add Ons are typically modular, stand-alone upgrades that are added to a given host configuration that can increase the host configuration’s value and/or performance within a given environment. Typical examples of Add Ons include:

•
Additional CPU or RAM
•
Additional Network interfaces or upgraded types of network interface cards
•
Additional Storage (internal or SAN-based)
•
Software installs such as Oracle or MS SQL
•
Specific rack space
•
Power backups

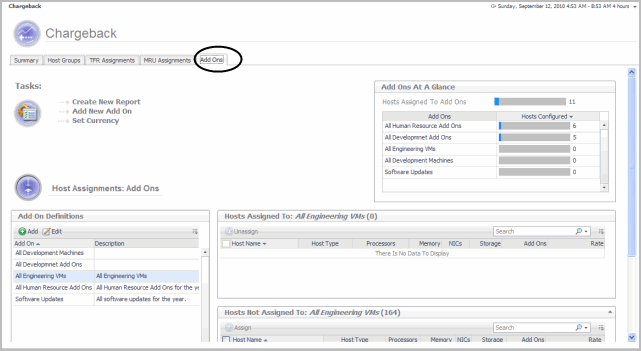

Figure 11. Add Ons view

The Add Ons tab provides the following views:

•
Tasks—from the Tasks view you can:
•
Create New Report—provides a wizard that allows you to configure a report and select a host group (a group of computers) for a particular business unit. The reports are generated in PDF, Excel, and XML. For more information, see Creating New Reports.
•
Add Add Ons—allows you to create new add on assignments.
•
Set Currency—allows the changing of the default currency for Chargeback.

*
IMPORTANT: Changing the currency symbol affects only the text of the currency entered. It does not convert currency.
•
Add Ons At A Glance—this view provides a quick visual summary of the hosts that have been assigned to Add Ons as well as a visual breakdown of the host assignments within that model.
•
Host Assignments: Ad Ons—the three tables in this area allow for bulk assignment and unassignment of hosts to a given Add On. The Add On Definition table lists all available Add Ons and their details. The two tables to the right of this table display the hosts that have been assigned or are not yet assigned to the selected Add On.
•
Add Ons Definitions—this table lists all the Add Ons currently stored in the system. Selecting an Add On from this table enables the display of the assigned hosts for this Add On in the Hosts Assigned To table. From this view you can:
•
Add Add Ons
•
Edit Add Ons
•
Hosts Assigned To—this table lists all hosts that are assigned to the Add On selected in the Add On Definitions list. Hosts can be searched for, selected, and removed from the assigned table. To remove a host from this table, select it from the list and click the Unassign button on the toolbar. This moves the selected host into the Unassigned table, and disassociates it from the selected Add On. Each column in the table can be sorted based on individual preferences.
•
Hosts Not Assigned To—this table lists all the hosts that are not assigned to the selected add on. To add a host to a selected add on, choose the host you want to add and click the Assign button on the toolbar. This moves the host into the Assigned To Table, and associates the host with the Add On that was selected. Each column in the table can be sorted based on individual preferences.

Using the Add Ons View

From this view you perform the following tasks:

•
Creating New Reports
•
Add Add Ons
•
Assigning Hosts
•
Set Currency
•
Edit Add Ons
Add Add Ons

The Add Ons view allows you to add a supplementary IT cost, for example a software upgrade.

To add new Add Ons:
1
Click Add New Add On.
The Add New Add Ons dialog appears.
2
Enter the Add On name, a description, and rate.
3
Click Save.
The new Add On appears in the Add Ons view.
Assigning Hosts

After creating an add on, hosts are assigned to the add on to start gathering data on the established add on rates.

To assign hosts:
1
In the Add On Definitions list, click a definition you wish to assign the hosts to and then click Add.
2
In the Host Not Assigned To list, select the required hosts.
3
Click Assign.
The selected host are listed in the Host Assigned To view.
Edit Add Ons

You edit add ons to:

•
Edit the description of the add on.
•
Edit the rate assigned to the add on.
To edit Add Ons:
1
In Add On Definitions, select the required Add On.
2
Click Edit.
The Edit Add On view displays.

*
IMPORTANT: The Add On Name cannot be edited.
3
Make the required edits.
4
Click Save.
