Scenario Modeler Tab

The Scenario Modeler view is intended to rebalance the workload among virtual centers or datacenters, to achieve optimal resource utilization. The balance metrics include CPU utilization, Memory utilization, and Storage Capacity utilization. A metric is defined as ‘balanced’ if the resource utilization is averagely distributed across all clusters and standalone nodes; otherwise this metric can be regarded as ‘non-balanced’. Foglight Capacity Director provides two methods to help you optimize the use of clusters resources, by using the Scenario Modeler view:

Optimal Placement: algorithm that calculates and recommends the optimal distribution of virtual machines across clusters.
NOTE: Results populated in the Scenario Modeler view are impacted if the HA policy is enabled in a virtual center.

The left side of the Scenario Modeler view includes the Planned Changes pane and the right side is the Scenario Modeler pane that walks you through the placement procedure.

Optimal Placement

2

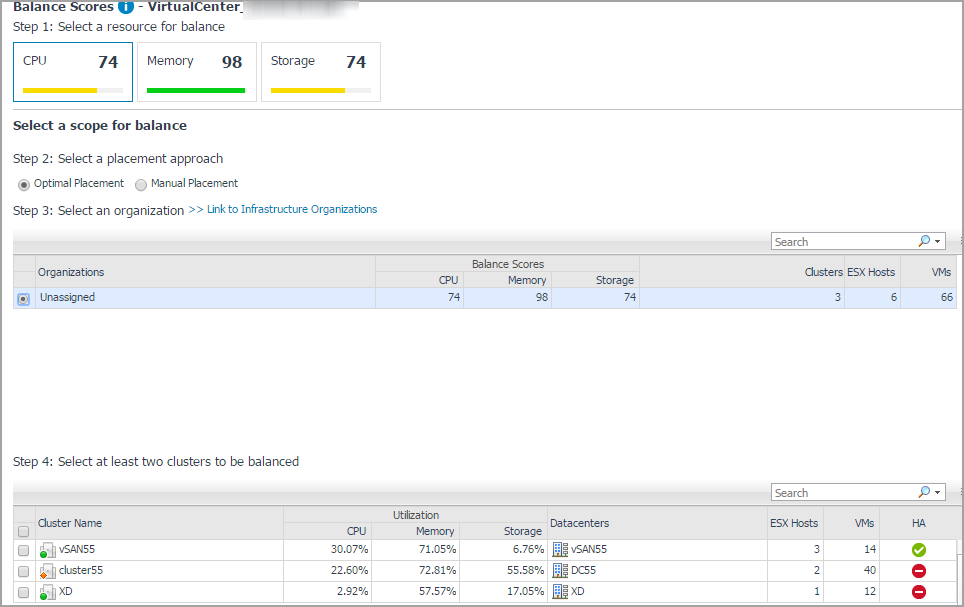

Select Optimal Placement under Step 2: Select a placement approach.
Click >> Link to Infrastructure Organizations to add a new organization as needed. For more information, see Infrastructure Organizations Tab.
Balance Scores: The original Balance Score before the optimal placement. For more information, see Balance Score.
Rebalance Scores: The updated Balance Score if the optimal placement is deployed.
Source Clusters: The clusters from which virtual machines are moved.
Number of moved VMs: The number of the virtual machines to be moved to the Target Clusters.
Moved VMs: The list of virtual machines to be moved to the Target Clusters.
Target Clusters: The clusters to which virtual machines are moved.
Yielding Metrics: The resource utilization before/after the optimal placement, and the increase percent of resources.
Conflicts: The list of conflicts to occur if the optimal placement is deployed. The types of conflicts include affinity rules violation, organization conflicts, and unavailable network accesses.
6
Click Start Over if you want to redo the resource rebalance.
Click Model Change to model the optimal placement. For more information, see Modeling Placement.
Click Deploy Change to execute the optimal placement as Foglight Capacity Director recommended. For more information, see Deploying Placement.
NOTE: The Edit Assignment button is disabled for the Optimal Placement method.

Balance Score is scaled from 0 (non-balanced) to 100 (balanced). The same resource utilizations across all containers achieve a perfect Balance Score, for example, Balance Score is 100 if the CPU/Memory/Storage Capacity utilizations are 30% for all clusters. The Balance Score is approximately 0 if the resource utilization is 100% for cluster 1 and cluster 2, while resource utilization for cluster 3 is 0%.

Balance Score is divided into the following four ranges:

Fatal (in red)

0 ~ 25

Default value is 25. To change this value, search for and edit CapacityHealthScoreFatal from Dashboards > Administration > Rules & Notifications > Manage Registry Variables.

Critical (in orange)

26 ~ 50

Default value is 50. To change this value, search for and edit CapacityHealthScoreCritical from Dashboards > Administration > Rules & Notifications > Manage Registry Variables.

Warning (in yellow)

51 ~ 75

Default value is 75. To change this value, search for and edit CapacityHealthScoreWarning from Dashboards > Administration > Rules & Notifications > Manage Registry Variables.

Normal (in green)

76 ~ 100

N/A

Modeling Placement

After Foglight Capacity Director calculates the result of optimal placement or manual placement, you can only model the virtual machines movement without deploying the movement in the realtime environment.

1
After Step 5 in To perform an optimal placement: or Step 7 in To perform a manual placement:, the placement recommendations appear in the Scenario Modeler pane.
2
Click Model Change.
3

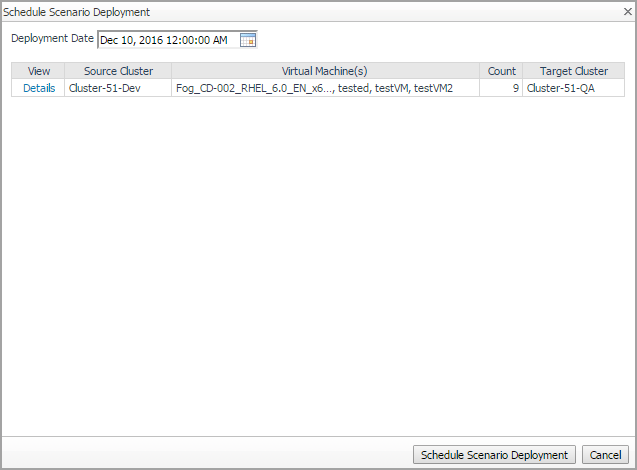

(Optional) In the Schedule Scenario Deployment dialog box, click Details to view details of Virtual Machine Movements. Click Close and return to the Schedule Scenario Deployment dialog box.
4
In the Schedule Scenario Deployment dialog box, select the Deployment Date, and click Schedule Scenario Deployment.

Deploying Placement

After Foglight Capacity Director calculates the result of optimal placement or manual placement, you can deploy the virtual machines movement in the realtime environment, as needed.

1
After Step 5 in To perform an optimal placement: or Step 7 in To perform a manual placement:, the placement recommendations appear in the Scenario Modeler pane.
2
Click Deploy Change.
3

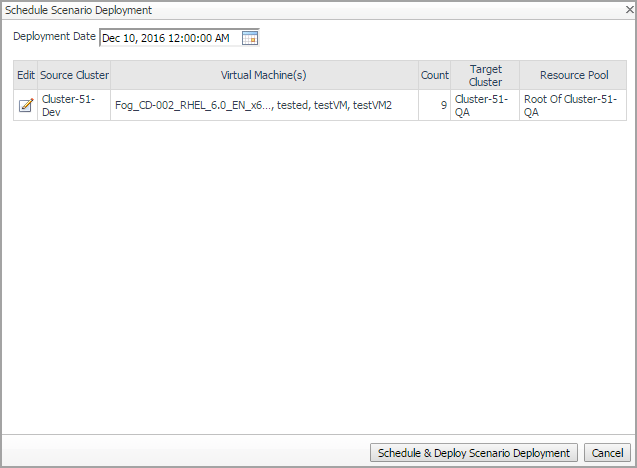

(Optional) In the Schedule Scenario Deployment dialog box, click the Edit icon to open the Edit Movable VM(s) dialog box, and then click Browse next to Resource Pool to make changes as needed. Click Close to save changes and return to the Schedule Scenario Deployment dialog box.
