Foglight Capacity Director 7.1.0 - User Guide (Lite Version)

Projected Memory Usage view

This embedded view is part of the Resource Utilization > Clusters view. To display this view, click the Clusters tab in the Resource Utilization view, and select a cluster from the Cluster Name table.

This view displays memory utilization metrics on the selected cluster.

Utilization: This chart shows the actual memory usage.
Capacity: This chart shows the total memory capacity.

Projected Storage Usage view

This embedded view is part of the Resource Utilization > Clusters view. To display this view, click the Clusters tab in the Resource Utilization view, and select a cluster from the Cluster Name table.

This view displays storage utilization metrics on the selected cluster.

Utilization: This chart shows the actual storage usage.
Capacity: This chart shows the total storage capacity.

Projected Storage IOPs Usage view

This embedded view is part of the Resource Utilization > Clusters view. To display this view, click the Clusters tab in the Resource Utilization view, and select a cluster from the Cluster Name table.

This view displays storage IOPs) utilization metrics on the selected cluster.

IOPs: This chart shows the actual storage IOPs in the unit of connections per second (c/s).

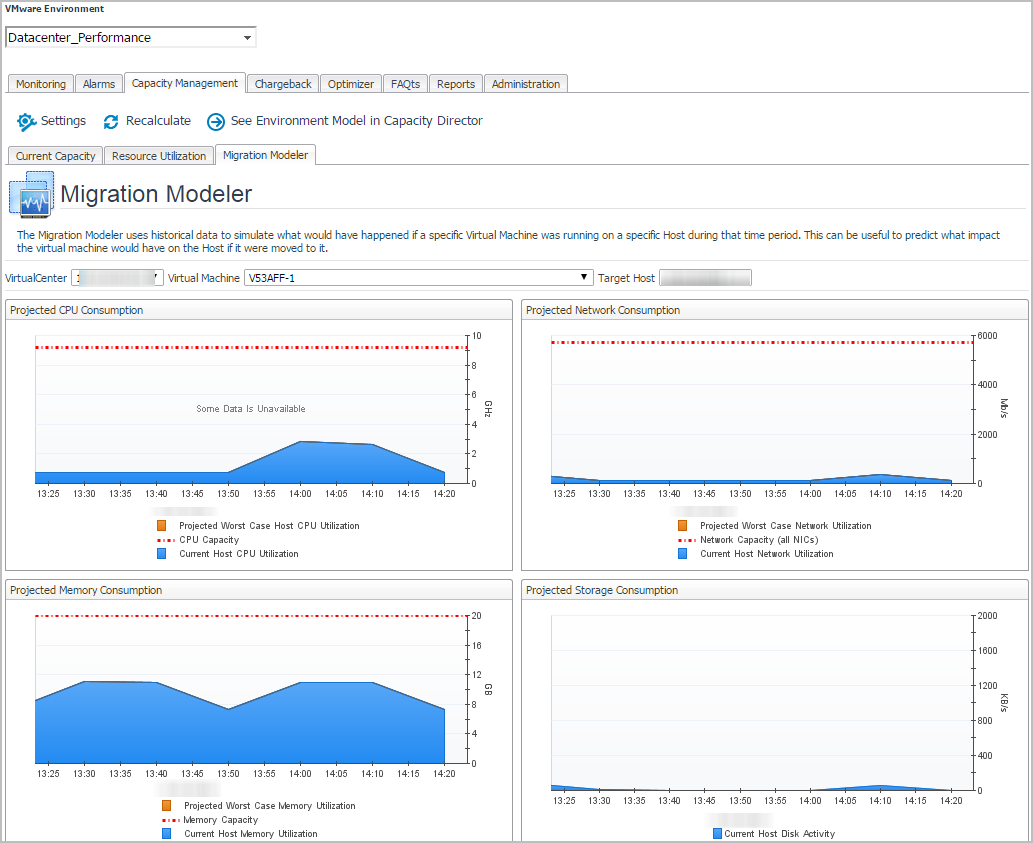

Migration Modeler Tab

The Migration Modeler view uses historical data to simulate what would have happened if a specific Virtual Machine was running on a specific Host during that time period. This can be useful to predict what impact the virtual machine would have on the Host if it were moved to it. It includes the following elements:

Resource utilization related views: Projected CPU Consumption view, Projected Network Consumption view, Projected Memory Consumption view, and Projected Storage Consumption view. These views are automatically refreshed after selecting a VirtualCenter or a virtual machine.
The VMware Environment dashboard opens.
3
Click the Migration Modeler tab.
The Migration Modeler view appears at the bottom of the VMware Environment dashboard.
