Data Analysis and Reporting

ControlPoint offers several advanced tools for analyzing data in the SharePoint environment, including:

·a summary of components and statistics at different levels of the SharePoint Hierarchy

·activity throughout the SharePoint farm

·storage used by various SharePoint objects

·site content

·information about users, including:

§permissions for Web applications, site collections, sites, and pages, and

§"orphaned" users, which are users who have permissions within SharePoint but are no longer listed in the Active Directory

·trends over a specified time period

·the contents of SharePoint audit and change logs.

An additional tool, the ControlPoint Task Audit, enable you to review ControlPoint actions taken by administrators.

Analysis tools are accessible for various levels of the hierarchy. As with other ControlPoint features, the scope of the analysis is determined by the hierarchical context.

Most analyses can also be configured so that they can be invoked directly from a url, which can be bookmarked, emailed, or placed on a SharePoint site.

NOTE:  This chapter describes all of the ControlPoint analysis tools.  Depending on the configuration of your ControlPoint menus, however, the analysis tools to which you have access, and their location in the menus invoked from the left navigation pane, may vary.

You can also create dashboards for monitoring key statistics within your farm.

Specifying Parameters for Your Analysis

When you select a ControlPoint analysis tool from the left navigation pane, you are prompted to specify the parameters you want to use.  The most common parameters used in various ControlPoint analysis tools are described below.

Note that, depending on the analysis, some parameters may be located in the Advanced Parameters section.

Advanced Parameters

Cached vs. Real-time Data

Some ControlPoint analyses give you the option of using either cached or real-time data for analyses performed on the farm, one or more Web applications, or site collections.

Cached option

If the Use cached data box is checked, your analysis will include data that has been collected by ControlPoint during the last run of Discovery .  The advantage of using cached data is that the analysis will be processed more quickly and will not compete for system resources.  Because Discovery is run on a nightly basis, the use of cached data is often sufficient, especially when the analysis contains data that is not likely to change significantly over the course of a day.

The advantage of using real-time data (when the Use cached data box is unchecked) is that your analysis will contain the most current information.  However, because the data is being captured in real time, the analysis will take longer to process and may tie up system resources.

IMPORTANT:  For analyses performed on a single site collection or site, real-time data is always used and the Use cached data option is disabled.  Because data collection within a single site collection or site is less time-consuming, the impact on system resources is minimal.

Specific Date or Time Period

For analyses that cover a specific time period, you select the time period by specifying a Start Date and End Date.

Task Audit DATES

For analyses that involve activity, only cached data is used, since these analyses are based on accumulated summary data collected nightly by SharePoint usage analysis jobs.

For analyses involving other types of data (such as site collection storage) you are given the option of using real-time data.

IMPORTANT: Historical data that predates the ControlPoint cache will not be reflected in analysis results.  For example, if the ControlPoint cache was created two weeks ago, a maximum of two weeks-worth of data is available for analysis, regardless of the date range you specify.  Similarly, any historical data that postdates the last run of ControlPoint Discovery will not be reflected in results.  For example, if you request data for a time period that covers the last 30 days and the last time Discovery ran was 10 days ago, analysis results will reflect the time period up to the last Discovery run date.

The format that ControlPoint uses to display dates is based on browser settings (rather than server settings).  If you want to change the format (from mm/dd/yy to dd/mm/yy for example), go to Internet Options and change the Language Preference.

It is worth noting that deleted sites will display in activity and storage analysis results if they were active during the specified time period.

Open drill-down Options

For analyses that allow you to drill down to a more detailed ControlPoint analysis, you can choose to display it in a separate window by checking the Open drill-downs in new window box.

Open drill-downs

If you leave this box unchecked, the analysis to which you are drilling down will display in the current workspace, and parameters from the original analysis will be carried over.  You can return to the original analysis by clicking the Back arrow in the report header.

Back Button

Note that, when you link to a SharePoint page from analysis results, it always displays in a separate window.

Expanded Results Option

For most analyses that contain nested data, you have the option of choosing whether or not you want to display results expanded.

If you want to display results at the highest level of detail, uncheck the Display with results expanded box.  You can then expand items individually, and view, print, or export additional detail for selected items only.

If your analysis contains a lot of nested data and you want to view, search, print, or export all of the analysis detail without drilling down, you may choose to have results display fully expanded by checking the Display with results expanded box .

TIP:  If you choose to display expanded results and your analysis contains a large amount of data, you can use the Document Map to more easily navigate through results.  See Analysis Results Display.

Additional Parameters for Permissions Analyses

The following parameters are specific to SharePoint user permissions analyses:

·If you want to limit results to one or more specific users, the Select users field allows you to select the users you want to include in your analysis.  If you leave this field blank, all users will be included.

Include All Users NO

NOTE:  You must use real-time (not cached) data if you are selecting users based on a SharePoint User Profile Property.

·If the scope of your analysis includes sites with multiple child objects, you can choose to display all objects (including those whose permissions are inherited) by unchecking the Show Unique Permissions Only box.

Unique Permissions Only FALSE

NOTE:  If this option is checked, only sites with unique (non-inherited) permissions will be included in the results.

·If you want results to include only users who have direct permissions (that is, do not have permissions via a SharePoint group), check the Include only users with Direct permissions box.

Direct Permissions Ony checkbox

TIP:  You can use this option to identify "rogue users" who should have permissions through membership in a SharePoint group, then initiate an Add User to Groups action directly from analysis results.  See Acting on Search or Data Analysis Results.

·If your selection includes Active Directory groups and you are running the analysis using real-time data:

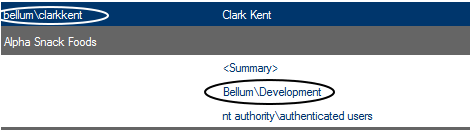

§ You can include separate line items for users who have permissions through those groups by checking the Include users with AD group membership box.

Permissions through AD

If you leave this box unchecked, only the permissions of the AD group itself (not the users within it) will be included in analysis results.

§You can include a summary section at the end of the analysis that lists the Active Directory groups within the scope of your analysis along with all of their members by checking the Include AD Group Members table box.

AD Group Members

NOTE: You cannot display membership in Active Directory groups if you are running the analysis on cached data (and the checkbox will be disabled).  If the ControlPoint Application Administrator has configured the application to prevent members of Active Directory groups from being displayed, this option will not be visible. Built-in groups (such as authenticated users) are not counted.

·If you want to limit results to one or more specific permissions levels, select them from the Limit to Users with permissions level(s) list box.  (All built-in and custom permissions levels that are currently assigned to at least one user on at least one site within the scope of your analysis display in the this box.)

Permissions Level List Box

If the analyses includes lists and/or items, permissions levels that are assigned to a list/item that are not assigned at the site level will not display in the list box.  (The list box is populated by data collected by the ControlPoint Discovery process, which does not go below the site level.)  A list- or item-level permissions level can, however, be entered in the Limit by Other Levels field.

Parameter LIMIT BY OTHER LEVELS

·If you want results to include only sites for which anonymous access is allowed, check the Show Anonymous Access Only box.

Anonymous Access checkbox

·If you want a cumulative total of unique users who have permissions for objects within the selected scope, check the Calculate Total Users with Permissions box.

Calculate Permissions Checkbox

Total Users with Permissions includes:

§Web application Service Accounts

§Users granted permissions through Web application policies

§Site Collection Administrators

§Users within Active Directory groups to which the ControlPoint Service Account has access (that is, within the same domain or forest or in a different domain/forest for which with a two-way trust exists).  Disabled Active Directory accounts are included in this total.  If an Active Directory user has been renamed but still has permissions in SharePoint under the old name, each name will be counted as a separate user.

Excluded from this total are built-in groups and special accounts, such as nt authority\authenticated users (or any account that begins with "nt authority") and sharepoint\system, and users granted permissions via augmented Claims or alternate authentication providers.

NOTE:  If you choose to run the analysis using cached data, Total Users with Permissions uses data recorded in the ControlPoint Administration Database (xcadmin), and is current as of the last Discovery run. (The actual number of users within Active Directory groups are always counted in real-time, however.)  If you run the analysis using real-time data, all users are counted in real time, which may significantly increase the amount of time it takes to run the analysis.



Analysis Results Display

All ControlPoint analysis results displays include a standard header and footer, in addition to analysis-specific detail.

Analysis Results Toolbar

ControlPoint analysis results pages include a toolbar which contains page navigation, export, and print capabilities.

Above the toolbar are links that enable you to:

·select all objects in analysis results to include in a ControlPoint operation

·download results as a CSV file

Analysis Results Detail

The analysis results detail sections contains summary information, followed by the analysis-specific content.

The summary section includes the parameters used, as well as the name of the user who ran the analysis and the run date and time.

Note that, if the analysis was run using cached data, the date and time that the cache was last refreshed via ControlPoint Discovery displays.  The information in the analysis is current as of that date and time.  If the analysis was run on real-time data, the Cached field will be populated by the value "False."

You can sort line items in analysis detail for any column that includes an up/down arrow.

Analysis Results Footer Information

The analysis footer, which appears on every page of the results, contains the following information:

·the name of the administrator who generated the analysis (which can be useful if results are exported or printed and distributed, since the content of the analysis reflects that administrator's permissions)

·the number of pages in the analysis (you can scroll through multi-page results from the navigation toolbar in the search results header), and

·the date and time when the results were generated.

Selection Summary

The Selection table is repeated at the end of the Results section.  This information is included in printed or exported results, as a helpful reminder of the item(s) included in your analysis.



Working with Data Analysis Results

From data analysis results you can perform any of the operations described in the following table.

If you want to ...

Then ...

print analysis results

from the results toolbar:

a)Click the print preview icon (Print Preview icon

b) Click the print icon ( ).



(Printed results will contain only the data that is currently expanded.)

export analysis results

choose an Export to the selected format option from the drop-down, then

click the Export link.

Export Options

NOTE:  If you export to Excel, all data will be exported, regardless of whether it is expanded.  If you export to an Acrobat (PDF) file, only data that is currently expanded will be exported.

download raw analysis result data to a CSV file that can be imported into another program for further examination

click the Download as CSV hyperlink in the results toolbar.

csv link

This option differs from the csv option in the Export... drop-down in that it provides all of the raw data (including object GUIDs and internal field names, for example) used to create the report.  This may be useful for troubleshooting or for more in-depth analysis.

perform a ControlPoint action or analysis within the current workspace

use the procedure for Acting on Search or Data Analysis Results.

return to the results of an analysis from which you drilled-down

click the Back button in the results toolbar.

Navigate back button
