Monitoring device activity

You can use the Device Activity page to monitor data flows and data transfer rates for devices that are in use.

2
On the Device Activity page, you can view the following information.

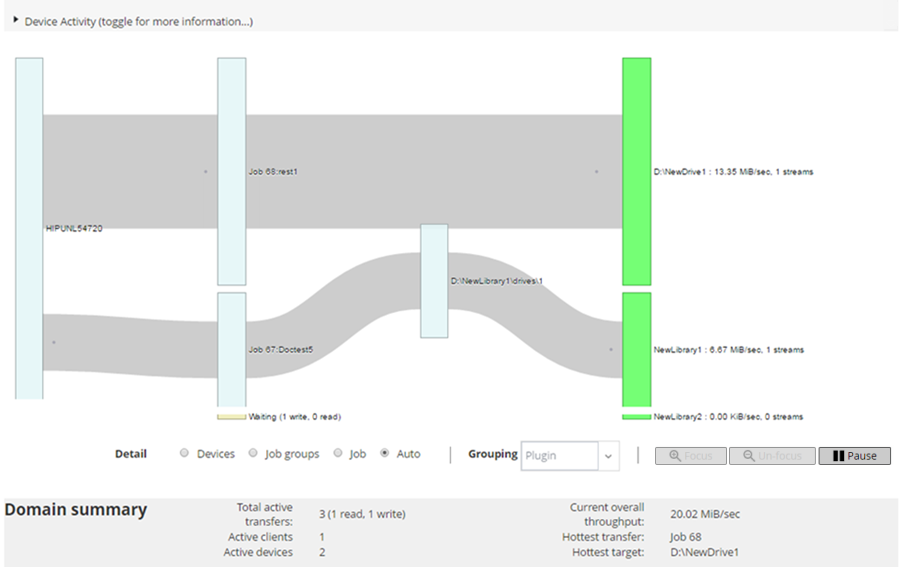

Device activity

This area shows data transfers from clients to jobs on the left and jobs to storage devices on the right. Gray lines depict data flow; the thicker the line, the higher the rate of flow. Boxes represent clients, jobs, and devices; the taller the box, the higher the rate of flow.

You can use the following settings available in the Detail area to modify the data flow view:

Devices: Select this option to view data transfers from all jobs to a storage device.
Job groups: Select this option to view data transfers from a job group (plug-in or policy) to a storage device. The job group can be selected in the Grouping list.
Job: Select this option to view data transfers from client to jobs and from jobs to storage devices.
Focus and Un-focus: Use these buttons to show and hide data flow details for a specific device. Click the device box, and click Focus. To hide the details for that device, click Un-focus.
Pause and Play: Use these buttons to pause and resume data flow updates. To stop data flow updates, click Pause, and to resume updates, click Play.

The transfer rate shows “unknown” for backups running on older NetVault Clients.

Summary

This area shows the following information: total active transfers, active clients, active devices, current overall throughput, hottest transfer, and hottest target.

You can click a box representing the client, job, or storage device in the Device Activity area to view information about that component.

On the Manage Devices page, you can view the list of storage devices as a List View or Tree View. Select Remember this selection to save your choice. By default, List View is selected.

Managing disk-based storage devices in list view

This section includes the following topics:

Viewing disk device details

Device is online and available for use.

Device is offline. NetVault is able to detect the device, but unable to access it for backup or restore jobs.

Device is unavailable. NetVault is unable to detect the device.

On the <Type> Device Management page, you can view the following information:
Device details: The Device details area shows the following information:
Name: The name of the storage device. The name is derived from the container name and the DNS name or IP address of the device.
Status: The status of the device. AVAILABLE specifies that the device is available for backups and restores, while OFFLINE specifies that the device is unavailable and cannot be used for backups or restores.
Data Stored: The total amount of data stored on the device.
Space Used: The total space used by the NetVault Servers to which this device has been added.
Deduplication ratio: The Deduplication Ratio is calculated as follows:
The Deduplication ratio is not displayed for DR Series systems.
Name: The name of the storage device. The name is derived from the host name and IP address of the device.
Status: The status of the device. AVAILABLE specifies that the device is available for backups and restores, while OFFLINE specifies that the device is unavailable and cannot be used for backups or restores.
Data Stored: The total amount of data stored on the device.
Space Used: The total space used by the NetVault Servers to which this device has been added.
Data Deduplicated: The total amount of data that has been submitted for deduplication.
Data In Staging: The amount of data stored in the Staging Store.
Space Available: The total disk space available on the storage device.
Deduplication ratio: The Deduplication Ratio is calculated as follows:
Staging Status: The status of the Staging Store. It can be one of the following:
Storage Status: The status of the Storage space. It can be one of the following:
Group: The media group name. “None” indicates that the device is not added to any group. To add the device to a storage group, click the Edit icon, and in the Edit Media Group dialog box, specify the media group name. Click Save to save the details and close the dialog box.
Version: The version number of the device.
License Type: License type being used.
License Capacity: License capacity.
License Expiration: License validity period.
Dedupe Licensed: If the deduplication option is licensed.
Garbage Collection State: The current phase of Garbage Collection.
Deduplication Queue Length: The number of elements or NetVault segments currently waiting to be deduplicated.
Activity chart: This area shows the activity graph if the device is in use by a backup or restore job.
Job details: This area shows the following information about the active jobs:

Managing a Quest DR Series system, QoreStor, or Data Domain system

Use the following guidelines to manage an appliance or software-defined storage device.

Device is online and can be managed.

Device is in maintenance mode and cannot be managed.

Device is offline and cannot be managed.

2
On the Manage Devices page, click the Manage Device icon for the device that you want to manage.
The name of the page that appears depends on the type of device that you select. For example, if you select a Quest DR Series system, the Quest DR Device page appears; if you select a QoreStor, the Quest QoreStor Device page appears.
