Sharing standalone drives

To add the standalone drives as shared:
1
In the Navigation pane, click Manage Devices.
2
In the list of devices, locate and click the applicable library.
3
Click Modify.
4
On the Edit Device page, click Show Drives to view the NetVault Backup Server or SmartClient node to which the device is attached.
5
Click the applicable drive type, and then click Open to display the available drives.
6
Click the drive, and click Add Shared. This displays the drive picture, type, and details in the Selected Drives area.

*
NOTE: You cannot select the drive that is already present in the bay under Library Configuration area.
-OR-
Click the drive to be shared, and click Select.

*
NOTE: An error message appears if you select the drive that is already added to the bay. Remove the drive before adding to different bay.
-OR-
Click and drag the drive to the desired bay in the Library Configuration area. Add drive to bay dialog box appears. Click Select or Add Shared.
-OR-
If the desired bay is empty. Click and drag the drive to the Selected Drives area. Add drive to bay dialog box appears. Click Select or Add Shared.
7
Configure the applicable drive parameters. For more information, see Configuring physical tape drives.
8
Click Save.
The drive will added and listed in the Library Configuration area on the Edit Device page. The status will change to online when the drive initialization process completes.12.4

Managing storage media

•
Viewing storage summary
•
Viewing disk storage details
•
Viewing tape storage details
•
Managing tape storage media
•
Managing savesets

Role-based access for storage media management


Table 103. Role-based access for storage media management
Storage media management
MSP administrator
Tenant administrator
Tenant user

Explore storage

X





Manage - Tape Media

X





Manage - RAS Devices

X





Manage - Snapshot Array Manager

X

X



Viewing storage summary

To view storage summary:
1
In the Navigation pane, click Explore Storage.
2
On the Explore Storage page, you can view the following information.

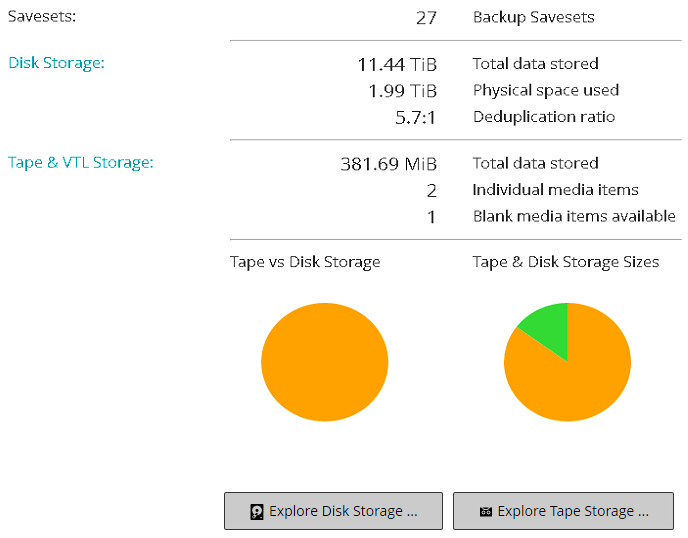

Figure 28. Explore Storage page

Table 104. Explore Storage page
Item

Description

Saveset

This area shows the total backup savesets stored in disk-based and tape-storage devices.

Disk Storage

This area shows the following information:

•
Total data stored: Total data stored in disk-based backup devices (total data size without deduplication).
•
Physical space used: Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).
•
Deduplication ratio: The ratio of size of data before deduplication to the size of data after deduplication.

Tape & VTL Storage

This area shows the following information:

•
Total data stored: Total data stored in physical and virtual tape media.
•
Individual media items: Number of media items used by the backups stored in physical and virtual tape media
•
Blank media items available: Number of blank media items available on the added physical and virtual tape devices.

Tape vs Disk Storage (Pie chart)

The pie chart shows the total data stored in tape- and disk-based devices.

Total data stored in disk-based backup devices.

Total data stored in physical and virtual tape media.

Tape & Disk Storage Sizes (Pie chart)

The pie chart shows the total data stored in tape-based devices, total data stored in disk-based devices, and physical space used by backups stored in disk-based devices.

Total data stored in disk-based backup devices (total data size without deduplication).

Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).

Total data stored in physical and virtual tape media.


3
To explore disk or tape storage repository, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.
