Plug-in Live Client for Windows withWindows-based NetVault Backup Server deployment

Plug-in Live Client for Windows with
Windows-based NetVault Backup Server deployment

This scenario is deployed when you want to perform online or hot backups of Windows Clients and you have deployed a Windows-based NetVault Backup Server.

The Plug-in Server for Windows component is installed on the Windows-based NetVault Backup Server. The Plug-in Live Client for Windows is installed on each Windows Client that you want to protect with online or hot backups.

In this scenario, Plug-in Offline Client is used to perform the recovery of the Windows Clients.

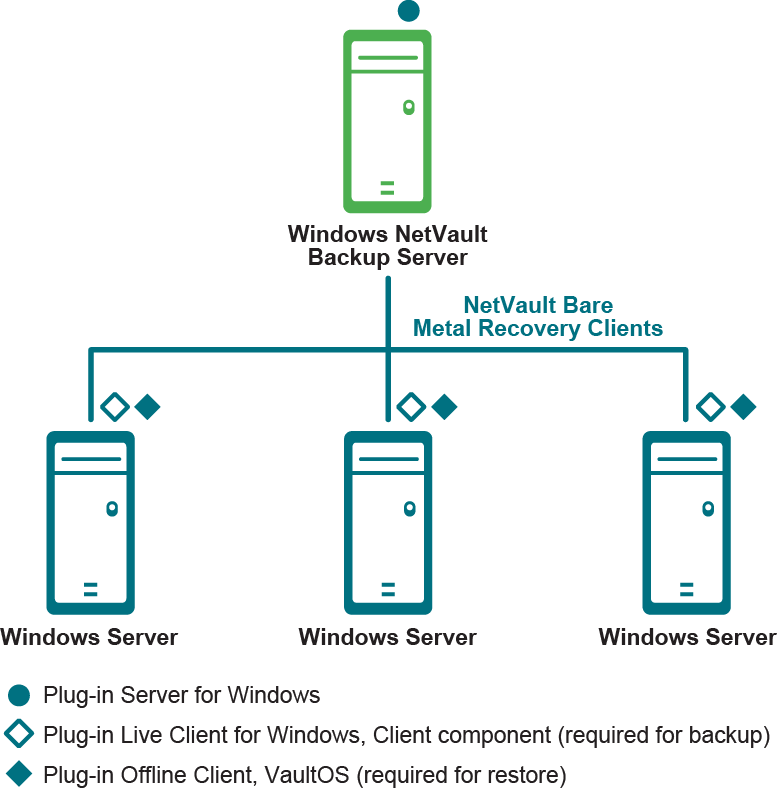

Figure 3. NetVault Bare Metal Recovery Client for Windows with Windows-based server

For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Windows.

Plug-in Live Client for Windows with Linux-based NetVault Backup Server deployment

This scenario is deployed when you want to perform online or hot backups of Windows Clients and you have deployed a Linux-based NetVault Backup Server.

The Plug-in Server for Linux component is installed on the Linux-based NetVault Backup Server and the Plug-in Live Client for Windows is installed on each Windows Client that you want to protect with online or hot backups.

In this scenario, Plug-in Offline Client is used to perform the recovery of the Windows Clients.

Figure 4. NetVault Bare Metal Recovery Client for Windows with Linux-based server

For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Windows.

Plug-in Live Client for Linux with Linux-based NetVault Backup Server deployment

This scenario is deployed when you want to perform online or hot backups of Linux Clients and you have deployed a Linux-based NetVault Backup Server.

The Plug-in Live Client for Linux, Linux Server Component is installed on the Linux-based NetVault Backup Server. The Plug-in Live Client for Linux, Linux Client Component is installed on each Linux Client that you want to protect with online or hot backups.

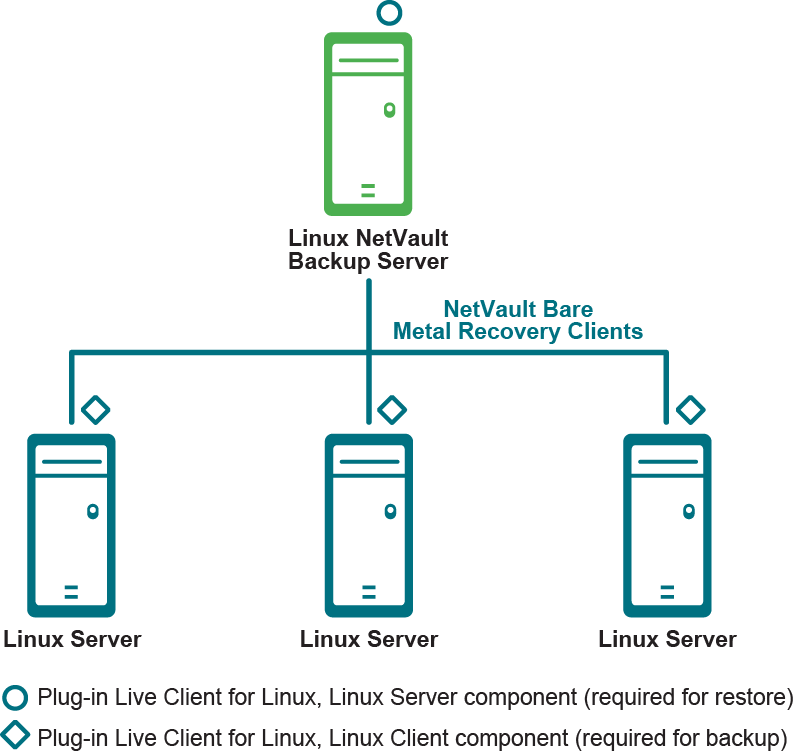

Figure 5. NetVault Bare Metal Recovery Client for Linux with Linux Server

For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Linux.

Plug-in Live Client for Linux with Windows-based NetVault Backup Server deployment

This scenario is deployed when you want to perform online or hot backups of Linux Clients and you have deployed a Windows-based NetVault Backup Server.

The Plug-in Live Client for Linux, Windows Server Component is installed on the Windows-based NetVault Backup Server and the Plug-in Live Client for Linux, Linux Client Component is installed on each Linux Client that you want to protect with online or hot backups.

Figure 6. NetVault Bare Metal Recovery Client for Linux with Windows-based server

For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Linux.
