Foglight Transaction Recorder 5.6.13 - Recorder User Guide

Overview of Foglight synthetic monitoring Use the Foglight Transaction Recorder Create and upload Foglight Transaction Recorder scripts View Foglight Transaction Recorder results Settings How Do I... Appendix: Best practices Appendix: Troubleshoot the Foglight Transaction Recorder Appendix: API for FTR Timer Usage

Results window

The Results Window displays real-time information while a script is being played. The data is displayed on three tabs:

•
Output
•
Results
•
Errors

Output

The Output Tab shows diagnostic and trace information reported by the application during the execution of the script.

Figure 37. Results window - Output tab

Results

The Results tab shows the status and results of each instruction during the execution of the script.

Figure 38. Results window - Results tab

•
Name—instruction name.
•
Status—indicator of whether an instruction is running, waiting to run, or completed.
•
Errors—sum of errors encountered during the execution of the instruction.
•
Files—number of files ran.
•
Bytes—sum of total network activity that occurred during the execution of the instruction.
•
Response Time—time required by the instruction to execute from a monitoring perspective.
•
Elapsed Time—time required by the instruction to execute, including overhead. This is typically greater than the response time.
Errors

The Errors tab displays error, warning, and informational messages encountered during the execution of a script.

Figure 39. Results window - Error tab

•
Name—name of the instruction that generated the error.
•
Error Level—level of the error being generated.
•
Error Code—error code in hexadecimal.
•
API Code—Application Programming Interface code in hexadecimal.
•
Message—message generated when error occurred.
•
API Extended Info—an extended explanation of the error.


Publish scripts to Foglight

*
NOTE: Before scripts can be published to the Foglight, the Foglight Agent Manager must be started.

After recording, Foglight Transaction Recorder scripts are published to Foglight for playback on the Transaction Player Agent.

To publish scripts to the Foglight Management Server:
1
From the Foglight Transaction Recorder, click Publish .
The Publish Script dialog appears.
2
Click Add Locations.
The Manage Locations Setting dialog appears.
3
Click Add .

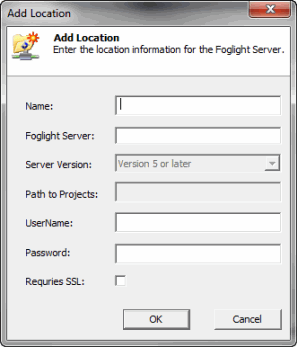

The Add Location dialog appears.
•
Name—the location name the Foglight Transaction Recorder uses.
•
Foglight Server—Foglight Server name, for example, abc10678.prod.corp:8080.
•
Server Version—Foglight Server version.
•
Path to Projects—the directory on the server where the scripts are stored (Foglight 4 and earlier versions only).
•
UserName—Foglight server user name.
*
NOTE: The following special characters are currently NOT supported in usernames and passwords: “:” and “@”.
•
Password—Foglight server password.
*
NOTE: The following special characters are currently NOT supported in usernames and passwords: “:” and “@”.
•
Requires SSL—select the check box to implement a Secure Sockets Layer.
4
Fill in the required fields.
5
Click OK.
6
Click OK.
7
In File Name, enter the desired file name.
8
Click Save.
The script publishes to the Foglight Server.
