Monitoring Tab

When navigating to the Cloud Manager dashboard for the first time, the Monitoring tab appears. The Monitoring tab allows you to select a monitoring object or a group of objects, such as projects, regions, instances groups, or VM instances, and review the data associated with your selection.

Figure 4. Monitoring dashboard

To access the Monitoring dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager, and then click Google Cloud.
The Cloud Manager dashboard opens
4
On the actions bar, click Monitoring.
5
Select the projects, regions, instances groups, or VM instances tile from the top left.

For more information, see the following topics:

•
Projects
•
Regions
•
Instance Groups
•
VM Instances

Projects

The Projects view shows the data collected for a specific or all Google Cloud projects.

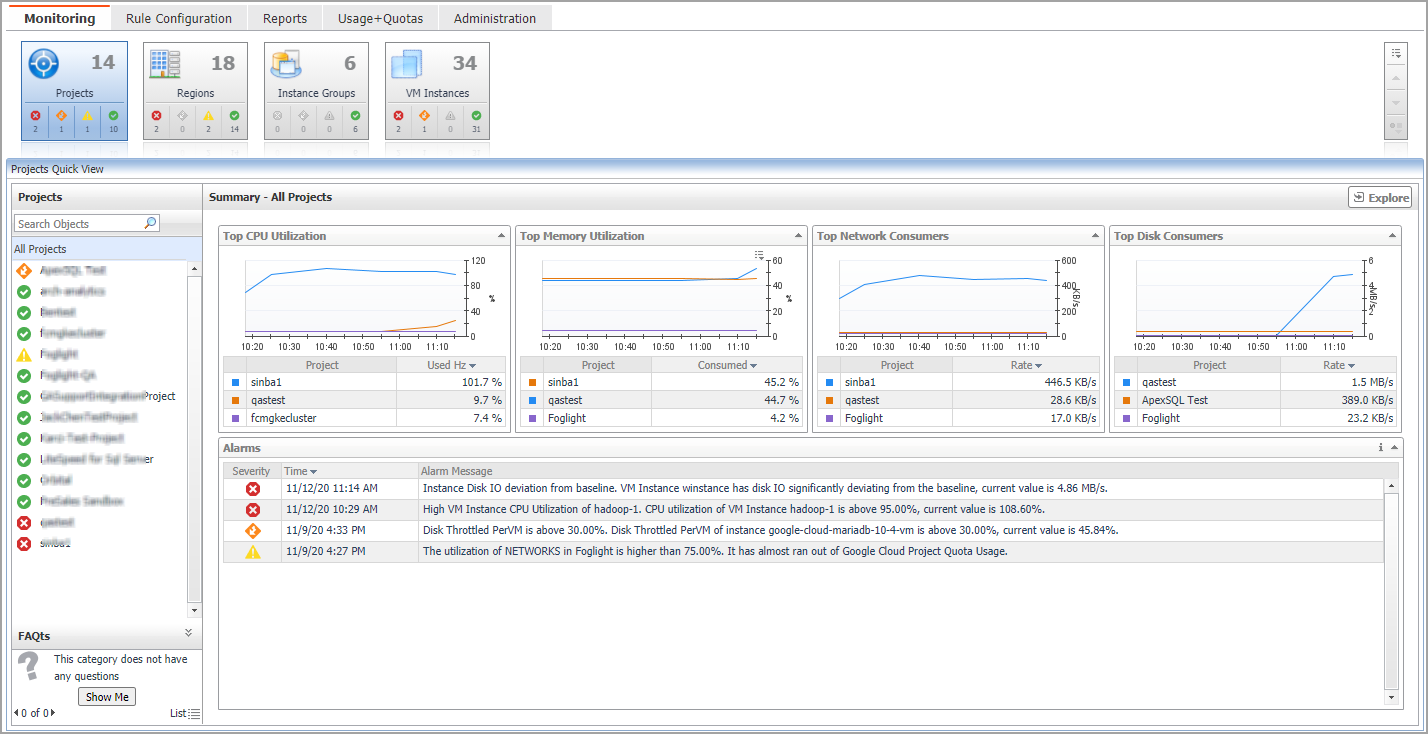

Figure 5. Projects view

The Projects Quick View displays the following features:

•
Projects tree view: Shows all the projects under the selected service. Use the Projects tree view to switch between All Projects view and a single project view.
•
Summary - All Projects view: Shows the projects with Top CPU Utilization, Top Memory Utilization, Top Network Consumers, and Top Disk Consumers.
•
A single Project view
•
Resource Information: Shows the basic information for the selected project, including Parent, Project Number, Default Network Tier, Default Service Account, XPN Project Status, and Life Cycle State.
•
Related Items: Shows the relation and hierarchy for the selected project.
•
Resource Utilization: Shows the CPU Utilization, Network Utilization, Memory Utilization, and Disk Utilization for the selected project.
•
Alarms: Shows all the alarms related to the selected project, or all the alarms related to the projects under the selected service.

Click Explore to open the Project Explorer view.

Project Explorer view

The Project Explorer view visually displays the detailed information of the project.

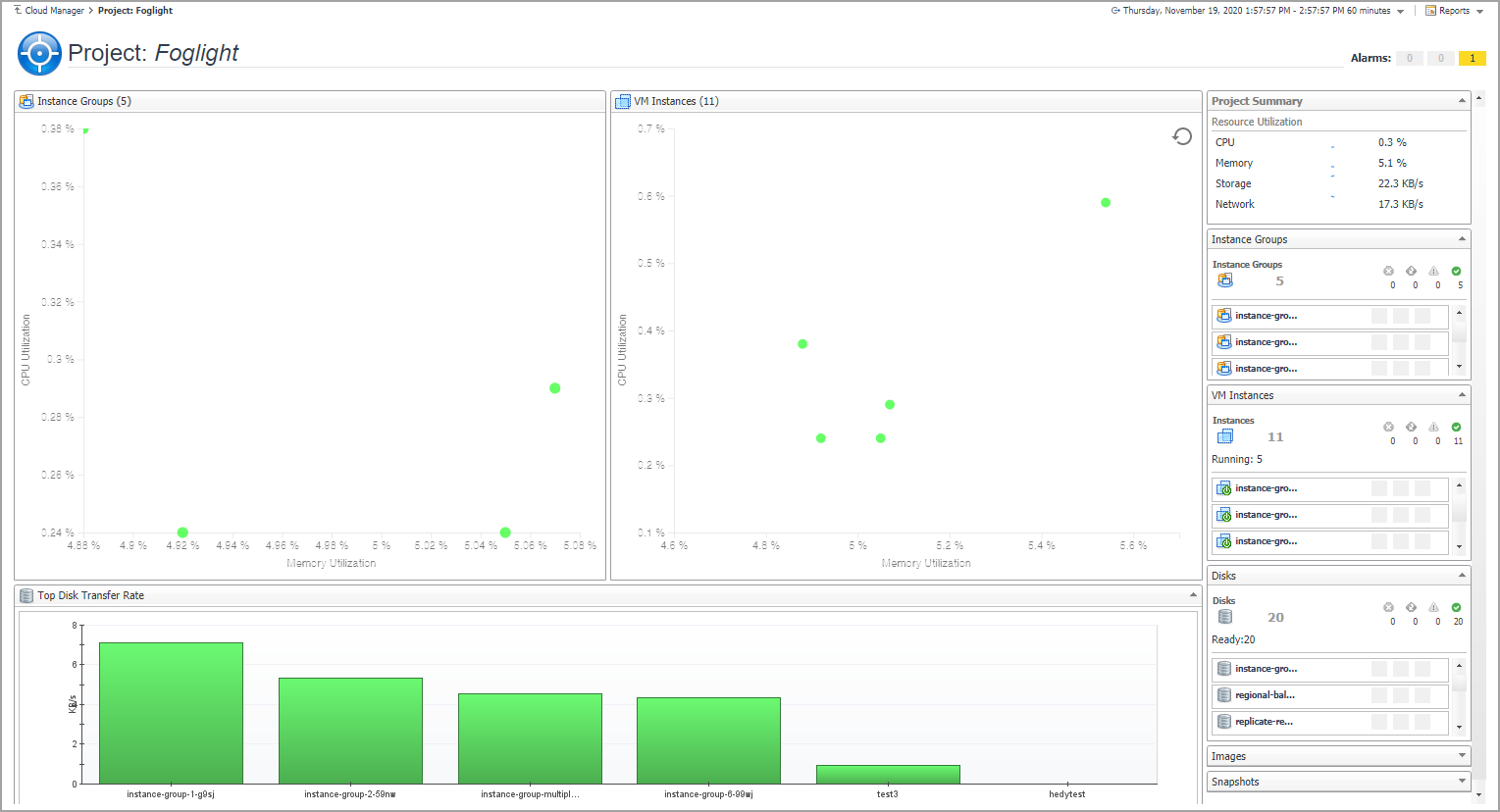

Figure 6. Projects Explorer view

Regions

The Regions view shows the data collected about a specific region or all Google Cloud regions.

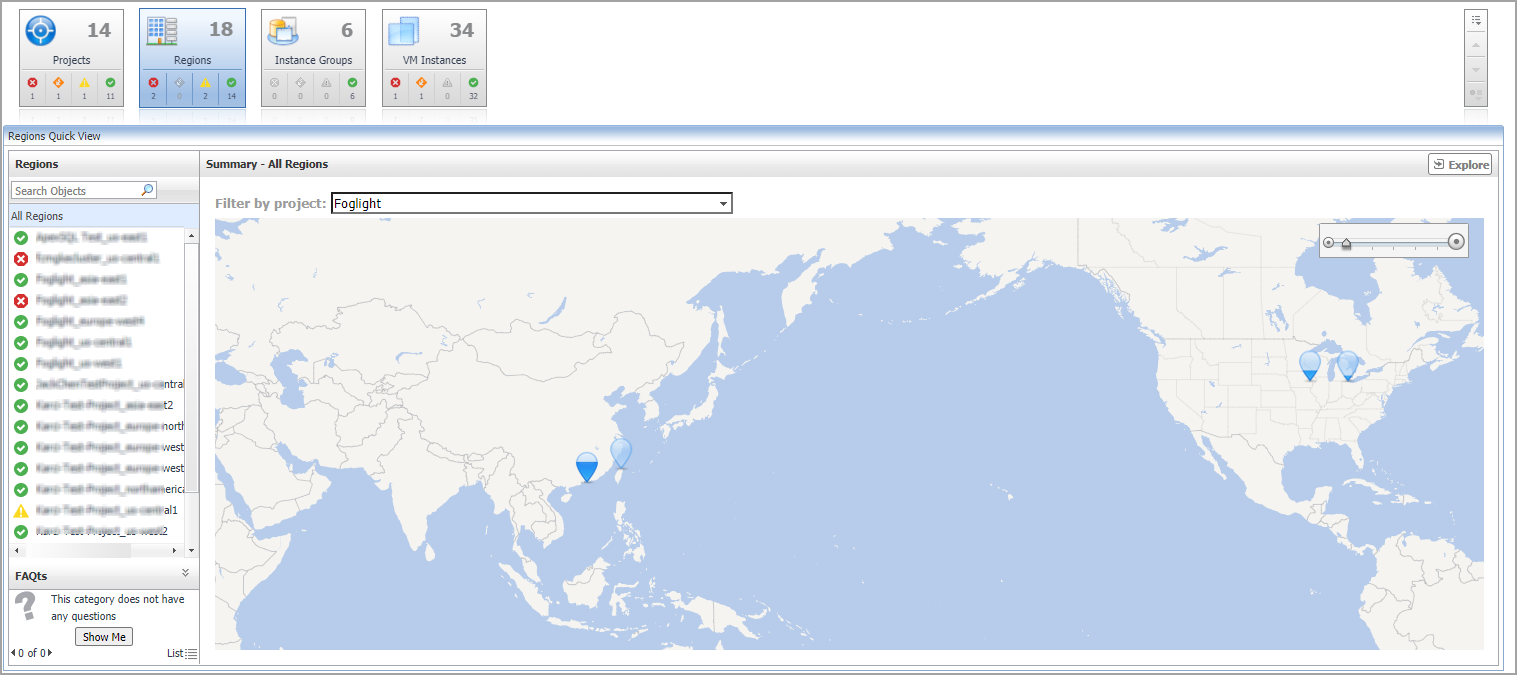

Figure 7. Regions view

The Regions Quick View displays the following features:

•
Regions tree view: Shows all the regions under the selected service. Use the Regions tree view to switch between All Regions view and a single region view.
•
Summary - All Regions view: Choose different projects by Filter by project and view the region where the VM instances belongs to.
•
A single Region Details view
•
Related Items: Shows the relation and hierarchy for the selected region.
•
VM Instances table: Shows the Status, Name, CPU Utilization, and Memory Utilization of the VM Instances for the selected region.
•
Alarms: Shows all the alarms related to the selected region, or all the alarms related to the regions under the selected service.

Click Explore to open the Region Explorer view.

Region Explorer view

The Region Explorer view visually displays the detailed information of the region.

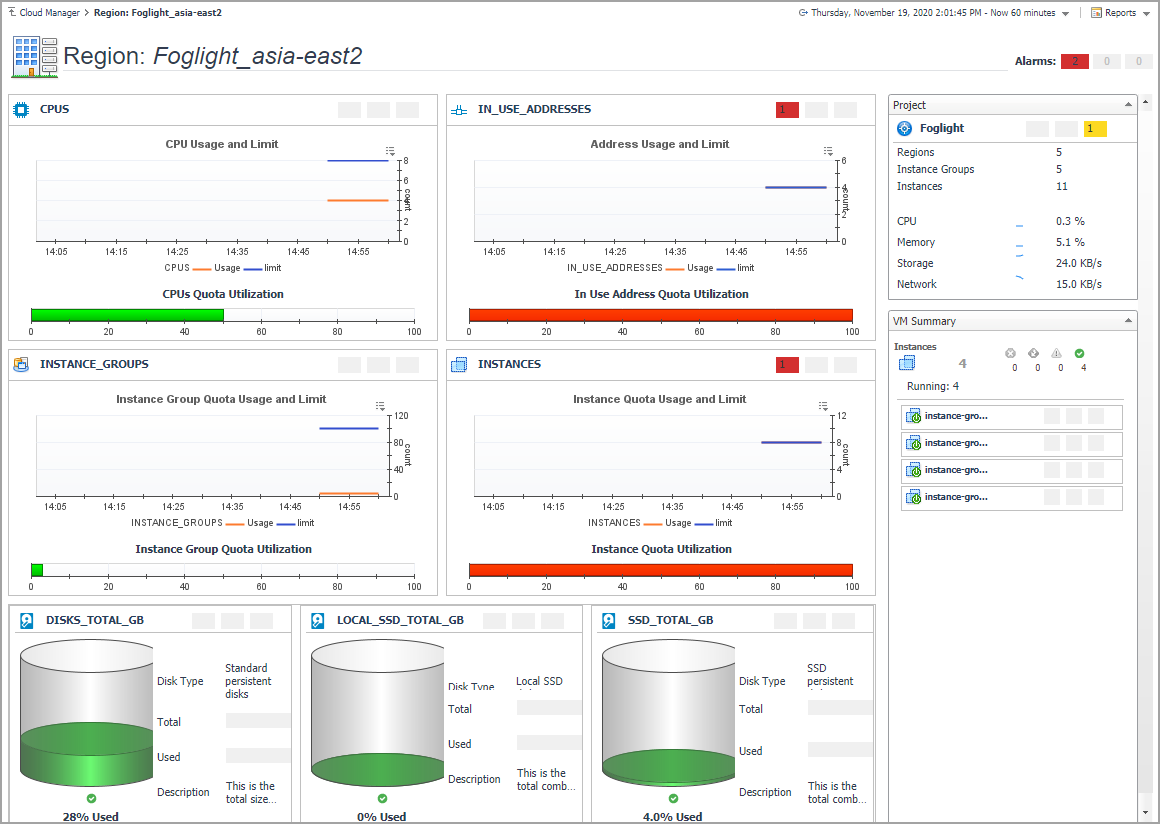

Figure 8. Region Explorer view

Instance Groups

The Instance Groups view shows the data collected for a specific or all Google Cloud instance groups.

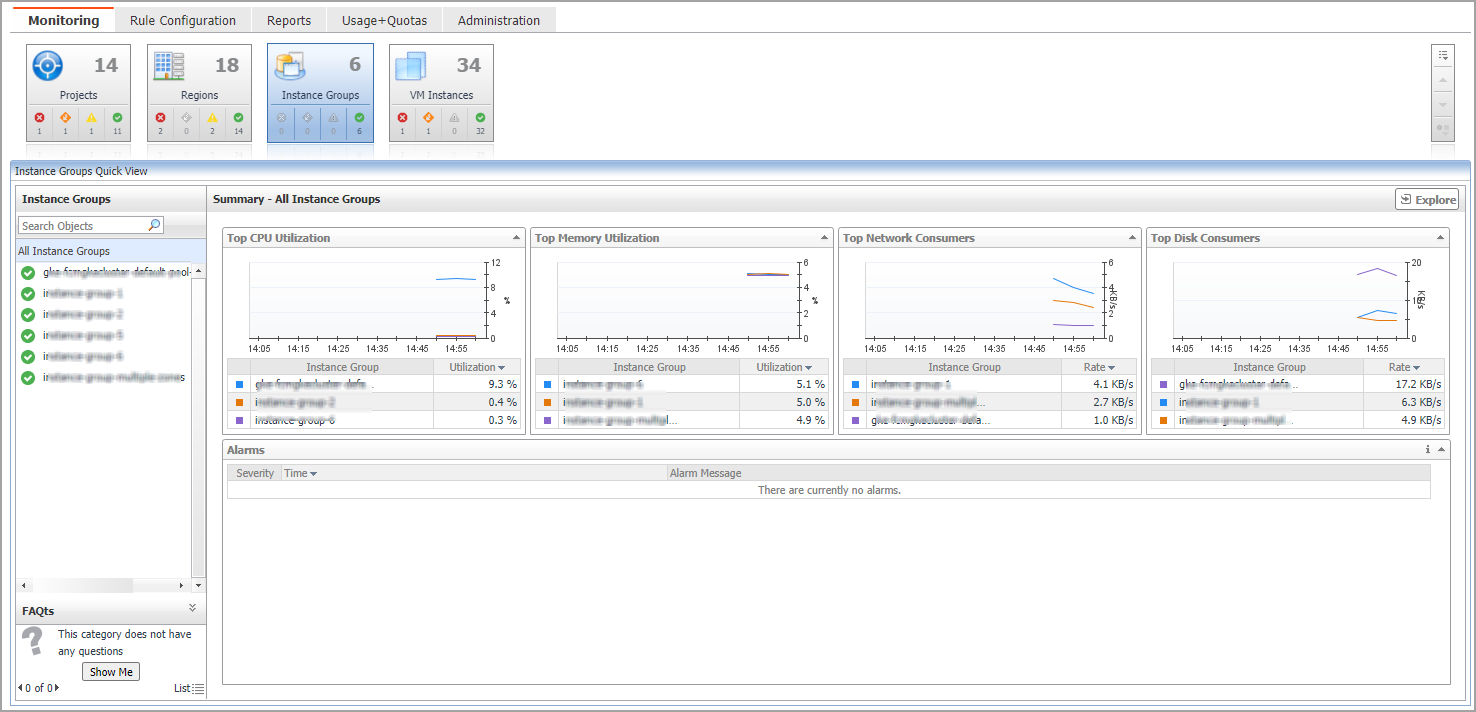

Figure 9. Instance Groups view

The Instance Groups Quick View displays the following features:

•
Instance Groups tree view: Shows all the instance groups under the selected service. Use the Instance Groups tree view to switch between All Instance Groups view and a single Instance Group view.
•
Summary - All Instance Groups view: Shows the instance groups with Top CPU Utilization, Top Memory Utilization, Top Network Consumers, and Top Disk Consumers.
•
A single Instance Group Summary view
•
Instance Group Information: Shows the basic information for the selected instance group, including Project name, Region, Creation time, Instance Template, Is Managed, and Instance Count.
•
Related Items: Shows the relation and hierarchy for the selected instance group.
•
Resource Utilization: Shows the CPU Utilization, Network I/O, Memory Utilization, and Disk I/O for the selected instance group.
•
Alarms: Shows all the alarms related to the selected instance group, or all the alarms related to the instance groups under the selected service.

Click Explore to open the Instance Group Explorer view.

Instance Group Explorer view

The Instance Group Explorer view visually displays the detailed information of the instance group.

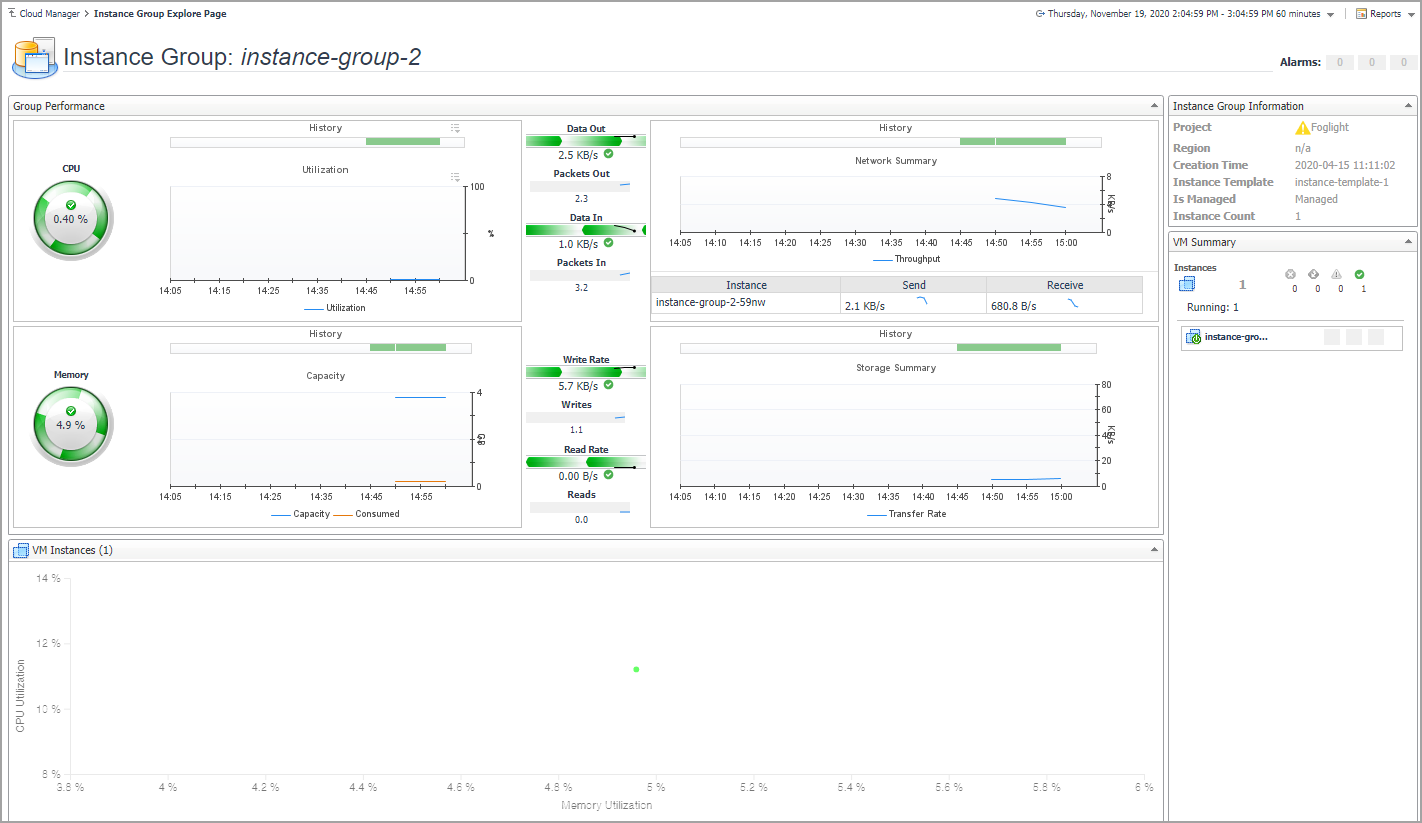

Figure 10. Instance Group Explorer view
