Foglight Hybrid Cloud Manager 6.1.0 - User Guide (for Google environments)

Adding a custom rule

The Rule Configuration dashboard shows a list of existing rules and a set of rule management commands at the top of the list. Use the Add Custom Rule button to create a new rule as needed.

To customize a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
Click Add Custom Rule on the Rules table.
The Create Custom Rule dialog box opens.
6
In the Create Custom Rule dialog box, specify the following:
a
Alarm Type:
a
Type the name of custom rule in the Name field.
b
Select an Object Type, and then select a metric from the Metric drop-down list. The value of Metric varies from the Object Type.
c
Select either Threshold or % Change, and then specify the following values as needed.
•
Threshold: Specify Condition, Time Period, Severity, and then specify whether or not fire actions if the specified data attempts are reached. The value of Condition cannot be negative.
•
% Change: Specify Condition, Time Period, and Severity Label. The value of Condition cannot be negative.
b
(Optional) Scope: Choose the objects to which you want to apply this rule. If no objects are selected in this step, the custom rule will apply to all objects which type is the Object Type specified in Step 6.
c
(Optional) Notifications: Click Add New, then the Edit Notification Config - Dialog box appears. In this dialog box, type the E-mail Address and Description as needed, and then click Add.
7
Click Save.
The Rules table refreshes automatically to show the newly added rule.

Removing custom rule(s)

The Rule Configuration dashboard shows a list of existing rules and a set of rule management commands at the top of the list. Use the Remove Custom Rule button to delete existing custom rule(s) as needed.

To remove a custom rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
Click Remove Custom Rule on the Rules table.
The Remove dialog box opens.
6
Click Yes.
The Rules table refreshes automatically and removes the selected rule.

Reports Tab

Foglight Hybrid Cloud Manager for Google Cloud includes a report generation ability. This allows you to create reports using a set of predefined templates to report on the various aspects of your cloud environment. Foglight Hybrid Cloud Manager for Google Cloud includes a collection of predefined report templates.

You can generate, copy, and edit reports using the Reports tab on the Reports dashboard, or alternatively the Reports dashboard included with the Management Server.

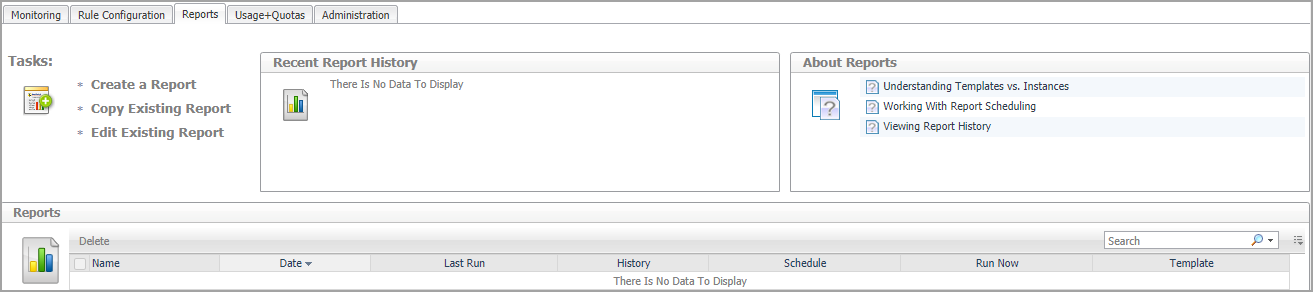

Figure 14. Report dashboard

To access the Reports dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Reports in the actions bar.

For complete information about this tab, see the Managing Capacity in Virtual Environments User Guide. For more information about the Reports dashboard, see the Foglight User Help.

Available report templates

The following templates are available with Foglight Hybrid Cloud Manager for Google Cloud Cloud.

Table 1. Report templates
Report Template Name
This template can be used to generate a report that…

Cost-All Google Billing Accounts Summary Report

Summarizes the cost for all the Google Cloud Billing Accounts in the monitored environment.

Google Cloud Region Summary Report

Summarizes all regions at under your account, so that you could know all regions' performance.

Instance Group Performance by Service - Detail

Summarizes the detailed instance group performance by service.

Instance Performance by Service - Detail

Summarizes the instance performance by service.

Project Performance by Service - Detail

Summarizes the project performance by service.

Project Summary Report

Summarizes the projects in the monitored environment.

VM Instance Performance Report

Summarizes the VM instance performance.
