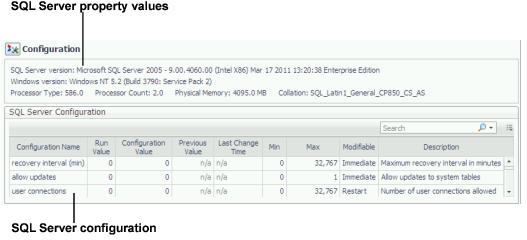

Reviewing SQL Server Configuration

The SQL Server Configuration panel allows carrying out the following tasks:

Viewing the Server Property Values

The Server Property Values panel contains information about the server properties of the monitored SQL Server instance.

Version number of the currently monitored SQL Server instance.

The full version number of the Windows operating system installed on the computer that runs the SQL Server instance (including build and service pack).

The processor type (usually a vendor code).

The number of processors on the computer on which Windows is installed.

The amount of actual RAM in the monitored host.

Default collation for databases on the SQL Server instance. Unless another collation is specified when creating a new database, this collation will apply to all of the instance’s databases.

Viewing the SQL Server Configuration Options

The SQL Server Configuration table displays the configuration parameters for the currently monitored SQL Server, as listed in the table below. These parameters often affect the system’s performance. Therefore, reviewing the values displayed in this table and modifying them, if needed, may successfully resolve performance issues.

To create a custom filter for this table, use the options accessible by clicking the button at the table’s upper right side. For details, see Components Shared by all Foglight for SQL Server Screens .

The name of the specified configuration option.

The value currently used by the configuration option.

The value to which the configuration option is set. Depending on the Modifiable setting, changing the Config value can be implemented either immediately or only after restarting SQL Server.

The configuration option’s value before the last change took place.

The time the most recent change took place.

The minimum permitted value for the configuration option.

The maximum permitted value for the configuration option.

Indicates when changes to the option take effect.

The following options are possible:

Immediate: changes to these options take effect immediately.
Restart: changes to these options take effect after SQL Server is stopped and restarted.
Never: these options cannot be modified.

Description of the specified configuration option.

Viewing User-defined Performance Counters and Collections

The User-defined drilldown displays Performance Counters and Collections, plotted over the specified time range.

The sections of this panel allow carrying out the tasks detailed in the following topics:
