Foglight for Infrastructure 5.9.7 - Infrastructure Utilities User Guide

Monitoring Web transactions
Configuring credentials for Web sites requiring user or proxy authentication Exploring your collection of monitored Web sites Investigating the performance of Web transactions and monitoring locations Exploring Web Monitor services Generating reports Configuring Web Monitor agent properties View reference
Monitoring network devices

View reference

Foglight displays monitoring data in views that group, format, and display data. The main types are described below.

Dashboards are top-level views that contain lower-level views. The dashboards supplied with Foglight, as well as those created by users, are accessible from the navigation panel.

Lower-level views in Foglight can be added to dashboards or can be accessed by drilling down from a dashboard. They receive and display data directly from the Management Server or from other views. Some views filter or select data that appears in other views in the same dashboard. Some are tree views with expandable nodes for selecting servers, applications, or data.

Foglight Net Monitor ships with several dashboards that allow you to monitor and configure your monitored environment. Each of these dashboards contains a number of views. This section describes these views in more detail. For more information about the available dashboards, see Managing monitored network devices and Investigating the performance of network devices.

This cartridge includes the following groups of views:

•
Net Monitor Devices Management views
•
Net Monitor Performance Browser views

Net Monitor Devices Management views

The Devices Management dashboard contains the following views:

•
Agent Alarms view
•
Devices Management table

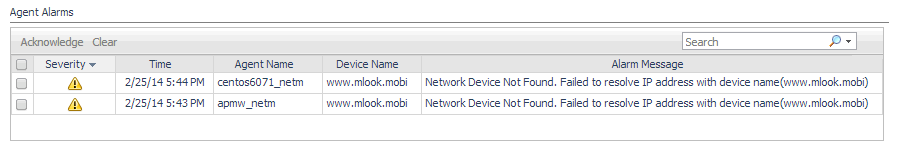

Agent Alarms view

Purpose

The Agent Alarms view displays the alarms generated against the existing agents.

How to get here

On the Devices Management dashboard, this view appears just below the Devices Management table.

Description of the View

Table 3. Agent Alarms view
Description

Lists the alarms generated against the monitored locations.

NOTE: To acknowledge or clear one or more alarms appearing in this table, select them and click Acknowledge or Clear, as required. For more information about alarms in Foglight, see the Foglight User Guide.
Data displayed
•
Ack’ed. Indicates if the alarm is acknowledged: true or false.
•
Device Name. The name of the device against which the alarm is generated, as configured on the Devices Management dashboard. For more information, see Managing monitored network devices.
•
Severity. Indicates the alarm severity: Warning , Critical , or Fatal .
•
Time. The date and time when the alarm is generated.
•
Alarm Message. The alarm message.
Where to go next

Drill down on:

•

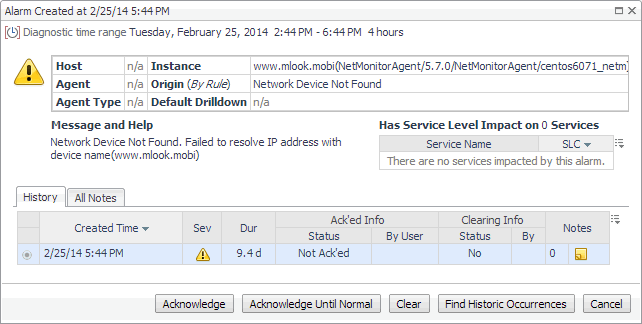

Any row. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

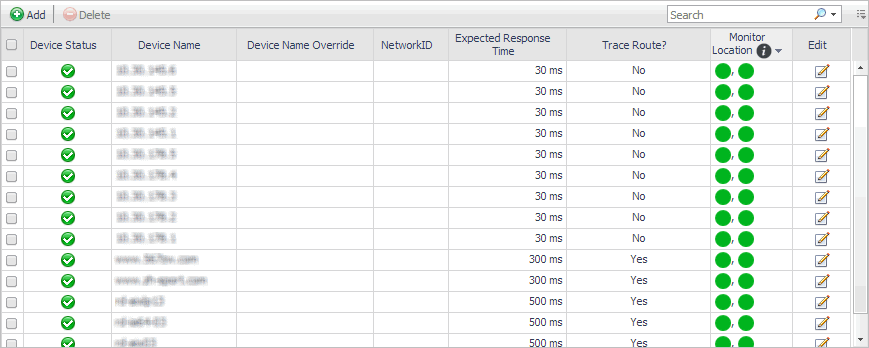

Devices Management table

Purpose

The Devices Management view displays the monitored network devices.

How to get here

On the Devices Management dashboard, this view appears just above the Agent Alarms view.

Description of the View

Table 4. Devices Management view
Data displayed
•
Device Name Override. The device name override, if one is specified.
•
Device Name. The name of the monitored device.
•
Device Status. The state of the highest severity alarm raised against the network device: Warning , Critical , or Fatal .
•
Expected Response Time. The expected round-trip response time between the host on which the Net Monitor Agent is installed and the network device.
•
Monitor Location. A color-coded indicator of the data collection state for each location from which this network device is monitored. Green indicates Normal, yellow Warning, orange Critical, and red the Fatal state.
•
NetworkID. The ID of the private network to which the network device belongs, if applicable.
•
Trace Route?. Indicates if the route from the monitoring agent to the network device is traced.
