The lists displayed throughout Foglight for Exchange allow you to define the sort criteria and order, hide columns, and filter content based on user-defined search criteria:

Sorting content

Some views in the Foglight for Exchange dashboards contain sortable lists. An example of a sortable list is the Servers In This Site view on the Exchange Explorer dashboard.

An arrow in the column heading identifies the sort criteria and order, ascending or descending, being used to display information.

Hiding columns

The Foglight for Exchange lists display a default set of columns; however, you can customize the content of the lists by hiding columns.

Select Apply to display the list displaying only the columns that are currently selected in the Show Columns dialog.

Filtering content

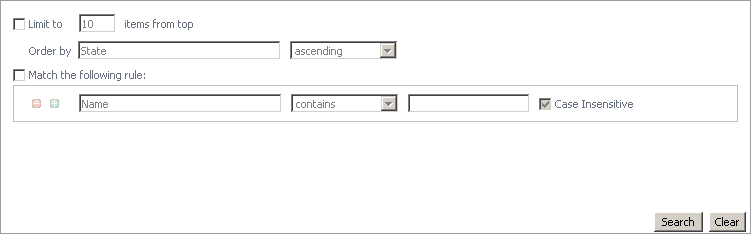

Many of the lists displayed in the Foglight for Exchange dashboards and views allow you to filter the information displayed using the search controls at the top of the list. You can either conduct a search on all of the columns in the list or specify the columns to be searched.

The Order by field contains the column heading currently selected as the sort criteria. To change the sort criteria, click in the Order by field and select the column heading to be used. Use the arrow control to define the sort order: ascending or descending.
To define the search criteria, select the Match the following rule check box and specify the following information:
The Case Insensitive check box is selected by default and will find matches regardless of case. For a case-sensitive search, clear this check box.
Once you have entered your search criteria, select Search to close the dialog and conduct the search.
