Log Drill-down

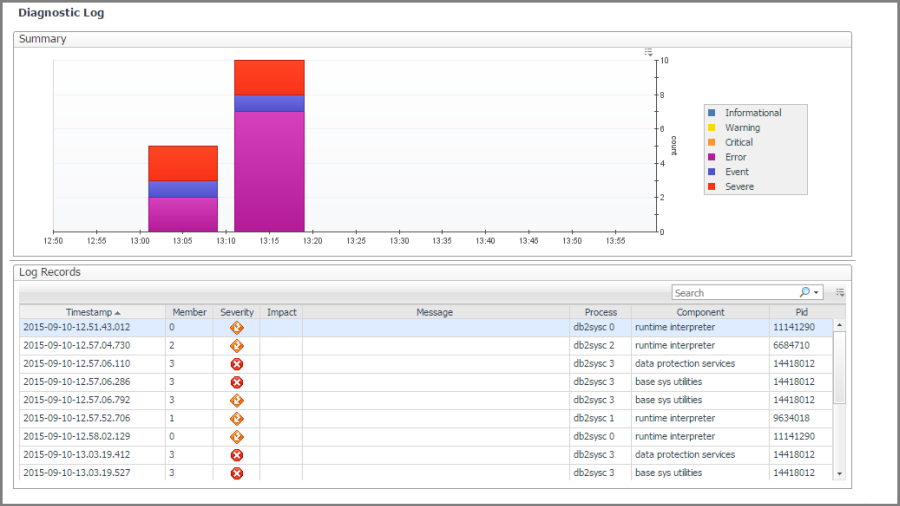

The Log drill-down provides a diagnostic graph and log of database log activity. Records displayed are those configured in the Diagnostic Log administration screen.

On the Database home page toolbar, click Log.

This pane provides the following views:

Displays a graphical history of the informational, warning, critical, error and other counts graphed over a period.

Displays information log table messages in tabular form.

Timestamp. The exact time and date when the message log was created.
Member. Member where the message came from.
MSGNUM. Message number
Severity. Severity of the message.
Type. Message type.
Message. Text of the message.
Pid. Process ID.
Process. Which DB2 process triggered the message.
TID. Timestamp identification number.
Application ID. Identifies the application from which the message originated.

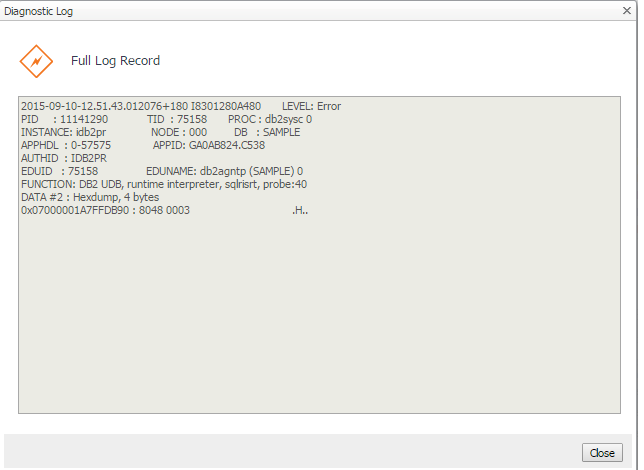

Selecting any record will open a pop-up with the full log record.

Configuration Drill-down

The Configuration drill-down provides the list of initialization parameters with their current values and other pertinent information, sorted in alphabetical order.

On the Database home page toolbar, click Configuration.

This pane provides the Initialization Parameters view.

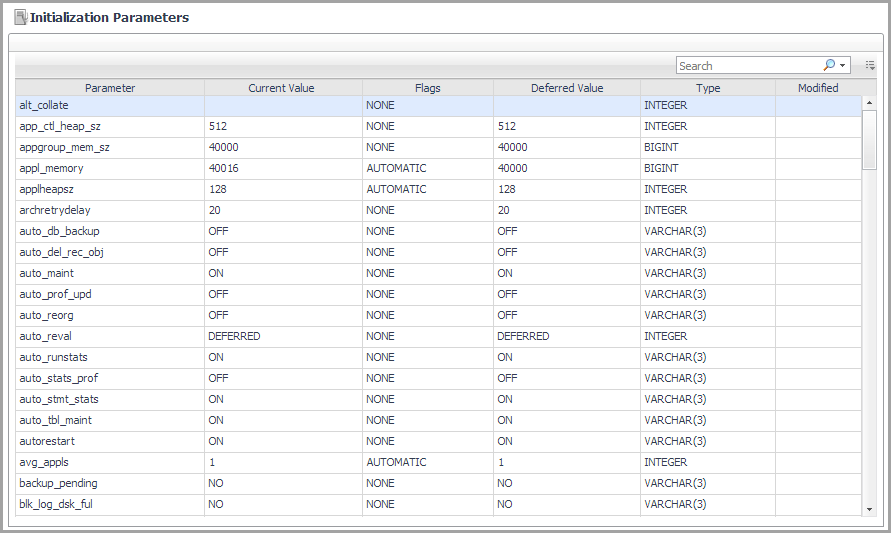

Displays the list of initialization parameters with their current values and other pertinent information, sorted in alphabetical order.

Parameter. The initialization parameter name.
Current Value. The current value of the initialization parameter.
Flags. Whether the initialization parameter is flagged as AUTOMATIC.
Deferred Value. The deferred value of the initialization parameter. If a non-AUTOMATIC parameter was changed and the database has not yet been recycled, the deferred value may be different than the current value.
Type. The type of value for the initialization parameter.
Modified. Whether the initialization parameter has been modified.

Clicking any table cell displays the change history for the corresponding initialization parameter.

Member Overview home page

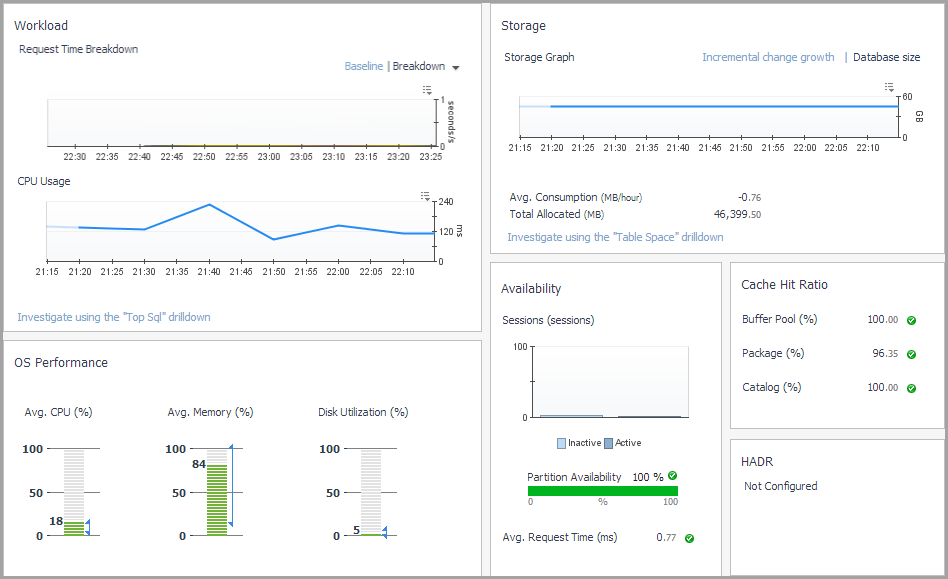

This home page provides metrics on the state of the member over the course of the selected time range. Pop-ups provide graphs that show you how the member is performing and whether there are any critical areas that need to be addressed.

The metrics provided on this home page are different for DB2 v9.7.0.1 and later than they are for DB2 databases earlier than v9.7.0.1. For more information, see below sections.

How to Get Here

1
From the Database home page, click Whole Database and select the member you want.
2
Click Summary and select Overview.

The following summary and drill-downs pages are provided:

SQL Performance (links to description under Database home page)
Activity Drill-downs (links to description under Database home page)
Memory Drill-downs (links to description under Database home page)
Storage Drill-downs (links to description under Database home page)
Log Drill-down (links to description under Database home page)
Configuration Drill-down (links to description under Database home page)
