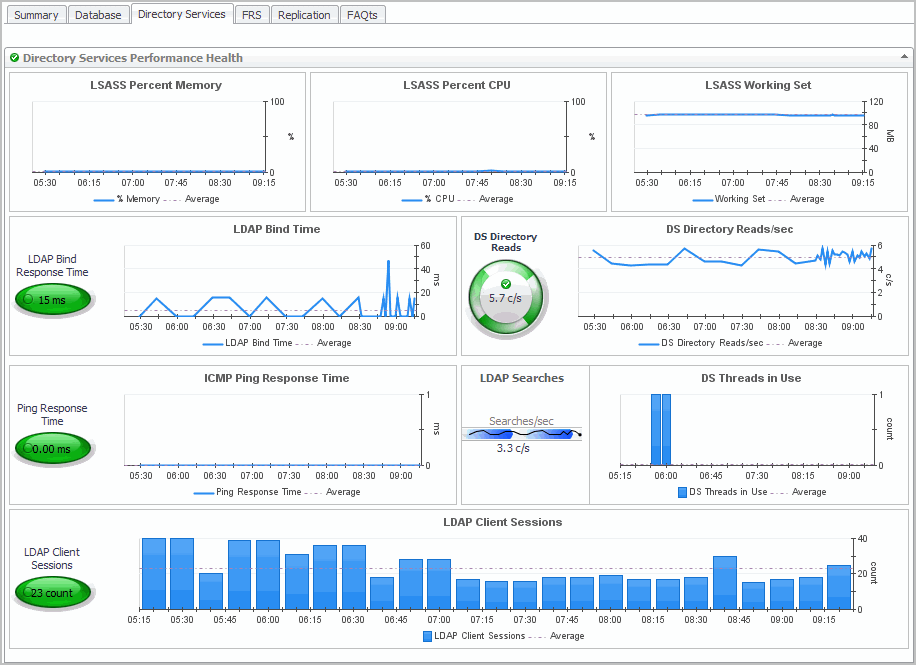

Domain Controller Directory Services view

The Domain Controller Directory Services view displays performance health information about the selected DC’s directory service processes.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Directory Services navigation tab.

This view is made up of the following embedded views:

Domain Controller DFS-R view

The Domain Controller DFS-R view displays performance health information about the selected DC’s Distributed File System Replication (DFSR) service.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the DFS-R navigation tab.

This view is made up of the following embedded views:

Domain Controller FRS view

The Domain Controller FRS view displays performance health information about the selected DC’s file replication service.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the FRS navigation tab.

This view is made up of the following embedded view:

Domain Controller Replication view

The Domain Controller Replication view displays performance health information about the selected DC’s replication activity.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Replication navigation tab.

This view is made up of the following embedded views:
