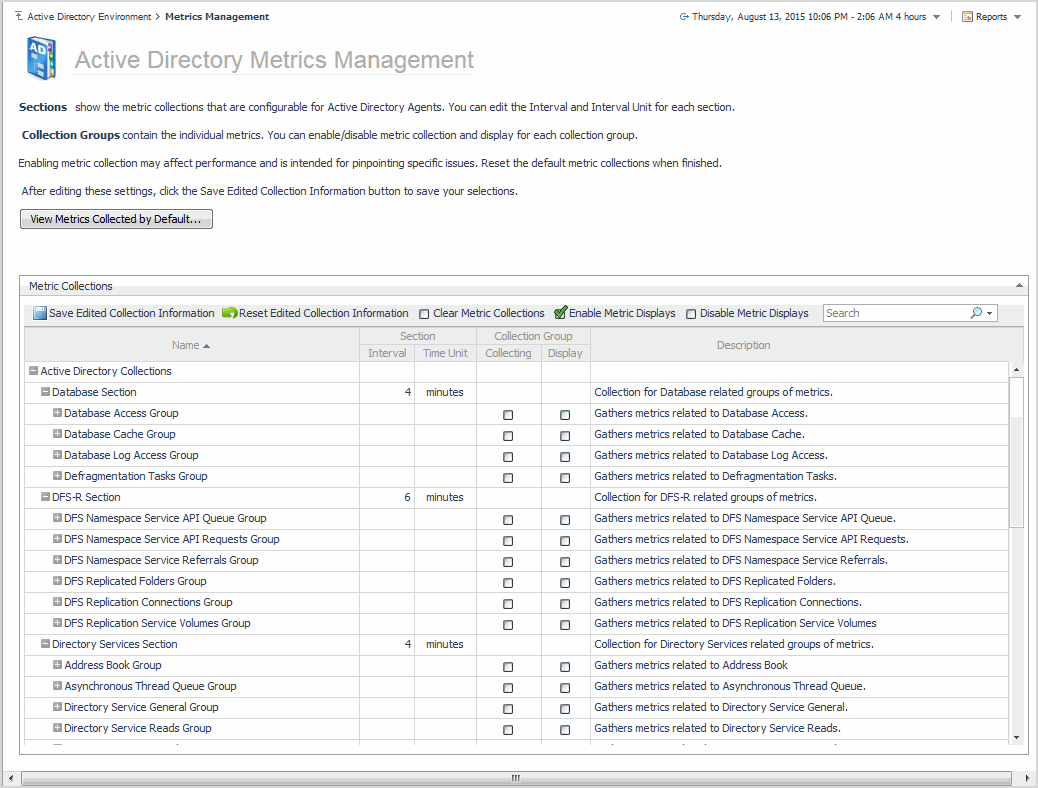

Active Directory Metrics Management dashboard

The Active Directory Metrics Management dashboard lists the metrics that can be optionally collected by an Active Directory® agent. Using this dashboard, you can enable these metrics to pinpoint specific performance issues or to modify the interval to be used to collect data.

The metrics displayed on the Active Directory Metrics Management dashboard are divided into the following components:

The Active Directory Metrics Management dashboard contains the following information for each collection metric.

Name

Lists the Active Directory Collections and when expanded, the sections, collection groups and individual metrics included in each collection group.

To expand the Active Directory Collections to display the sections, collection groups and individual metrics, click the expansion box to the far left of the collection, section or collection group name.

Section

Displays the interval and time unit to be used to collect data. By default, the interval and time unit displayed are the default settings defined in the defaultSchedule.

Collection Group

Indicates whether the metrics in the collection group are to be collected and/or displayed.

Description

Displays a brief description of each section, collection group, and individual metric.

Use the buttons on this dashboard as described in the following table.

Displays the Active Directory Default Metrics dialog which contains a list of all the metrics being collected and displayed by default.

Rolls back unsaved changes made to any settings on the Metrics Management page to their original values.

Saves changes made to any setting on the Metrics Management page.

Resets the collection group settings (Collecting and Display) for the metrics in all manually enabled collection groups.

Enables the display of the metrics in all manually enabled collection groups.

Disables the display of the metrics in all manually enabled collection groups.

Use the search control to filter the information displayed on the Metrics Management dashboard.

Managing Active Directory metrics

You can only use the Metrics Management dashboard to enable or disable the collection and/or display of optional performance metrics. However, depending on the data collection schedule being used to collect metrics, you can use the Agent Status (agent properties page), Agent Properties or Metrics Management dashboard to modify a collection interval.

For details, see these topics:

Using the Metrics Management dashboard

Using the Active Directory Metrics Management dashboard, you can modify the interval and time unit for metric sections, enable/disable the collection of optional metrics in collection groups, or specify to display the collected metrics in a collection group.

To display this dashboard, select Active Directory Environment > Administration tab > Metrics Management from the dashboards listed in the navigation pane.

2
To change the interval, select the value displayed in the Interval column. Enter the new value in the dialog and select Update.
3
To change the time unit, select the value displayed in the Time Unit column. Select the new time unit (days, hours or minutes) in the dialog and select Update.
4
Select the Save Edited Collection Information toolbar button to save your selections.
2
Click the check box in the corresponding Collection Group | Collecting cell.
A green check mark is displayed in the Collection Group | Collecting column back on the Metrics Management page.
4
Click the check box in the corresponding Collection Group | Display column.
A green check mark is displayed in the Collection Group | Display column back on the Metrics Management page.
6
Select the Save Edited Collection Information toolbar button to save your selections.
7
On the Save dialog, click Save to confirm that you want to save your selection.
4
Select the Save Edited Collection Information toolbar button to save your selections.
5
On the Save dialog, click Save to confirm that you want disable the selected metric collection.
1

Using the Agent Status and Agent Properties dashboards

On the agent’s properties page, you can use the Data Collection Scheduler setting to define the data collection schedule to be used or to modify a data collection interval.

To display an agent’s properties page, use one of the following methods:

From the navigation panel, navigate to Dashboards > Administration > Agents > Agent Status. On the Agent Status dashboard, select an agent from the list and click Edit Properties. The Agent Status dashboard refreshes, showing the current properties for the selected agent instance.
From the navigation panel, navigate to Dashboards > Administration > Agents > Agent Properties. On the Agent Properties dashboard, select an agent. The Properties panel is displayed, showing the current properties for the selected agent instance.

For more information on using these dashboards to edit an agent’s properties, see the Foglight Administration and Configuration Guide or online help.
