Domain Controller views

A Domain Controller (DC) is a server that is running a version of the Windows Server® operating system and has Active Directory® (Windows Server 2003) or Active Directory® Domain Services (Windows Server® 2008 R2 and Windows Server 2008) installed. The DC is tasked with managing a replica of an Active Directory domain.

The following views are available to monitor the health of your Active Directory domain controllers:

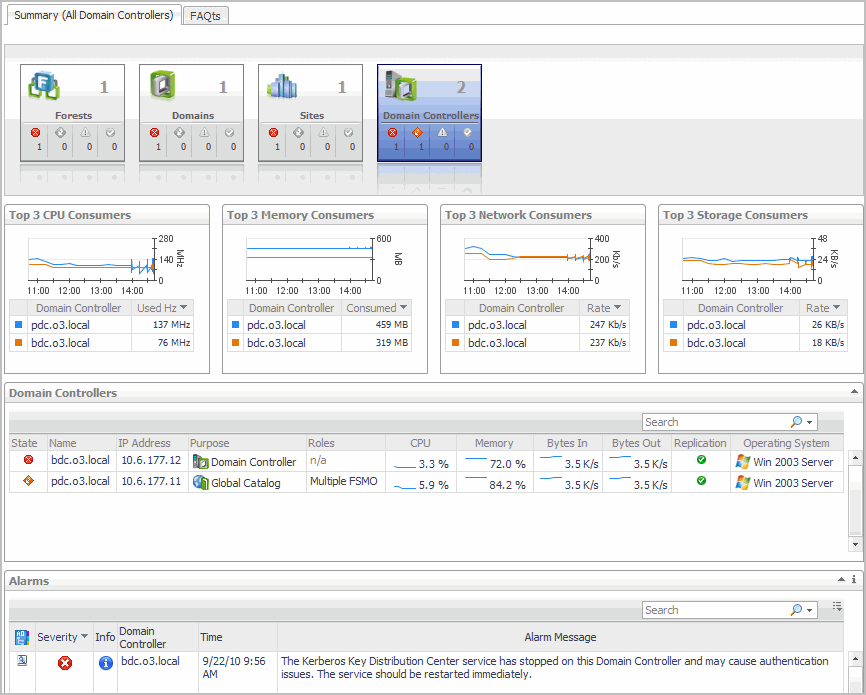

Domain Controllers Environment Summary (All DCs) view

By default, the Domain Controllers Environment Summary (All DCs) view displays a domain controller tile for each DC in your Active Directory® environment and provides summary data about the different roles performed by each DC. It also includes an alarm indicator for each of these roles.

A domain controller tile displays the following information:

NOTE: If you would prefer to view a list of DCs, instead of tiles for each DC, select Toggle View. You can then use the search controls to the right to filter your list of DCs.
1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.
2
From the Monitoring tab, select the Domain Controllers tile.

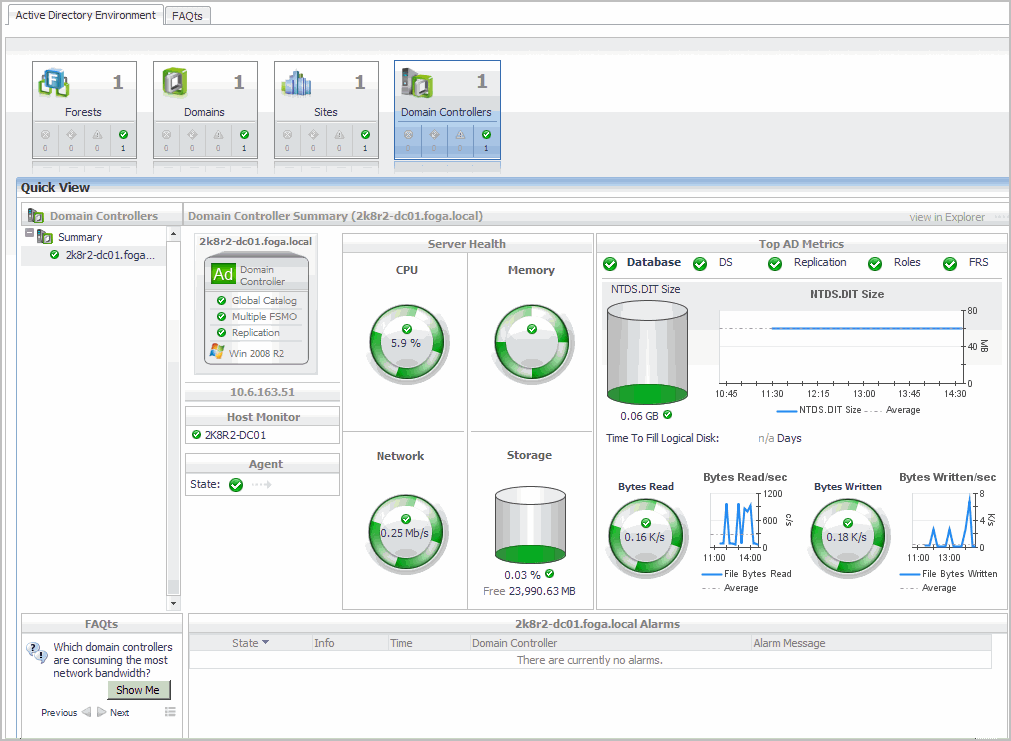

Domain Controller Environment Summary view

The Domain Controller Environment Summary view displays a domain controller tile for the selected DC and shows data relevant to that DC, the current alarm state for the DC, and the roles being performed by the DC.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.
2
From the Monitoring tab, select the Domain Controllers tile.

In addition to the domain controller tile, the following embedded views are displayed on the Domain Controller Summary:

Domain Controllers Explorer Summary (All DCs) view

The Domain Controllers Explorer Summary (All DCs) view displays more detailed resource metrics and information about all of the monitored DCs in your Active Directory® environment.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.

In addition to the current domain controller alarms, this view is made up of the following embedded views:
